Ceiling and wall attachment
Dr. Mach
Lamps and Engineering

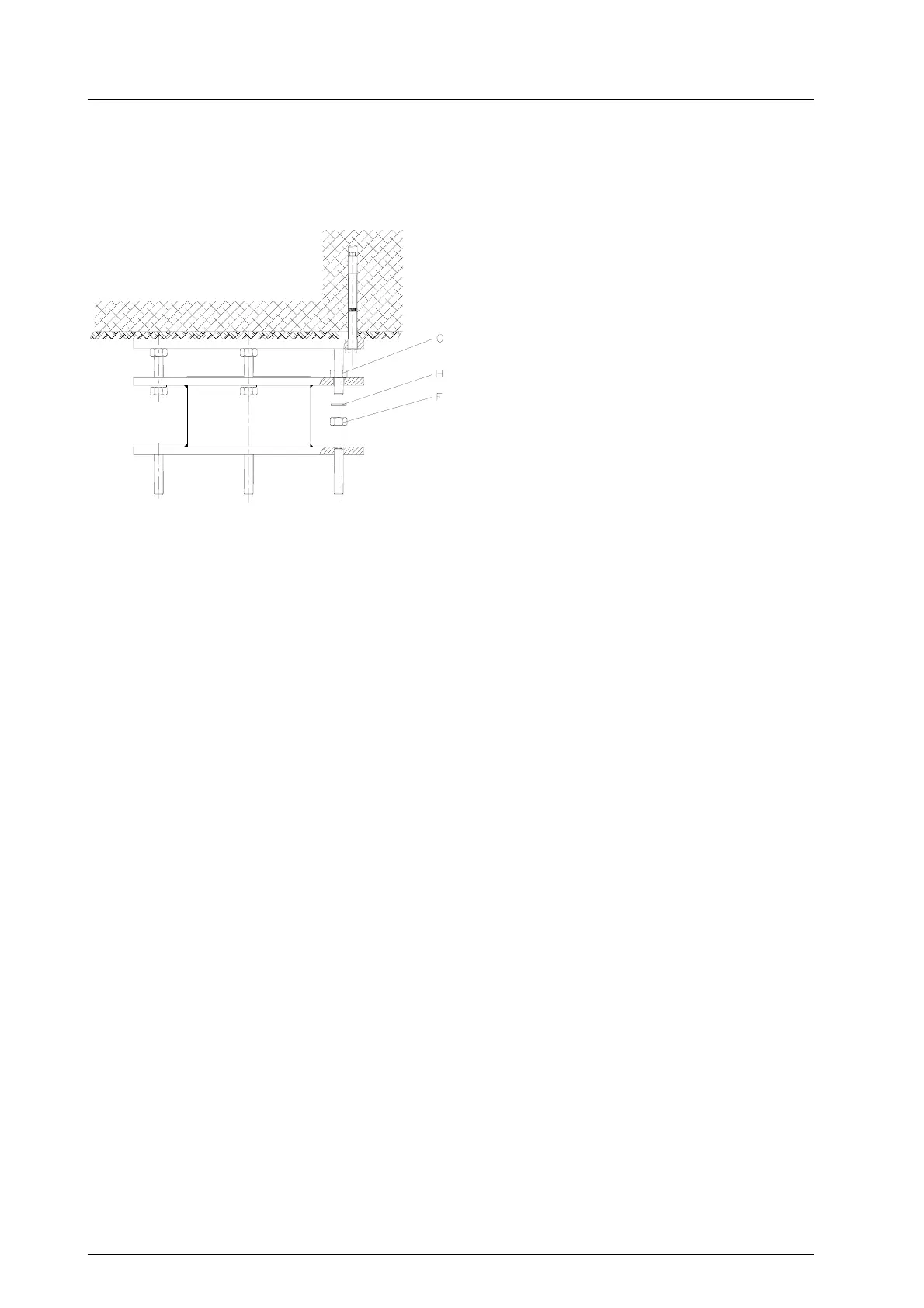

Type with ceiling anchorage ring and
intermediate flange
• Screw three nuts G (each 120°) to the plate of
the ceiling anchorage ring, the other three 1cm
away from the plate, unscrew nuts F.
• Position the intermediate flange on the
threaded bolts and adjust it to the required
height using three nuts F and washers H.
• Then position all six nuts G gently against the
intermediate flange from above.
• Screw on the remaining three nuts F with
washers H and tighten all six nuts equally
cross-wise with a torque wrench (25 Nm).
• Verify balance with a spirit-level.
For mounting the flange to the intermediate
flange proceed as described at the design with
ceiling anchorage ring.
59500001 Edition 06 11.03.2003 / Bak Page 14/48
