7.1.2 Mounting
Attention!
Danger of injury: If an incorrect segment is
used, the lamp / device may fall out of the
mounting and cause serious injury.
Use only original securing segments.
Note:
Maximum lamp / device weight: The lamps /
devices must not exceed the weight of the
mounted spring system. For details about the
spring system please refer to the type plate of
your ACROBAT 2000.
Spring versions:
• 1,0 – 3,5 kg;
• 3,5 – 7,0 kg;
• 7,0 – 12,0 kg;
• 12,0 – 18,0 kg;
• 18,0 – 21,0 kg

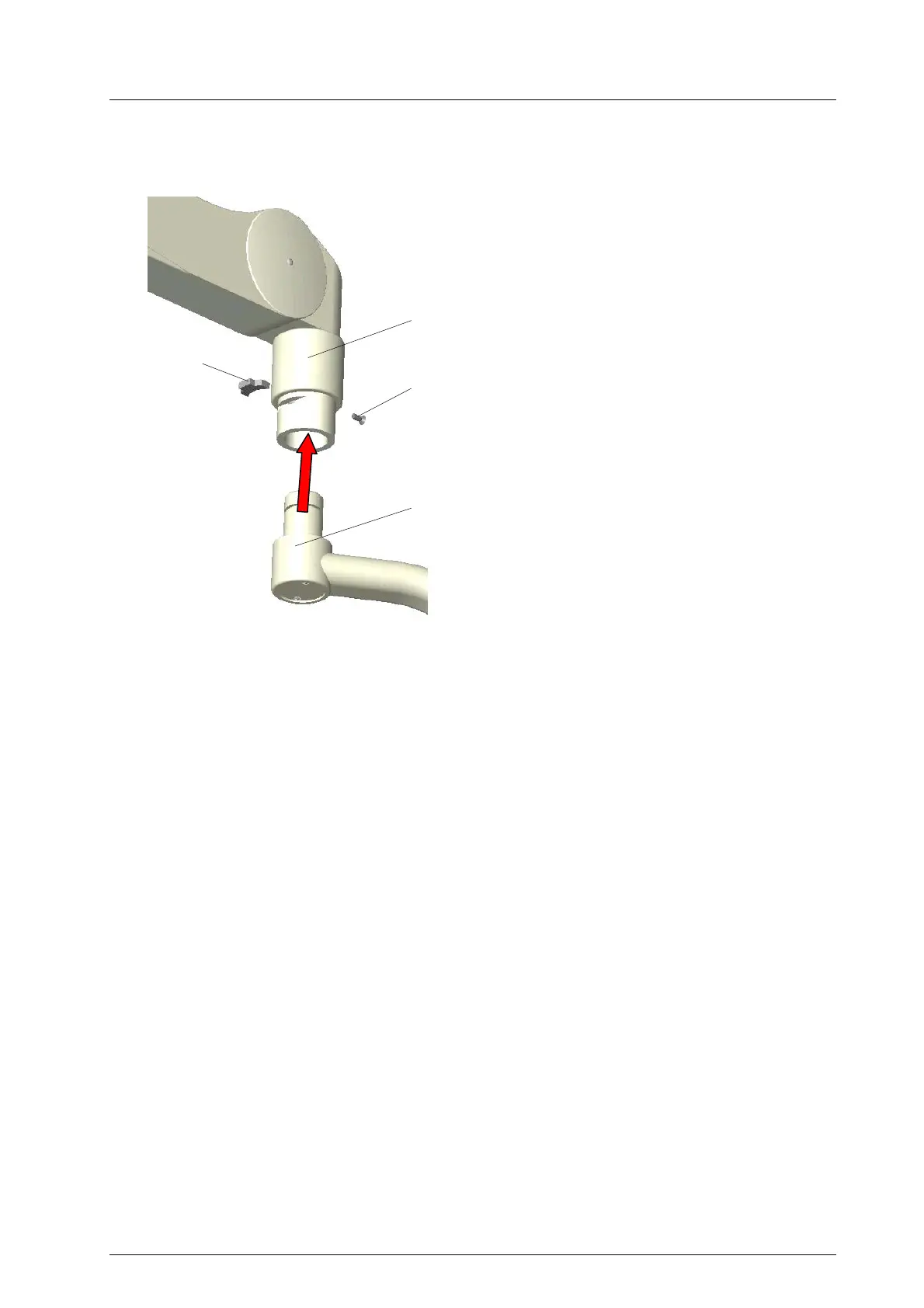

• Insert the bow 5 (with grease) into the mount-
ing of the spring arm, insert the securing seg-
ment 3 and slide the sleeve 2 down.
• Install the recessed head screw 1.
• Check the bow 5 with the lamp / device for firm
seating in the spring arm.
• Adjust the spring force as described in chapter
8.2.1.
• Adjust the vertical limit as described in chapter
8.3.1.
2
3
1
5
59500001 Edition 06 11.03.2003 / Bak Page 31/48
