DR SPRINT User Manual

34 DR
®
TRIMMER/MOWER
4. Remove the third mounting Bolt and Washer from the front of the Frame on the outer edge near the
Bearing Housing (Figure 23 on page 33).
5. Slide the Bottom Shield out from under the lip of the Side Shield and remove it.
6. When reinstalling the Bottom Shield, be sure to tuck it under the lip of the Side Shield first, then
finish positioning it and install the mounting hardware.
7. Reinstall the Stone Guard Flap in the reverse order of the steps to remove it on page 33.
Bottom Shield - SELF-PROPELLED
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
Tools Needed:
 7/16" Wrench or Socket
 3/8" Wrench or Socket
NOTE: You do not need to remove the Side Shield or any of its hardware when removing the bottom shield.
1. Remove the Mow-Ball™ Support Assembly. See “Removing the Mow-Ball™ Support Assembly” on
page 31.
2. Remove the two (2) mounting Bolts and Washers at the rear of the Frame and the single mounting
Bolt and Washer near the center using a 7/16" Wrench or Socket (Figure 24).
3. Remove the fourth mounting Bolt and Washer from the front of the Frame on the outer edge near
the Bearing Housing (Figure 24) using a 3/8" Wrench or Socket.
4. Remove the Bottom Shield by sliding it out from under the Side Shield and lifting it up and over the
Bearing Housing (Figure 24).
5. Reinstall the Bottom Shield in the reverse order.

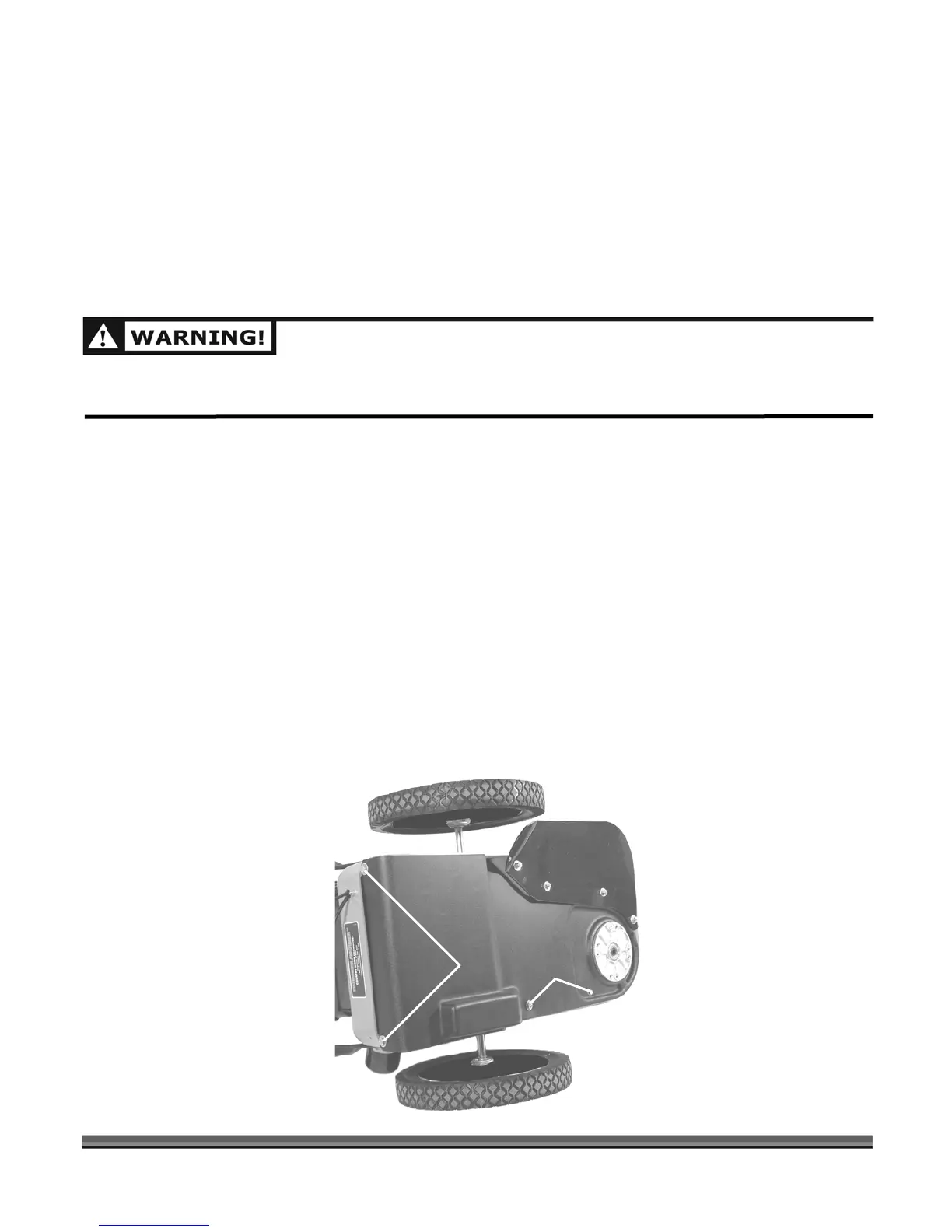

Figure 24
Side Shield
Bottom Shield
Bolts to Remove
