10 Pocket Guide Oxylog 3000 plus
Assembly

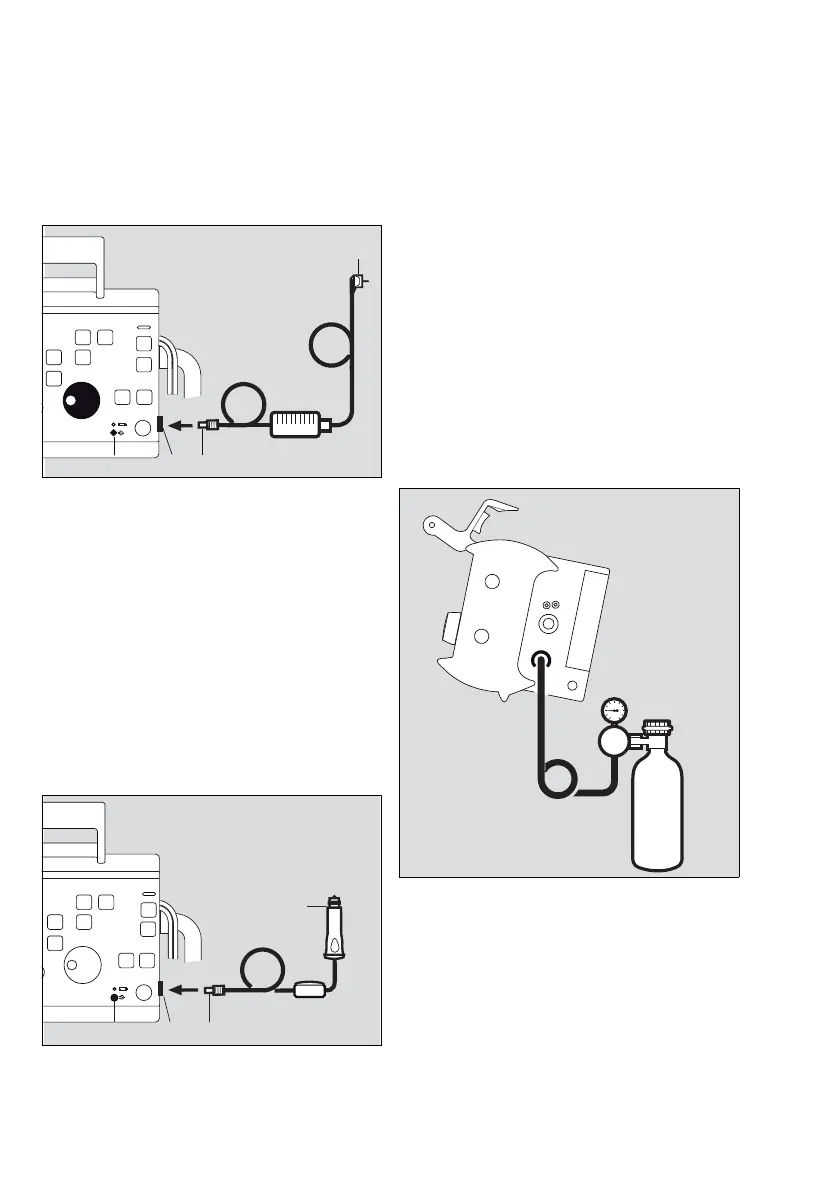

External power supply from mains power
(AC/DC power pack)
1 Connect the mains plug (A) to the mains outlet.
2 Connect the DC connector (B) to the DC connector
(C) of the Oxylog 3000 plus.
3 When the Oxylog 3000 plus is correctly connected
to an external supply, the indicator (D) lights up.
External power supply with DC/DC
converter
The DC/DC converter must be used to connect the
Oxylog 3000 plus to onboard DC power supply sys-
tems, e. g. in ambulances. It can be used with the follo-
wing voltages: 12 VDC, 24 VDC or 28 VDC. The
onboard power supply shall have a fuse of 10 to 16 A.
1 Plug the large connector (A) of the DC/DC converter
into the on-board supply.
2 Plug the small connector (B) into the DC connector
(C) of the Oxylog 3000 plus.
3 When the Oxylog 3000 plus is correctly connected
to an external supply, the indicator (D) lights up.
Connecting the gas supply
Supply from an O2 cylinder
1 Connect the pressure reducer (270 to 600 kPa deli-
very pressure, 500 kPa nominal pressure) to the O
2
cylinder.
2 Connect the O
2 hose (A) to the Oxylog 3000 plus.
3 Connect the O
2 hose to the pressure reducer (B).
4 Rotate the cylinder valve (C) slowly and open fully.
500501
Oxylog 3000 plus
12 VDC
24 VDC
28 VDC
D
B
A
C
019
