Pocket Guide Oxylog 3000 plus 9
Assembly
Assembly
Power supply
The Oxylog 3000 plus is designed to operate on power
supplies with different voltages:
– DC voltage from the on-board power supply:
– via DC/DC converter
– with AC/DC power pack
– Internal rechargeable battery

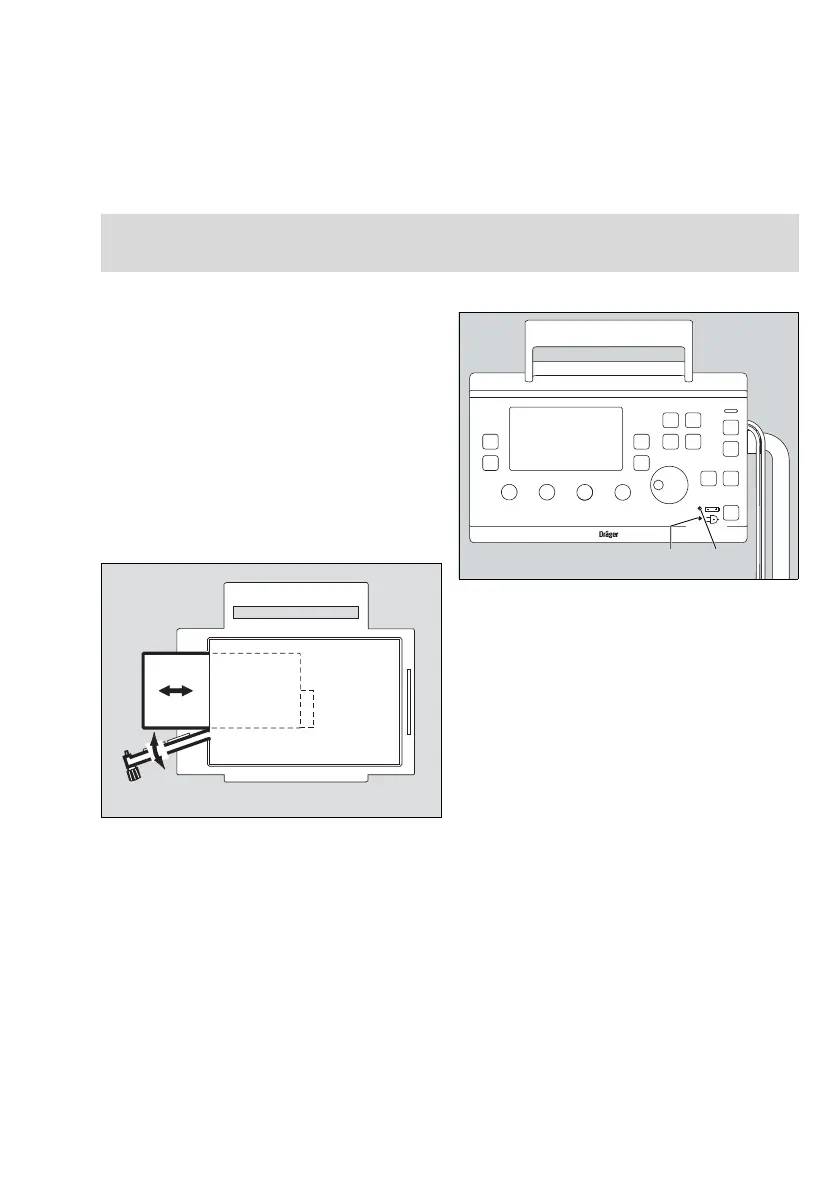

Installing the battery
1 Insert the battery (A) into the battery compartment.
2 Close the battery cover (B).
3 Tighten the knob (C) by turning it.
Checking the charge status of the battery
z Press the button on the rechargeable battery. The
charge status is indicated as a percentage by an in-
dicator.
1 The green indicator (A) lights up when an external
power source is connected.
2 A three colored indicator (B) lights up to show the
current charge status of the internal battery:
– Green: the battery is fully charged.
– Yellow: the battery is being charged.
– Red: a battery is not inserted or can not be char-
ged.
Indicators (A) and (B) remain off while the ventilator is
being operated from the internal battery.
Additional alarms can draw attention to the remaining
operating time of the battery.
The remaining capacity of the battery is indicated by the
Oxylog 3000 plus in 25% increments in the lower right
section of the information window when power is ON.
The capacity indication is overwritten when other mes-
sages need to be shown in the information window.
NOTE
The Oxylog 3000 plus Pocket Guide is not a replacement or substitute for the Instructions for Use.
Any use of the device requires full understanding and strict observation of the Instructions for Use.
017
018
Oxylog 3000 plus
BA
