Pocket Guide Oxylog 3000 plus 23
Operation
Setting AutoFlow (optional)
The following can also be set on the display for VC-CMV
and VC-AC:
– The AutoFlow function AutoFlow-AF.
When AutoFlow is switched on, the setting Tplat% is no
longer valid, and Slope must be set.
VC-SIMV, VC-SIMV/PS
Volume Controlled - Synchronized Intermittent
Mandatory Ventilation
For patients with inadequate spontaneous breathing, or
for patients who are to be weaned gradually.
Fixed mandatory minute volume MV is set with tidal vo-
lume VT and ventilation respiratory rate RR. The patient
can breathe spontaneously between the mandatory
ventilation strokes and thus contribute to the total minu-
te volume. Spontaneous breathing can be assisted with
PS.
Set the ventilation pattern with the controls below the
display:
– Tidal volume VT.
– Respiratory rate RR.
(minimum possible respiratory rate: 2 per min).
– Maximum airway pressure Pmax.
– O
2 concentration FiO2.
The following can be set on the display:
– Positive end expiratory pressure PEEP.
– Pressure support
Δ Psupp above PEEP.
– Sensitivity Trigger.
– Ventilation time ratio I:E or inspiration time Ti.
– Plateau time Tplat %, in % of the inspiration time.

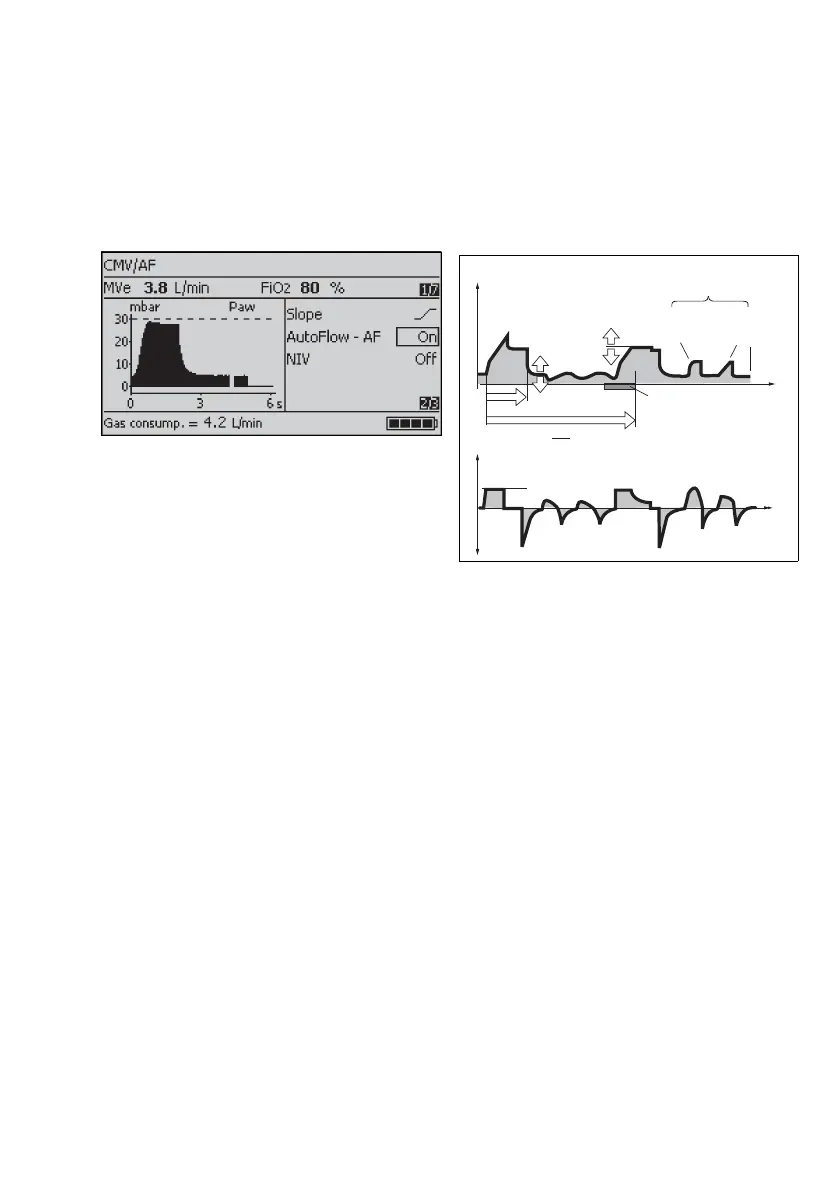

– AutoFlow (optional).
13937171
504
Paw
Flow
Ti
P max
PEEP
rapid
rise time
slow
rise time
Pressure
support PS
Trigger window
RR
Insp. Flow
t
t
1
