Pocket Guide Oxylog 3000 plus 5

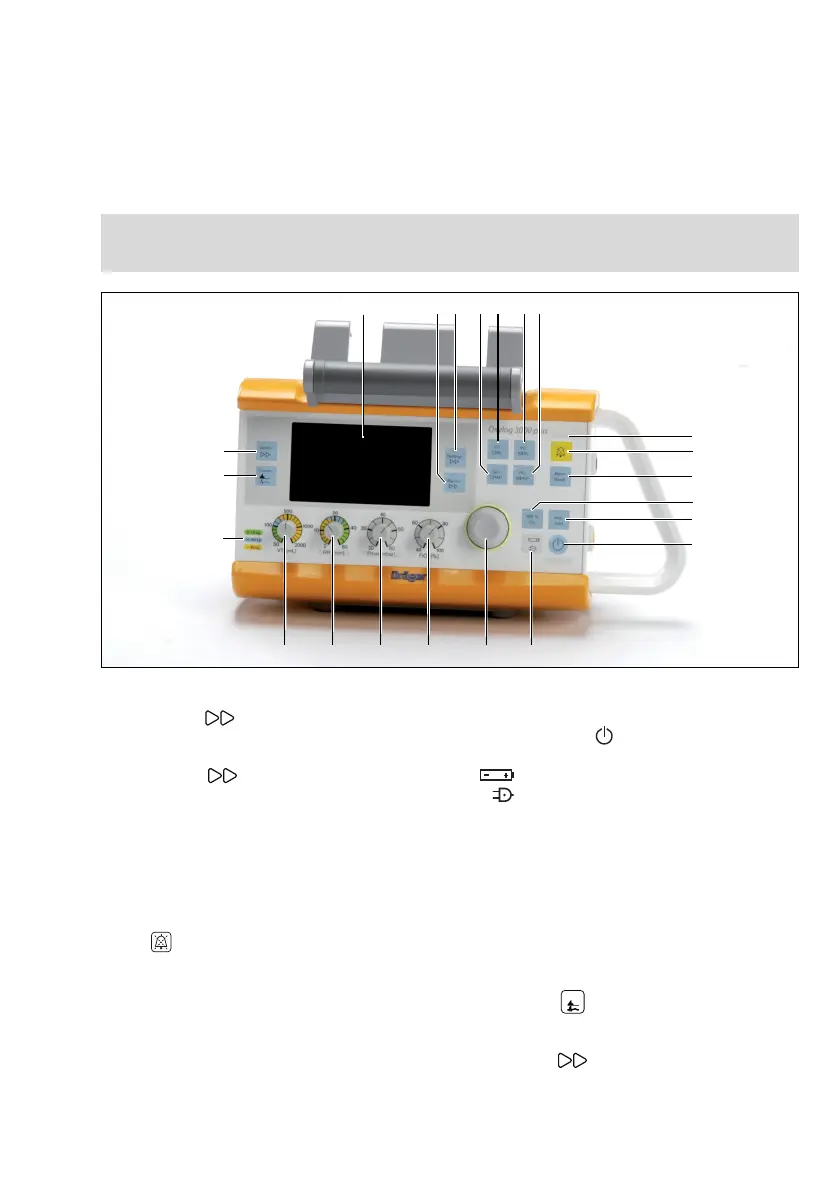

System Overview
System Overview
NOTE
The Oxylog 3000 plus Pocket Guide is not a replacement or substitute for the Instructions for Use.
Any use of the device requires full understanding and strict observation of the Instructions for Use.
002
ABCDEFG
H
I
J
K
L
M
NOPQRS
T
U
V
A Screen with screen pages for the specific application
B Key Alarms to display the alarm settings in
the "Settings and Alarms" window and to change
screen pages
C Key Settings
to display ventilation parameters
in the "Settings and Alarms" window and to change
screen pages
D Key for setting the ventilation mode SpnCPAP
E Key for setting the ventilation mode VC-CMV/VC-AC
F Key for setting the ventilation mode VC-SIMV
G Key for setting the ventilation mode PC-BIPAP
H Red and yellow alarm indicators
I Key
for suppressing the audible alarm for
2 minutes
J Key Alarm Reset for acknowledging alarm mes-
sages
K Key O2-Inhalation for O2 inhalation or key 100% O2
for 100% O
2 application, depending on the option in-
stalled at manufacture
L Key Insp. Hold for initiating a manual inspiration or
for extending the current inspiration time
M Key Start/Standby
N Display symbols for the power supply
Charge status of the internal battery
Mains power supply connected
O Rotary knob for making selections, changing and
confirming setting
P Control knob for setting the O
2 concentration FiO2
Q Control knob for setting the maximum inspiratory
pressure Pmax
R Control knob for setting the respiratory rate RR
S Control knob for setting the tidal volume VT
T Explanation of color codes for quick pre-setting of
RR and VT
U Key Curves
to change between the pressure,
flow, or CO
2 (optional) curve in small and large pre-
sentation
V Key Values
to change screen pages in the
"Measured Values" window
Curves
