14 Pocket Guide Oxylog 3000 plus
Assembly

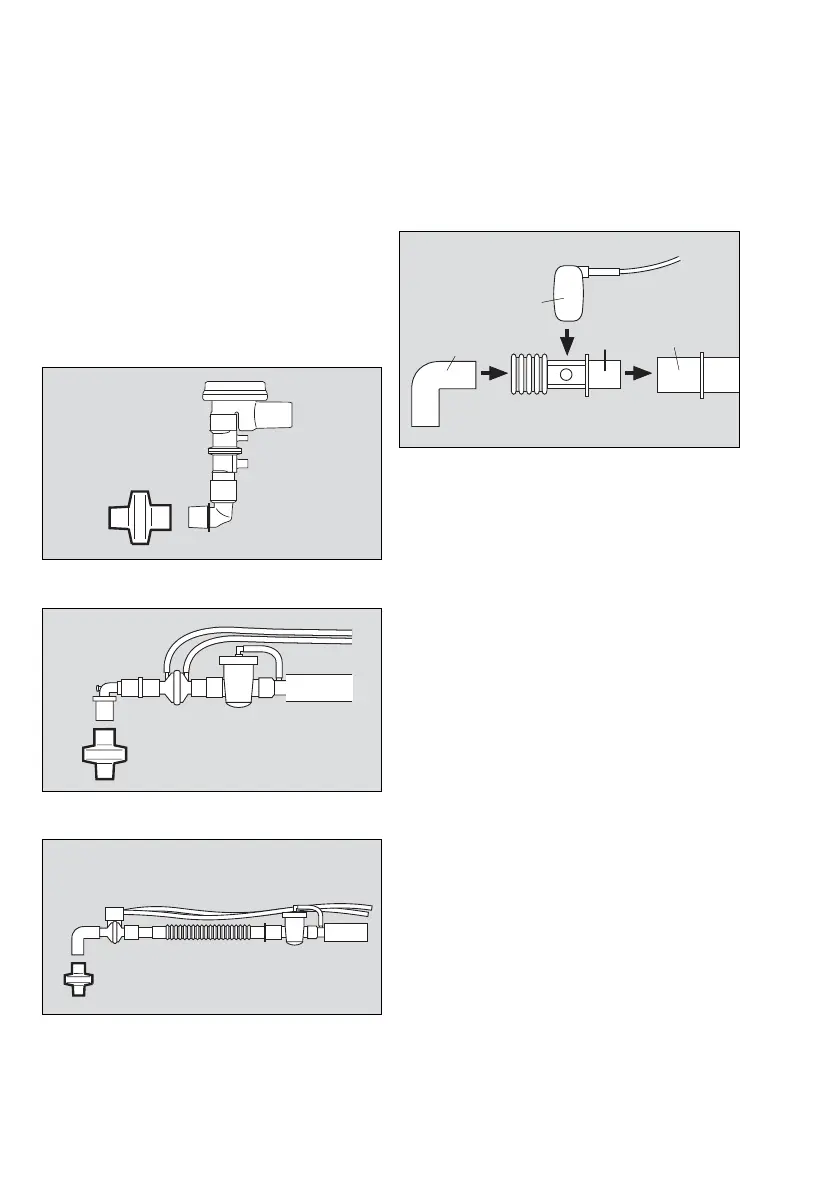

Connecting the bacterial filter or
HME
It is recommended to use a bacterial filter between ven-
tilator and patient, to reduce the risk of bacteria, viruses,
fungi or spores being present in the inspiratory flow.
z Connect the bacterial filter or HME to the angled
connector as follows.
Adult reusable hose:
Adult disposable hose:
Paediatric hose:
Connecting the CO2 sensor and the
cuvette
1 Disconnect the angled connector (A) from the flow
sensor (D).
2 Attach the cuvette (C) to the flow sensor (D), with
the cuvette windows facing the side.
3 Attach the angled connector (A) to the cuvette (C).
4 Push the CO
2 sensor (B) onto the cuvette (C), with
the cable towards the device.
5 Plug the CO
2 sensor into the connector of the
Oxylog 3000 plus. For the connector location, refer
to the section "Side view, right" on page 6.
6 Insert the CO
2 sensor cable in the cable clips on the
hose.
Alternatively, connect the cuvette (C) directly to the pa-
tient side of the angled connector (A), without discon-
necting the angled connector from the flow sensor (D).
008014015
016
