Instructions for Use Oxylog 3000 SW 1.n 31
Assembly

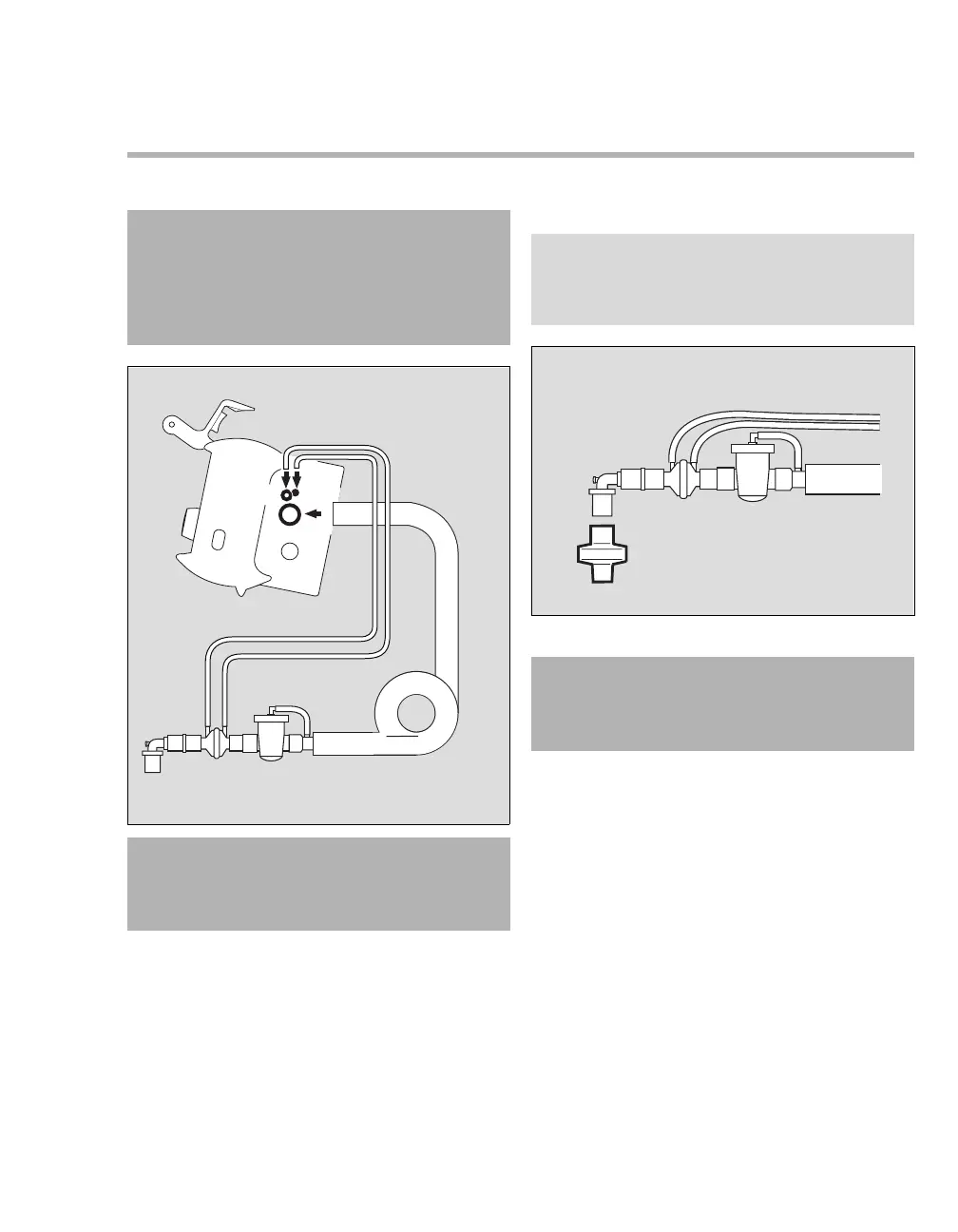

Connect the disposable hose system
1 Connect the blue flow measuring hose (B) to
the blue connector.
2 Connect the transparent flow measuring hose
(A) to the other connector.
3 Connect the ventilation hose (C) to the gas out-
let on the Oxylog 3000.
When using a bacterial filter or HME
z Connect the bacterial filter or HME.
When changing the ventilation hose
system
If the reusable ventilation hose system is to be used
instead of a disposable hose system or vice versa:
1 Have the nozzles on the device changed by
trained service specialists.
2 Reconfigure the device accordingly. Refer to
the "Customer Service Mode" on page 79 for
additional information.
WARNING
Do not use disposable hose systems other
than those on the "List of Accessories"
on page 133. The minute volume may be mea-
sured incorrectly and the device may malfunc-
tion.
013
WARNING
Ensure that the flow measuring hoses are
correctly positioned, otherwise the volume
will be measured incorrectly.
A
B
C
NOTE
When using a bacterial filter or HME measured
flows may deviate from the expiratory flows as
temperature and humidity of the gas are reduced.
014
WARNING
Bacterial filters increase the exhalation
resistance and dead space volume of the
ventilation equipment.
To Next Page
