Dräger Oxylog 3000 User Manual

Assembly
34
Instructions for Use Oxylog 3000 SW 1.n

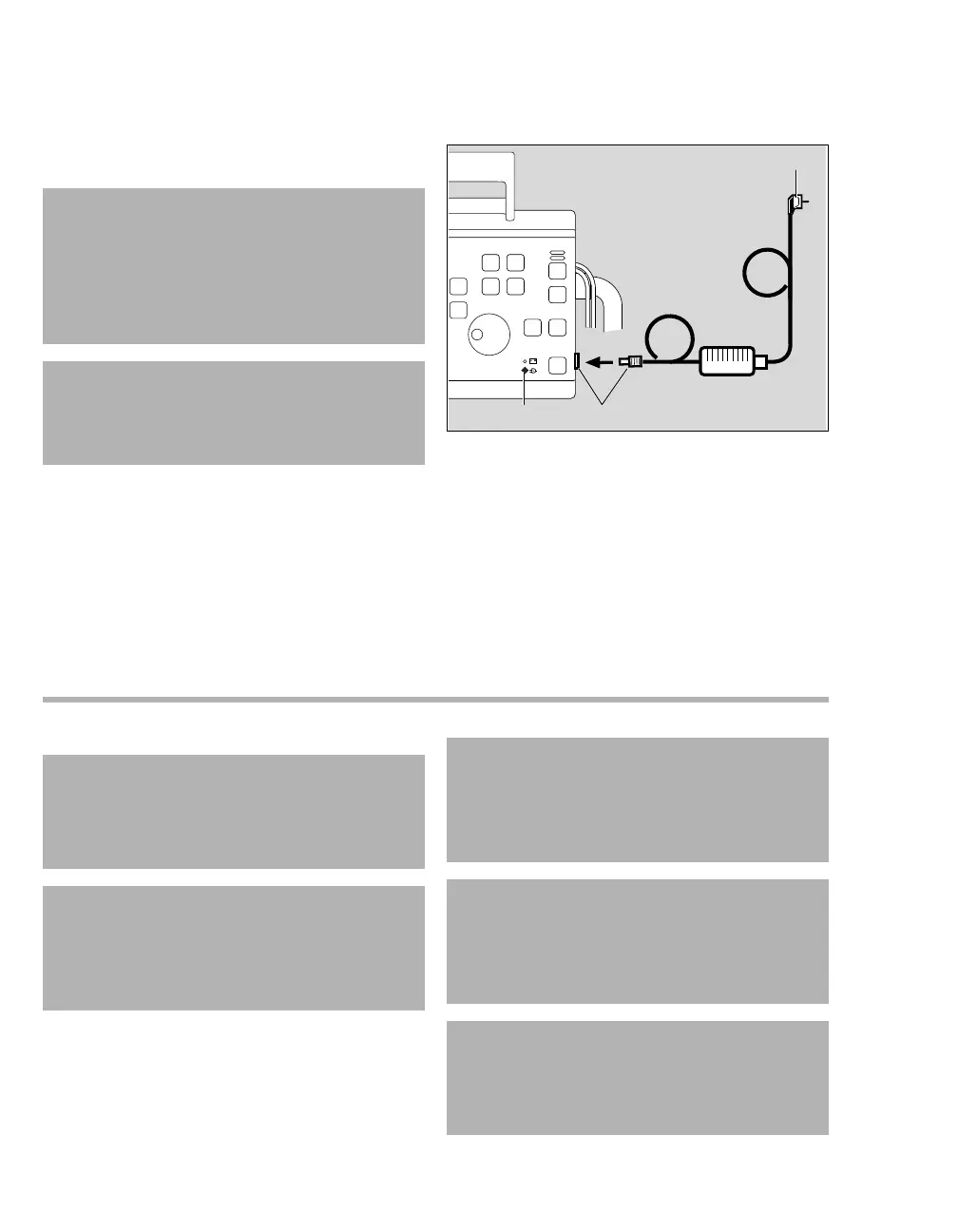

External power supply from mains
power
(AC/DC Power pack)
1 Connect the mains plug (A) to the mains outlet.
2 Connect the DC plug (B) to the DC connector
on the Oxylog 3000.
3 When the Oxylog 3000 is connected to an
external supply, the indicator
N (C) lights up.
Connecting the gas supply
Take care when handling O2:
WARNING
Use only a specified AC/DC power pack
equipped with a correct mains plug.
Otherwise the device can malfunction.
Refer to the "List of Accessories" on page 133
for additional information.
WARNING
The AC/DC power pack may not be used
outdoors.
Risk of electric shock or equipment damage.
017
Oxylog 3000
BC
A
WARNING
Secure O2 cylinders so they cannot fall over
and keep away from excessive heat.
Risk of explosion!
WARNING
Do not grease or lubricate O2 fittings, such as
cylinder valves and pressure reducers and do
not handle with greasy hands.
Risk of fire!
WARNING
Operate cylinder valves by hand and rotate
smoothly to prevent the risk of fire or
explosion.
Do not use tools.
WARNING
Only use medical grade oxygen that is dry and
free from dust and oil.
Contaminated gas can cause device
malfunction.
WARNING
Always provide adequate ventilation in the
area where the ventilator is being operated, in
order to maintain ambient O2 concentration
< 24%, to prevent risk of fire.

Dräger Oxylog 3000 Specifications

General

Tidal Volume	50 - 2000 mL
Ventilation Modes	CPAP
Frequency	5 - 80 bpm
Inspiratory Time	0.2 - 5 s
PEEP	0 - 20 cmH2O
Power Supply	100 - 240 V AC, 50/60 Hz
