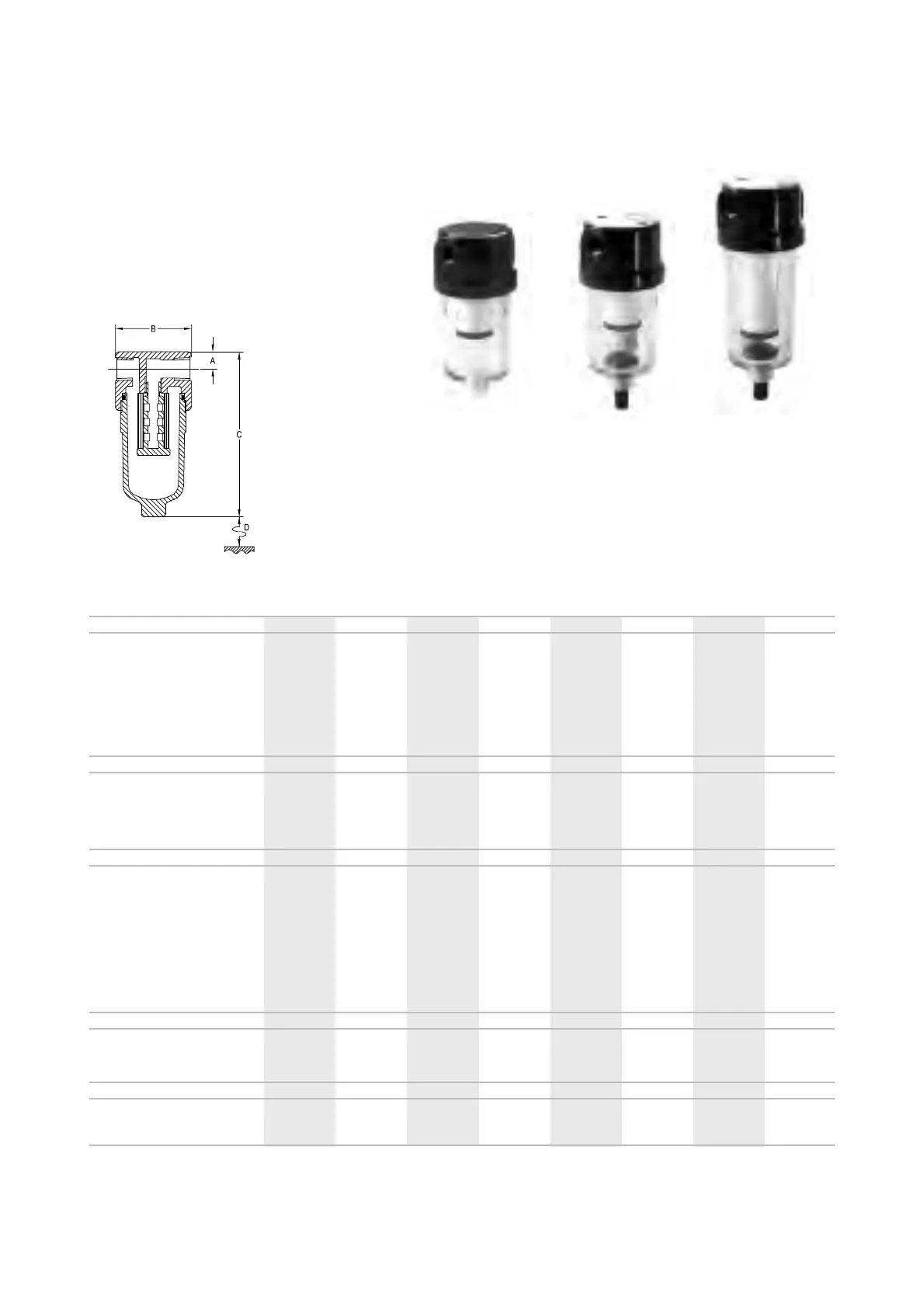

Housing Model 700N 705N 700NC 705NC 720N 725N 720NC 725NC
Port Size - NPT 1/8 1/4 1/8 1/4 1/8 1/4 1/8 1/4
Drain None None None None None None None None
For Manual Drain order Model 701N 710N 701NC 710NC 721N 730N 721NC 730NC
Maximum Pressure - Bar 77777777
Maximum Temperature - ºC 50 50 50 50 50 50 50 50
Materials of Construction (1)
Head & Internals Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon
Bowl Nylon Nylon PC PC Nylon Nylon PC PC
Gaskets Viton Viton Viton Viton Viton Viton Viton Viton
Principal Dimensions
A - mm 10 10 10 10 10 10 10 10
B - mm 44 44 44 44 44 44 44 44
C - mm (2) 96 (106) 96 (106) 96 (106) 96 (106) 112 (122) 112 (122) 112 (122) 112 (122)
D - mm 38 38 38 38 60 60 60 60
Volume - cc 50 50 50 50 60 60 60 60
Weight - kg 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06
Accessories
Standard Gasket Set GV710 GV710 GV710 GV710 GV710 GV710 GV710 GV710
Mounting Bracket MB110 MB110 MB110 MB110 MB110 MB110 MB110 MB110
Filter Element Codes (3)
Disposable Element 12-32-xx 12-32-xx 12-32-xx 12-32-xx 12-57-xx 12-57-xx 12-57-xx 12-57-xx
PTFE Element PT-110-xx PT-110-xx PT-110-xx PT-110-xx PT-120-xx PT-120-xx PT-120-xx PT-120-xx
Notes (1) Material abbreviation, PC = Polycarbonate
(2) Dimension in brackets is for the manual drain version of the housing
(3) Replace xx with grade required, e.g. 12-32-50C, PT-120-03
Headline nylon housings are available in two versions: all nylon with
transparent nylon bowl, or with lower cost polycarbonate bowl.
Housings for element sizes 12-32 to 25-178 are available, either with a
manual drain valve or with no drain. These housings are widely used in
low pressure systems where plastics can be specified.
All nylon housings
Nylon / PC also available
Low Cost
Ideal for portable analysers
705NC 730N
Nylon Housings
Principal Specifications
710N
