Notes (1) Material abbreviation, PC = Polycarbonate
(2) Dimension in brackets is for the manual drain version
(3) Replace ‘xx’ with grade required, e.g. 25-64-50C, PT-140-03
Housing Model 750N 755N 750NC 755NC 772N 775N 772NC 775NC
Port Size - NPT 1/4” 1/2” 1/4” 1/2” 1/4” 1/2” 1/4” 1/2”
Drain None None None None None None None None
For Manual Drain order Model 751N 760N 751NC 760NC 771N 780N 771NC 780NC
Maximum Pressure - Bar 77777777
Maximum Temperature - ºC 50 50 50 50 50 50 50 50
Materials of Construction (1)
Head & Internals Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon
Bowl Nylon Nylon PC PC Nylon Nylon PC PC
Gaskets Viton Viton Viton Viton Viton Viton Viton Viton

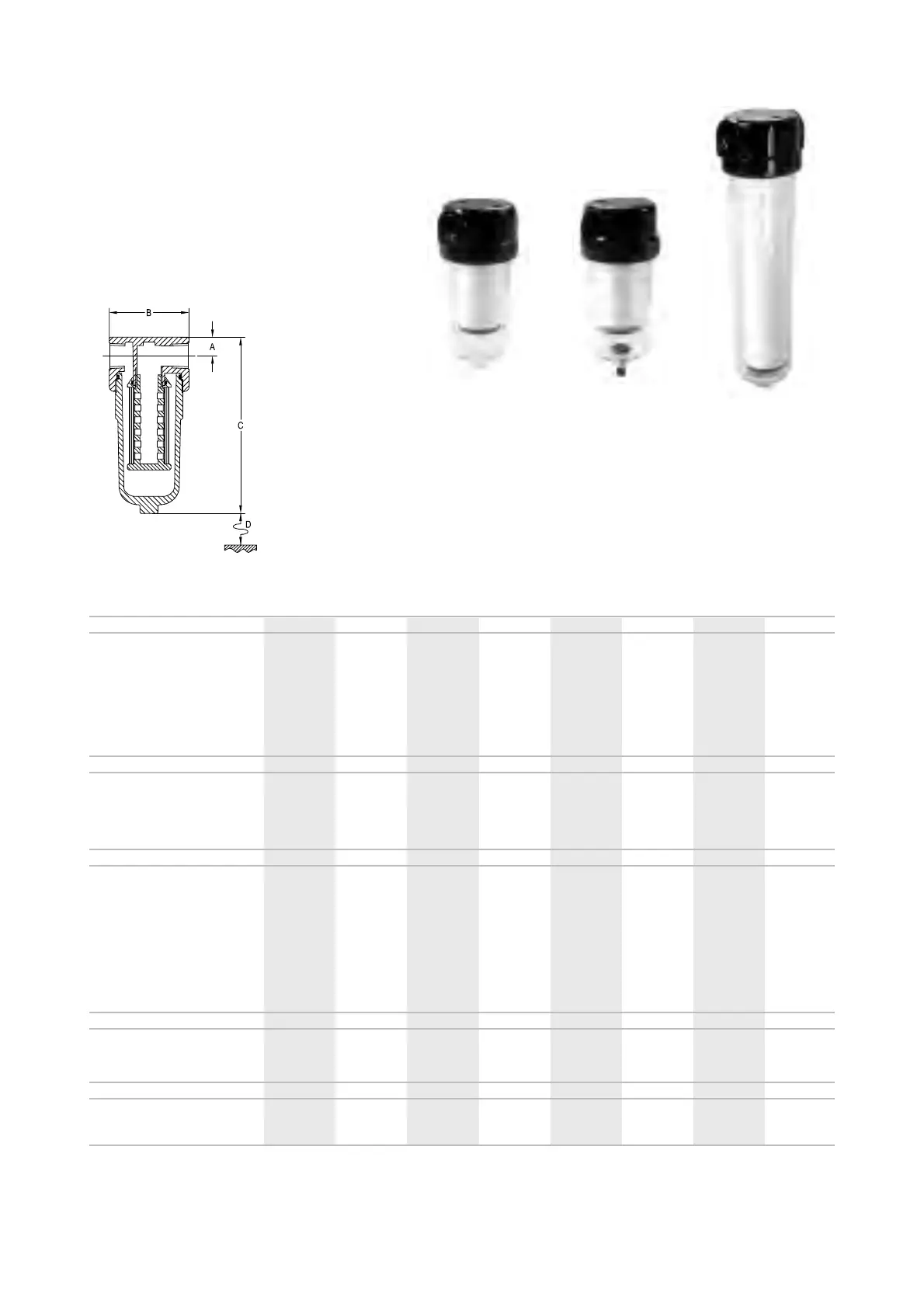

Principal Dimensions
A - mm 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
B - mm 66 66 66 66 66 66 66 66
C - mm (2) 146 (156) 146 (156) 146 (156) 146 (156) 248 (258) 248 (258) 248 (258) 248 (258)
D - mm 80 80 80 80 195 195 195 195
Volume - cc 170 170 170 170 310 310 310 310
Weight - kg 0.2 0.2 0.2 0.2 0.25 0.25 0.25 0.25
Accessories
Standard Gasket Set GV760 GV760 GV760 GV760 GV760 GV760 GV760 GV760
Mounting Bracket MB130 MB130 MB130 MB130 MB130 MB130 MB130 MB130
Filter Element Codes (3)
Disposable Element 25-64-xx 25-64-xx 25-64-xx 25-64-xx 25-178-xx 25-178-xx 25-178-xx 25-178-xx
PTFE Element PT-130-xx PT-130-xx PT-130-xx PT-130-xx PT-140-xx PT-140-xx PT-140-xx PT-140-xx
Depending on the chemical nature of the gas being filtered, other plastic filter
housings should be considered e.g. polypropylene, (pages 24-25) or PVDF
(page 26). The convenience of complete disposability and low initial cost may
make Headline’s DIF’s (page 6-7) a more suitable product option.
Housings accepting elements 12-32 & 12-57 are sold singly or in packs of 100.
Housings accepting elements 25-64 & 25-178 are sold singly or in packs of 25.
All nylon housings
Nylon / PC also available
Low cost
Ideal for automotive use
750NC 775NC
Nylon Housings
Principal Specifications
760N
23
