Installing accessories
Connecting to the Polytron 7000
4 Connect the plug of the Remote Cable (cable length 5, 15 or 30 m) to the
remote sensor adapter and secure it by turning the ring clockwise.
5 Insert the sensor plug in the opening on the Dräger Polytron 7000 transmit-
ter with the "Dräger" logo pointing to the front.
 Secure the sensor plug with the bayonet ring.
Duct adapter for remote sensor
Purpose
Duct adapter for remote sensor – 83 17 617:
— For mounting a remote sensor on a pipe or duct,
— For measuring the gas concentration in the pipe or duct.
Mounting
 Drill a hole for the sensor opening (diameter 35+1 mm) at the desired meas-
uring point on the pipe.
 Button the sealing sleeve into the hole.
 Align the retaining clip so that it is centred on the hole.
1 Drill the holes for the securing screws. A drilling template is provided on
page 141.
2 Loosen the bayonet ring of the remote sensor.
3 Place the retaining clip on the pipe of the case and install the bayonet ring
again.
 Insert the sensor opening into the sealing sleeve.
 Turn the retaining clip to the correct position and screw it down.
NOTE
The remote sensor is recognised automatically by the transmitter. No further
installation steps are required.

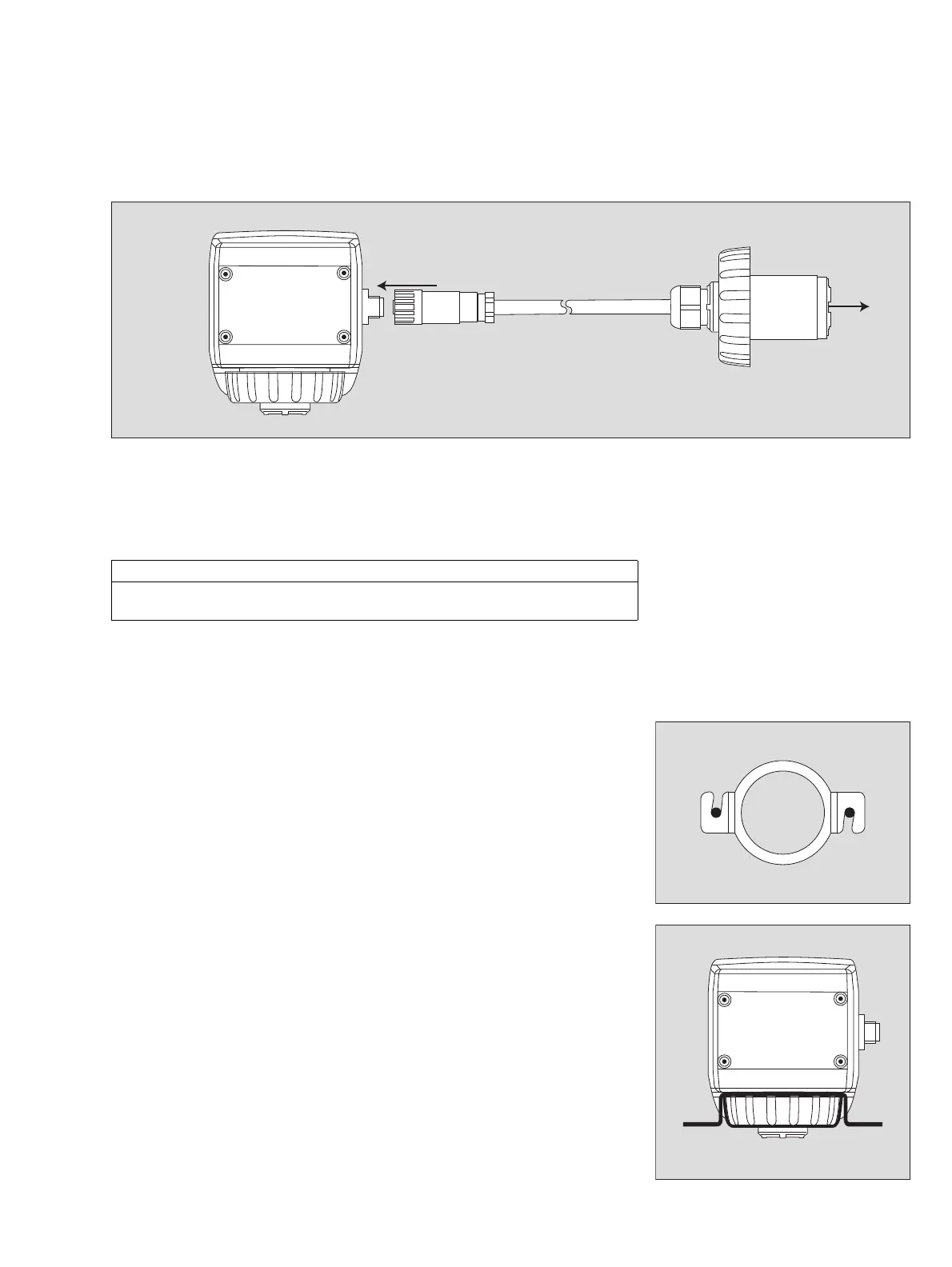

02223758_1_en.eps
4
5
Remote sensor adapter
Connector
Sensor plug
Remote Cable
5 m / 15 m / 30 m
02323758_1.eps
1
1
02423758_1.eps
2
3
