Polytron 7000 Operation via LON
82
Polytron 7000 Operation via LON
There are 3 LED’s behind the display window that indicate the different status of the Polytron 7000.
— The red LED indicates an error.
— The orange LED indicates communication with the central controller via LON of LON specific data e.g. sending the
Service PIN.
— The green LED indicates the correct operation of the Polytron 7000 when it is continuously on.
When the green LED flashes it indicates a warning in the Polytron 7000.
Every Polytron 7000 has a Neuron ID. The Neuron ID uniquely defines the Neuron chip on the LON network.
To view the Neuron ID:
Select menu items » Settings «, » Communication «, » LON Interface « and » Neuron ID «.
To commission the device the Neuron ID can be sent to the controller via LON using the Service PIN function.
Select menu items » Settings «, » Communication «, » LON Interface « and » Service PIN «.
Select » Confirm « and press the » « key to sent the Neuron ID.
Use the Polytron 7000 Plugin for configuration and commissioning the Polytron 7000 via LON.
The plugin is available for free download under:
http://www.echelon.com/products/integration/plugin/
Polytron 7000 Operation via Foundation Fieldbus
For the Polytron 7000, three support files are available: two device description files (FFO and SYM) and a capability
file (CFF).
Use the Polytron 7xxx Foundation Fieldbus Manuel for configuration and
commissioning the Polytron 7000 via LON.
The Manual is available for free download under: http://www.draeger.com

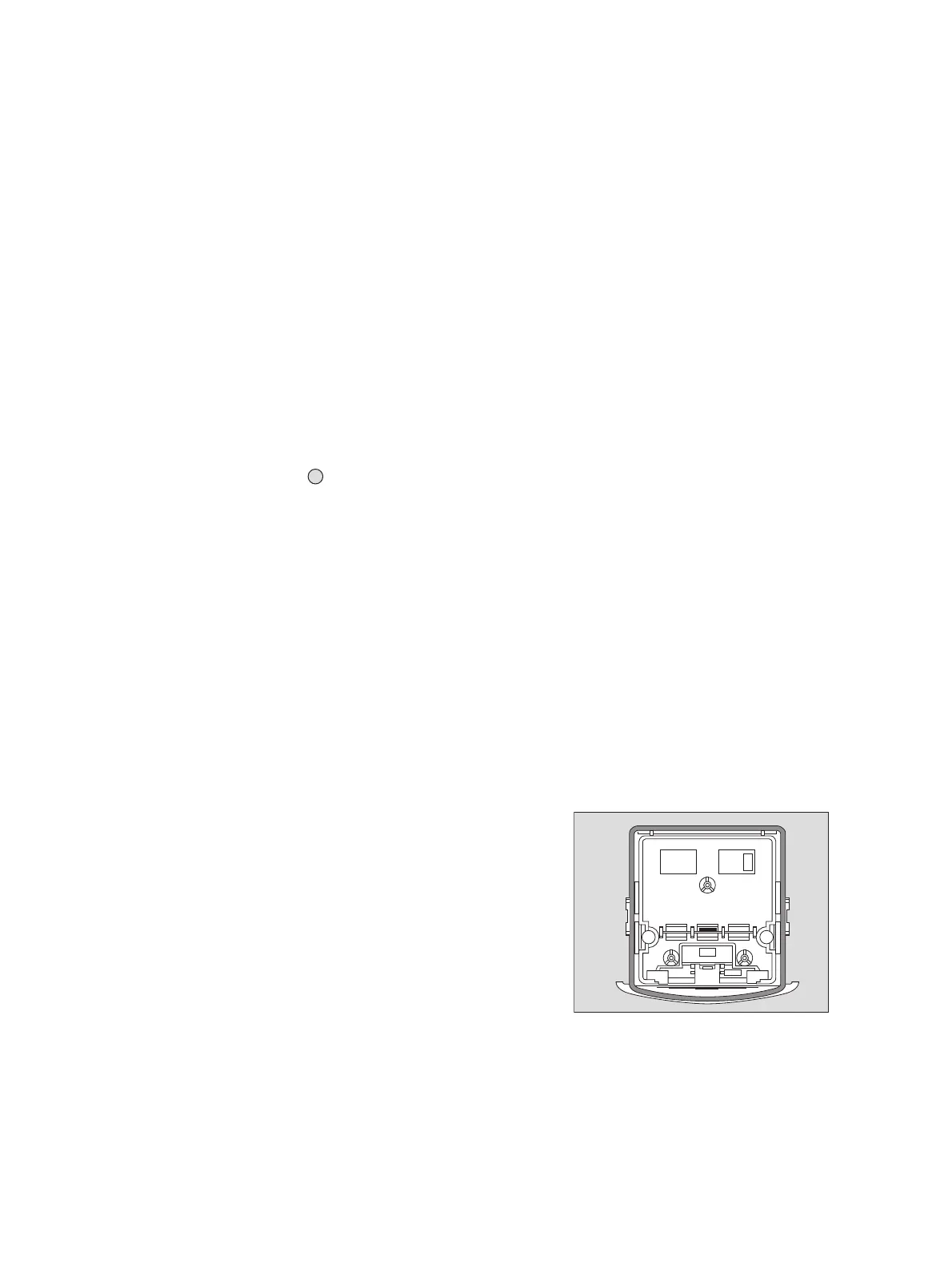

1 By connecting the Foundation Fieldbus jumper, the following Foundation
Fieldbus functions are activated:
Simulate: If the Foundation Fieldbus jumper has been connected, the
simulate function can be activated by SW or via the fieldbus.
The fieldbus master then receives defined simulation values.
This may be helpful when commissioning or maintaining the
fieldbus system.
Writeprotect: If the Foundation Fieldbus jumper has been connected, all
writeable parameters of the fieldbus transmitter can only be
read. The jumper must be set during commissioning to enable
parametrisation of the transmitter.
