7.2 Placing appliance
When placing the appliance, observe the following instructions:
3 The appliance should always be placed on the adjustable feet.
1 Set the height of the appliance using the adjustable feet and level the appliance.
7.3 Additional installation options
The appliance can be placed with a platform (g. 7-13 and 7-14). This can be done in combination with a lower decorative
strip (options A and C) or with the platform connecting to the glass (options B and D).
The accompanying chimney breast can be used with (options A and B) or without (options C and D) a false wall. It is also
possible to have the interior plate of the appliance continue to the outside (g. 7-13 and 7-14). The chimney breast can
be placed up to the side glass pane(s).
3 Do not allow the weight of the platform to rest on the appliance, use the assembly set instead.
It can be ordered separately.

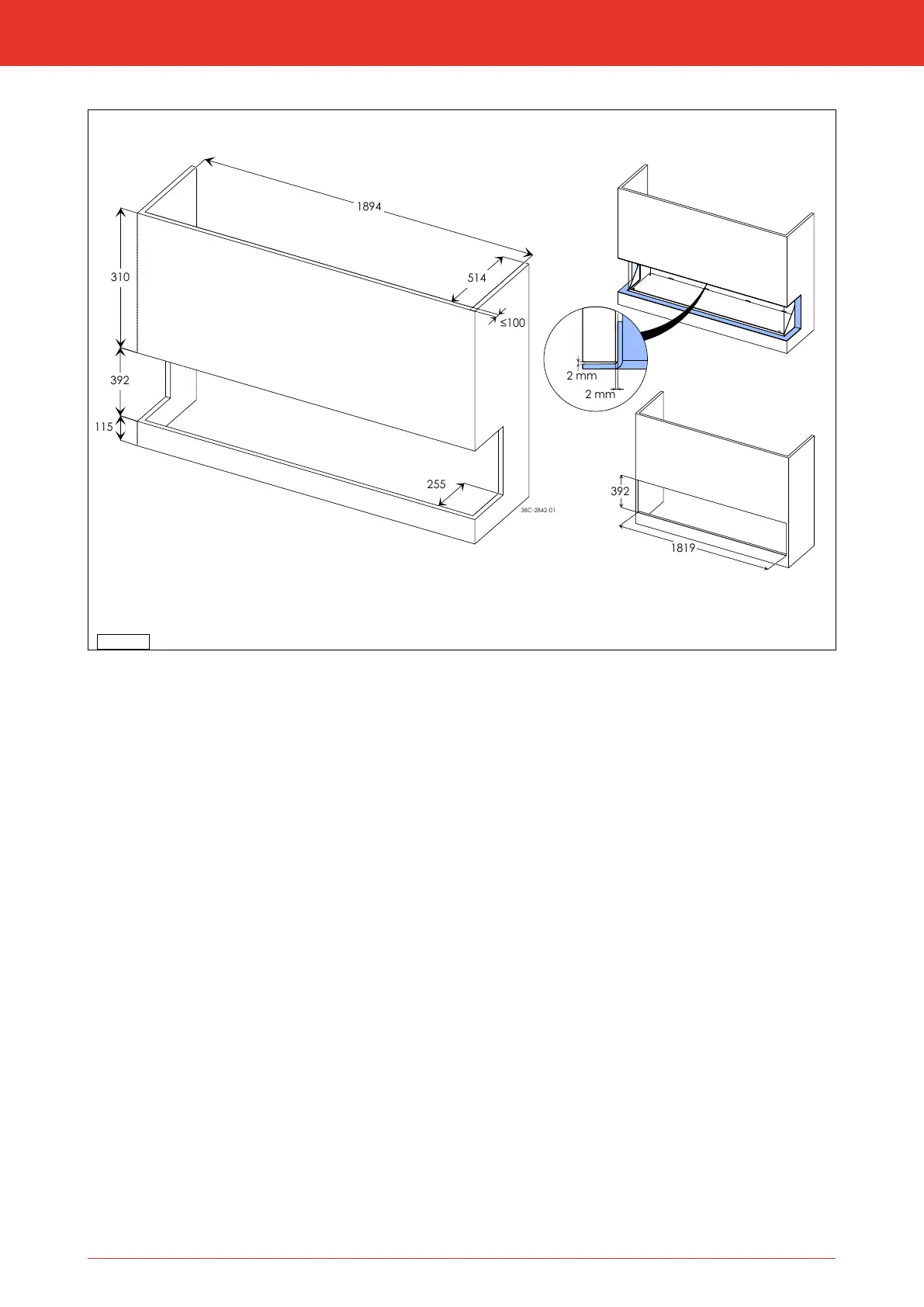

115
392
310
255
1894
514
392
1819
2 mm
2 mm
38C-2842-01
Virtuo 180/3
Virtuo 180
≤100
7-10
