Dru Virtuo Evolve 100 - Placing the Chimney Breast

22
5 mm
378
38C-2848-01
1
2
3
7-18

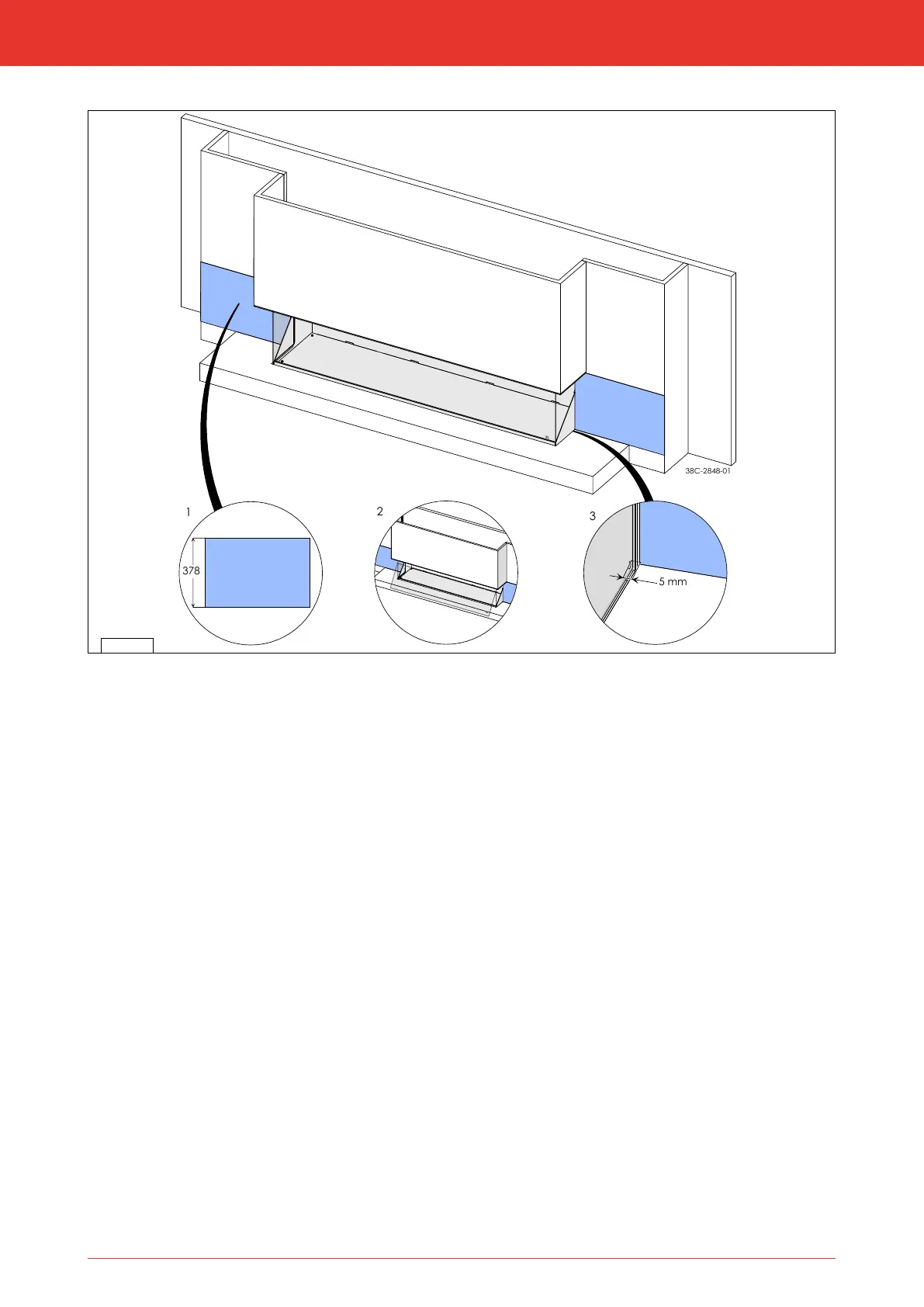

7.4 Placing the chimney breast
3 - The appliance should not function as a bearing element in the structure. Make sure the appliance does not have to
bear the weight of the chimney breast for example.
- When using stone-like materials and or plaster nishing, allow the chimneybreast to dry for at least six weeks prior to
using the heater in the appliance in order to prevent cracks from appearing. During the drying period it is possible to
use the appliance with the heater switched o.
When placing the chimney breast, you should take the following into account:
- The minimum internal dimensions of the chimney breast (g. 7-8, 7-9 and 7-10).
- The dimensions of the glass pane, so that it can be placed/removed after placing the chimney breast.
- Placement of decorative strips, frames and such like; if possible, place them after the performance of any structural
work. Use good quality painting tape and remove this tape after plastering or painting work.
Check the following items, before the chimney breast is fully closed:
1 Has no plastering work been performed on or across the edges of the construction frame? This due to the fact that cracks
can occur in the plastering due to heat from the appliance.
1 The plastering does not hinder the placement and removal of the glass pane.0
