8.3 Metal triangle
The metal triangles are optional and are supplied with the three-sided appliances. These can be placed once the front
glass pane and projection plate have been removed.
3
Avoid damaging the glass panes and projection plate.
8.3.1 Placing the metal triangle
1

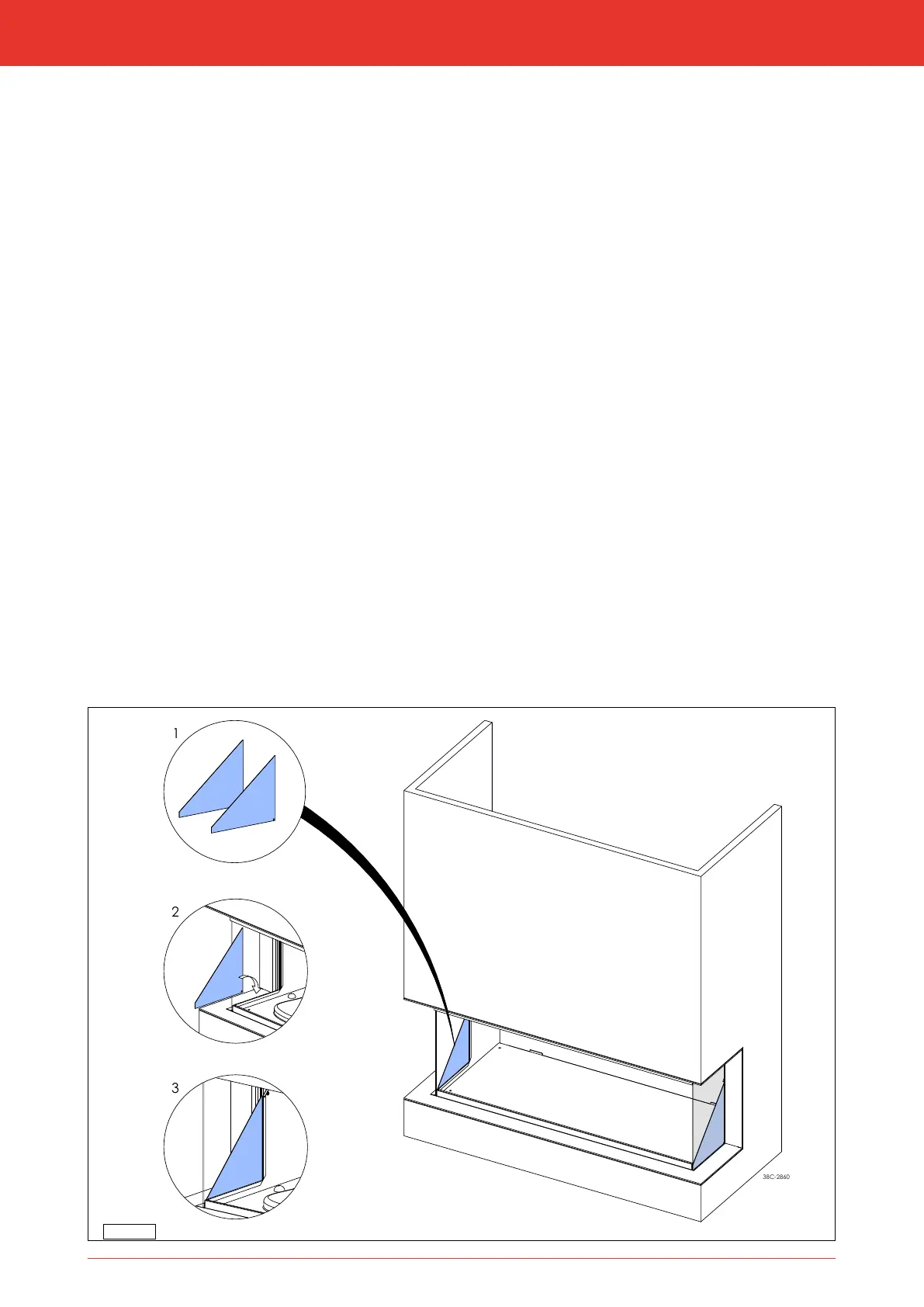

Take the metal triangle and place it with the slanted side forwards. (g. 8-3, step 1)
1
Ensure the triangle is clamped between the side glass pane and the frame. (g. 8-3, steps 2 and 3)
3
It is important that the slanted side of the metal triangle connects to the edge of the projection plate.
3
Make sure the glass panes do not get damaged.
