Dru Virtuo Evolve 100 - Placing the Log Set Virtuo 130

37
38P-0608-1
8-29
38P-0845/2
8-30
8-28
8-31
8-32
8.5.2 Installing the wood set Virtuo Evolve 130
Place the logs exactly in accordance with the following description in order to achieve a correct alignment of the ame
picture and the logs.
Step 1

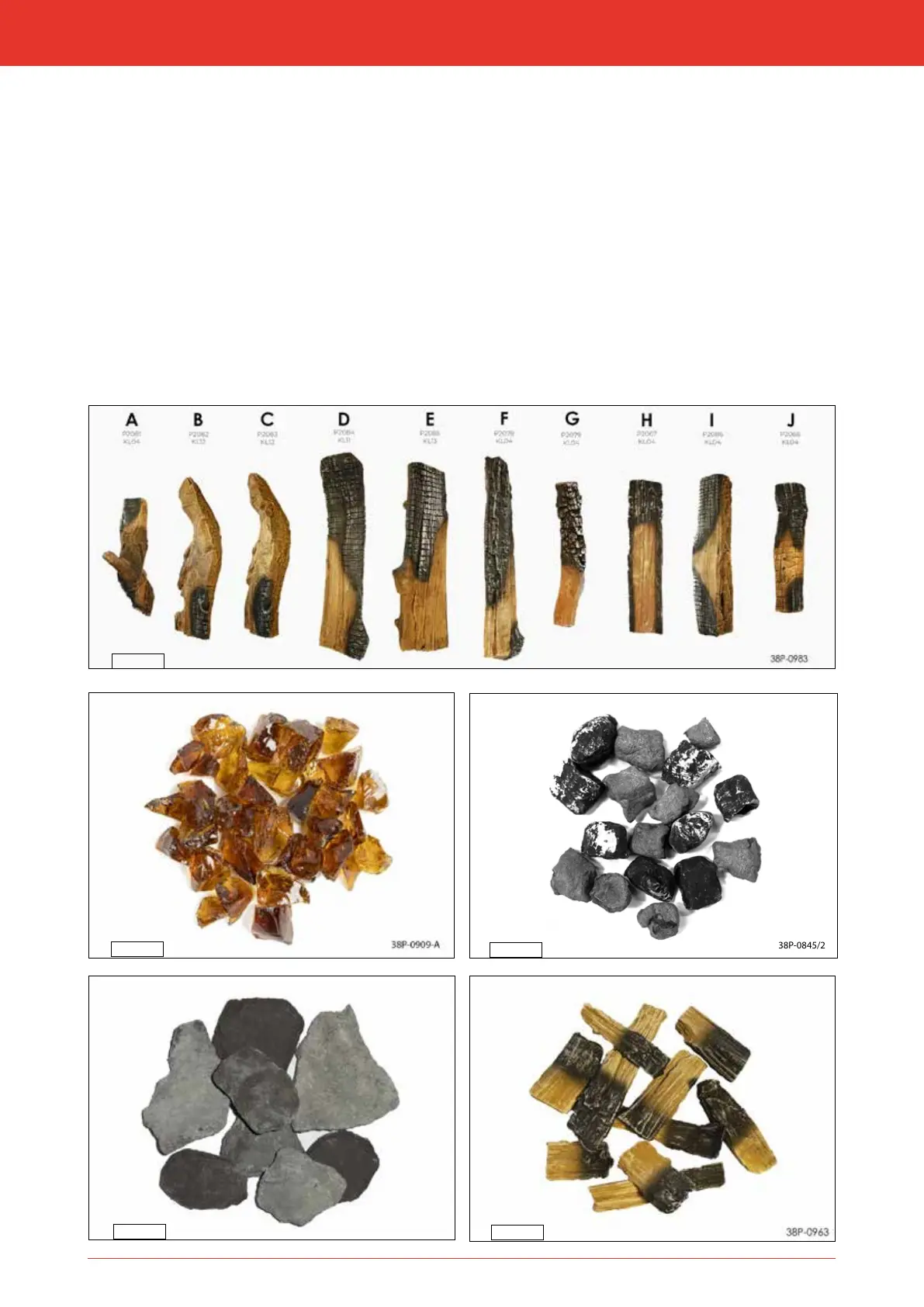

Carefully remove the wood set from their packaging. The wood set consist of the following:
- Wood set (g. 8-28)
- Glowing embers (g. 8-29)
- Coals (g. 8-30)
- Chips (g. 8-31)
- Wood chips (g. 8-32)
2 When identifying logs A to J (g. 8-28), use the color, size and burn marks on the logs.
3 Log B and C look similar, pay close attention to the location of the positioning cams! (g. 8-28)
