19

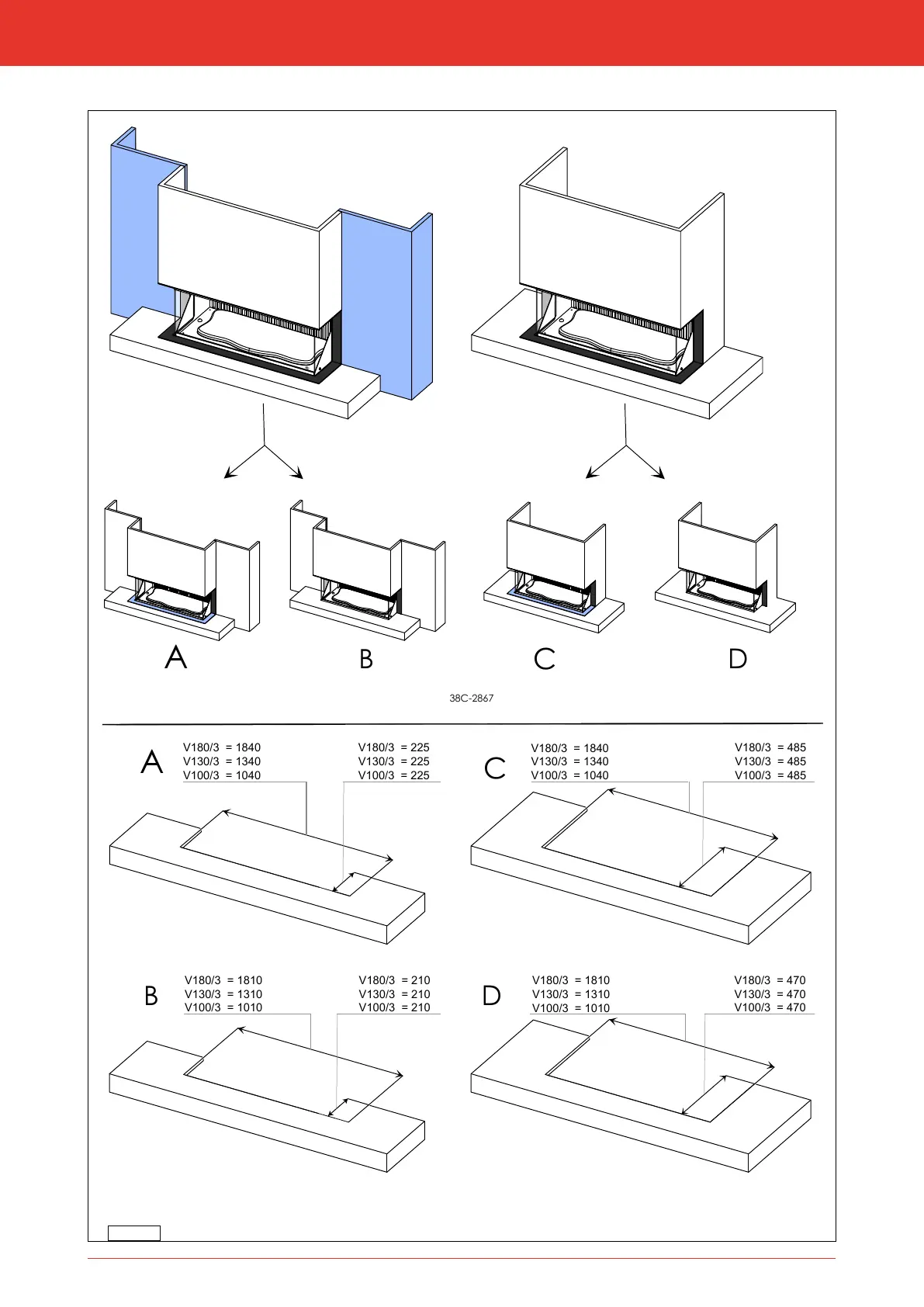

A
B
C
D
C
A
B
D
38C-2867
V180/3 = 1840
V130/3 = 1340
V100/3 = 1040
V180/3 = 225
V130/3 = 225
V100/3 = 225
V180/3 = 485
V130/3 = 485
V100/3 = 485
V180/3 = 1840
V130/3 = 1340
V100/3 = 1040
V180/3 = 210
V130/3 = 210
V100/3 = 210
V180/3 = 1810
V130/3 = 1310
V100/3 = 1010
V180/3 = 470
V130/3 = 470
V100/3 = 470
V180/3 = 1810
V130/3 = 1310
V100/3 = 1010
Virtuo 100/3, Virtuo 130/3, Virtuo 180/3
7-14
installatie- en gebruikershandleidingInstallation manual
