47
Step 2
1

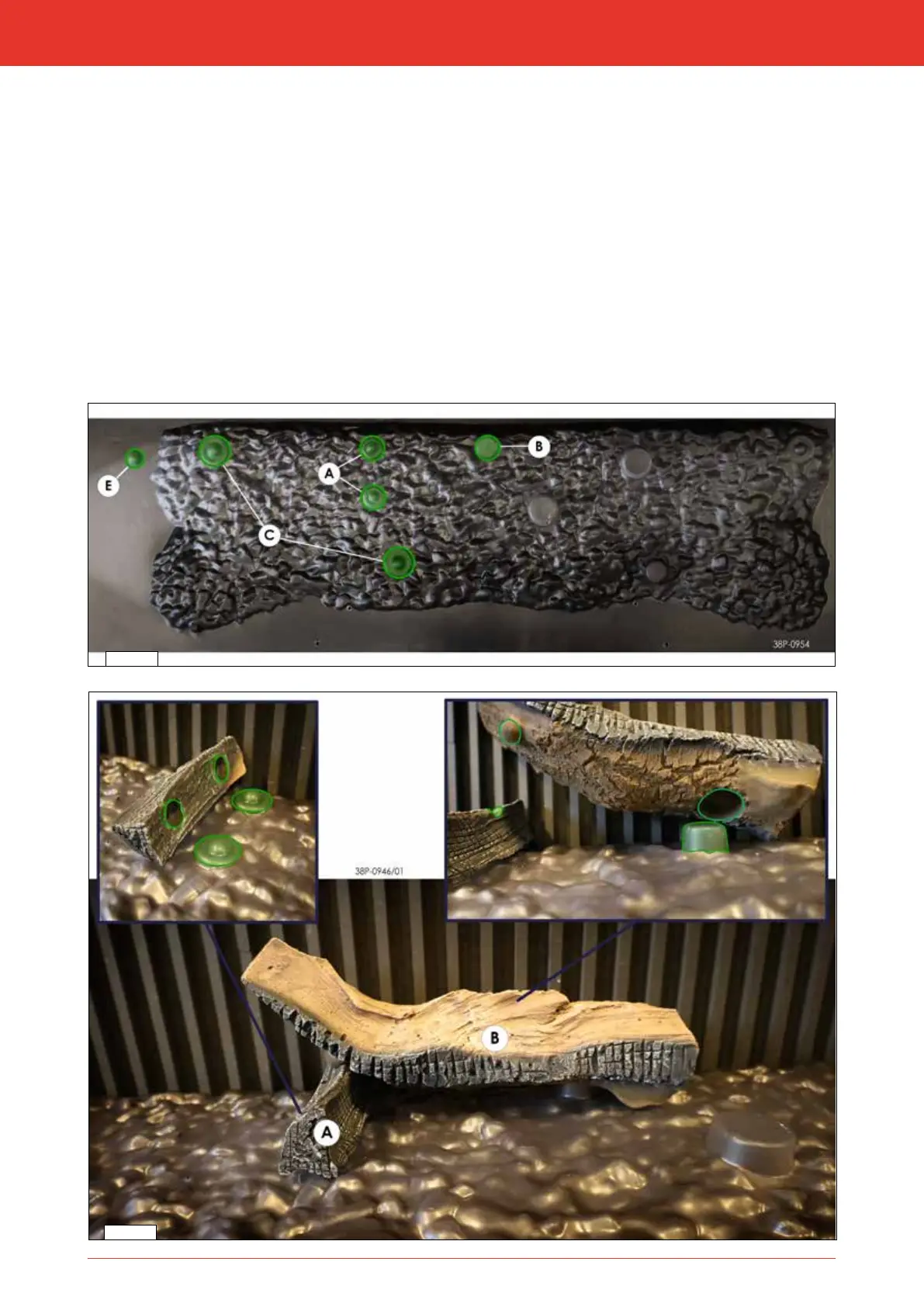

Take log A and place it on the two small positioning cams in the centre rear of the stove (g. 8-53 and 8-54).
Then place log B perpendicularly across log A, whereby the right side ts on a cam (g. 8-53) on the glow bed.
This causes the cam at the bottom of log B to fall into the recess of log A (g. 8-54).
1
Take log C and place it on the centre left rear and centre left front positioning cams (g. 8-53 and 8-55).
1
Take log E and place the left side on the most left positioning cam on the glow bed (g. 8-53).
Then allow the positioning cam at the bottom of log E to rest on the recess of log C (g. 8-55).
8-54
8-53
Installation manual
