PowerSeries - PC1616/PC1832/PC1864
10
3.3.1 Programming Toggle Options:
Enter the 3-digit programming section number:
3.3.2 Programming Decimal and Hexadecimal (HEX) Data:
• Enter the 3-digit programming section number.
• The Armed light will turn OFF and the Ready light will turn ON.
• Enter the data written in the boxes.
For sections that require multiple 2- or 3-digit numbers, the keypad will beep twice after each 2- or 3-digit entry and move to the next item in
the list. After the last digit in the section is entered, the keypad will beep rapidly 5 times and exit the program section. The Ready light will
turn OFF and the Armed light will turn ON.
For sections that do not require data for every box (such as phone numbers), press the [#] key to exit the program section after entering all the
required data. The Ready light will turn OFF and the Armed light will turn ON.
At any time the [#] key can be pressed to exit any program section. All changes made up to that point will be saved.
3.3.3 How to Exit Installer Programming:
To exit installer programming, press the [#] key when the panel is waiting for a 3-digit section number (the Armed light is ON).
3.3.4 Viewing Programming
LED and LCD5501Z Keypads
LCD Keypad
The keypad will immediately display all the information programmed when a programming section is entered. Use the arrow keys (< >) to
scroll through the data being displayed. Scroll past the end of the data displayed or press the [#] key to exit the section.
• The Armed light will turn OFF and
• The Ready light will turn ON.
• The keypad will display which toggle options are ON or OFF
according to the chart.
• To toggle an option ON or OFF, press the corresponding num-
ber on the keypad. The display will change accordingly.
Keypad Type Option ON Option OFF
LED Zone Light ON Zone Light OFF
Fixed-Message LCD Indicator # ON Indicator # OFF
Programmable-Message LCD # Displayed Dash [-]
Displayed
• When all the toggle options are configured correctly, press the [#] key to exit the program section.
• The Ready light will turn OFF and the Armed light will turn ON.
HEX (or hexadecimal) digits are sometimes required. To enter a HEX digit, press the
[
,] key to begin HEX programming. The Ready light will flash.
Refer to the following chart and press the number corresponding to the HEX digit
required. The Ready light will continue to flash. Press [
,] again to return to normal
decimal programming. The Ready light will turn ON.
Value Enter Telephone Dialer
HEX [A]
HEX [B]
HEX [C]
HEX [D]
HEX [E]
HEX [F]
Press [,][1][,]
Press [,][2][,]
Press [,][3][,]
Press [,][4][,]
Press [,][5][,]
Press [,][6][,]
Not Supported
Simulated [,] key
Simulated [#] key
Dial tone search
Two second pause
End of Number
In addition to the standard digits 0-9, HEX digits and special dialer functions can also be programmed.

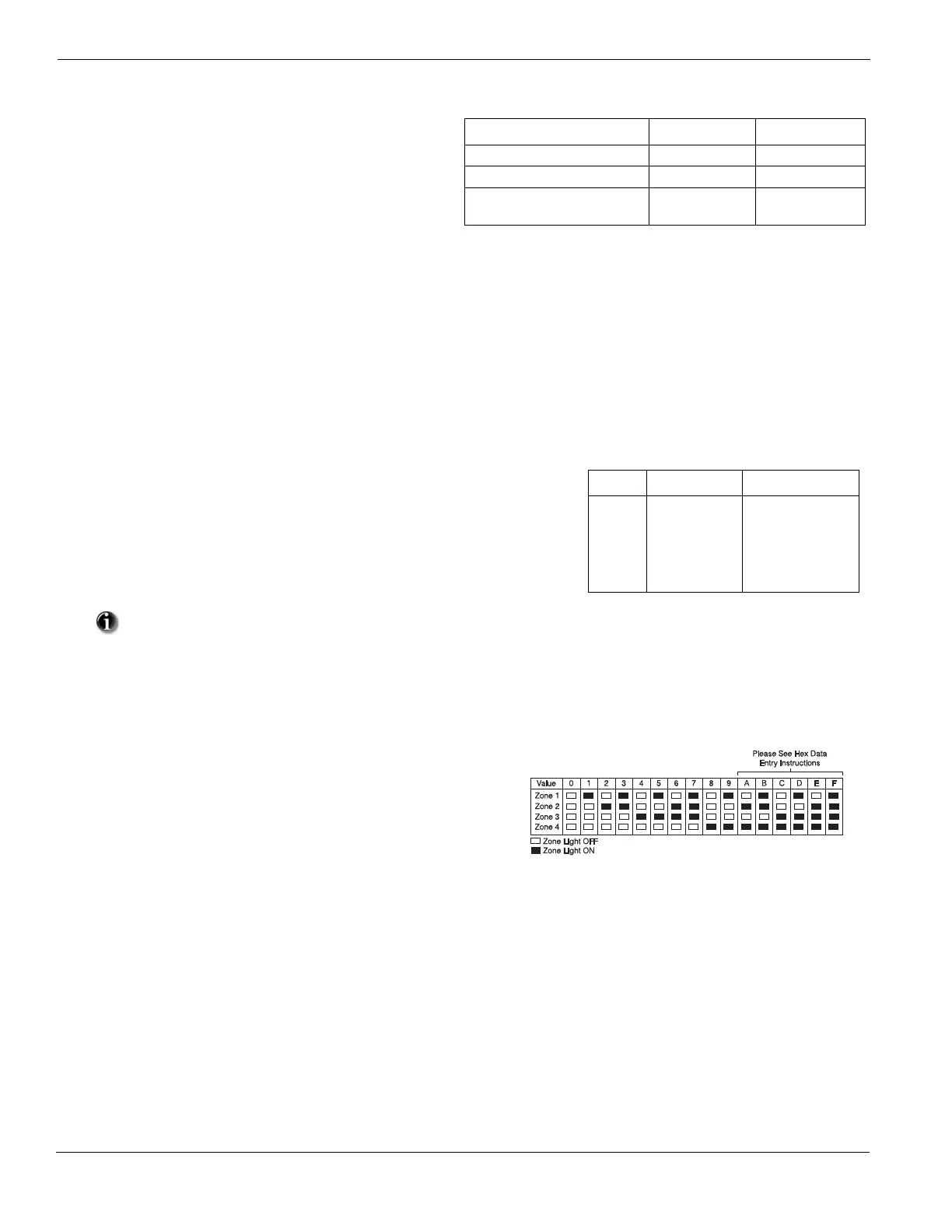

Any programming section can be viewed from an LED or LCD5501Z
keypad. When a programming section is entered, the keypad will immedi-
ately display the first digit of information programmed in that section.
The keypad displays the information using a binary format, according to
the following chart:
Press any of the Emergency keys (Fire, Auxiliary or Panic) to advance to
the next digit.
When all the digits in a section have been viewed, the panel will exit the section. The Ready light will turn OFF, and the Armed light
will turn ON. The system is now waiting for the next 3-digit programming section number to be entered. Press the [#] key to exit the
section.
