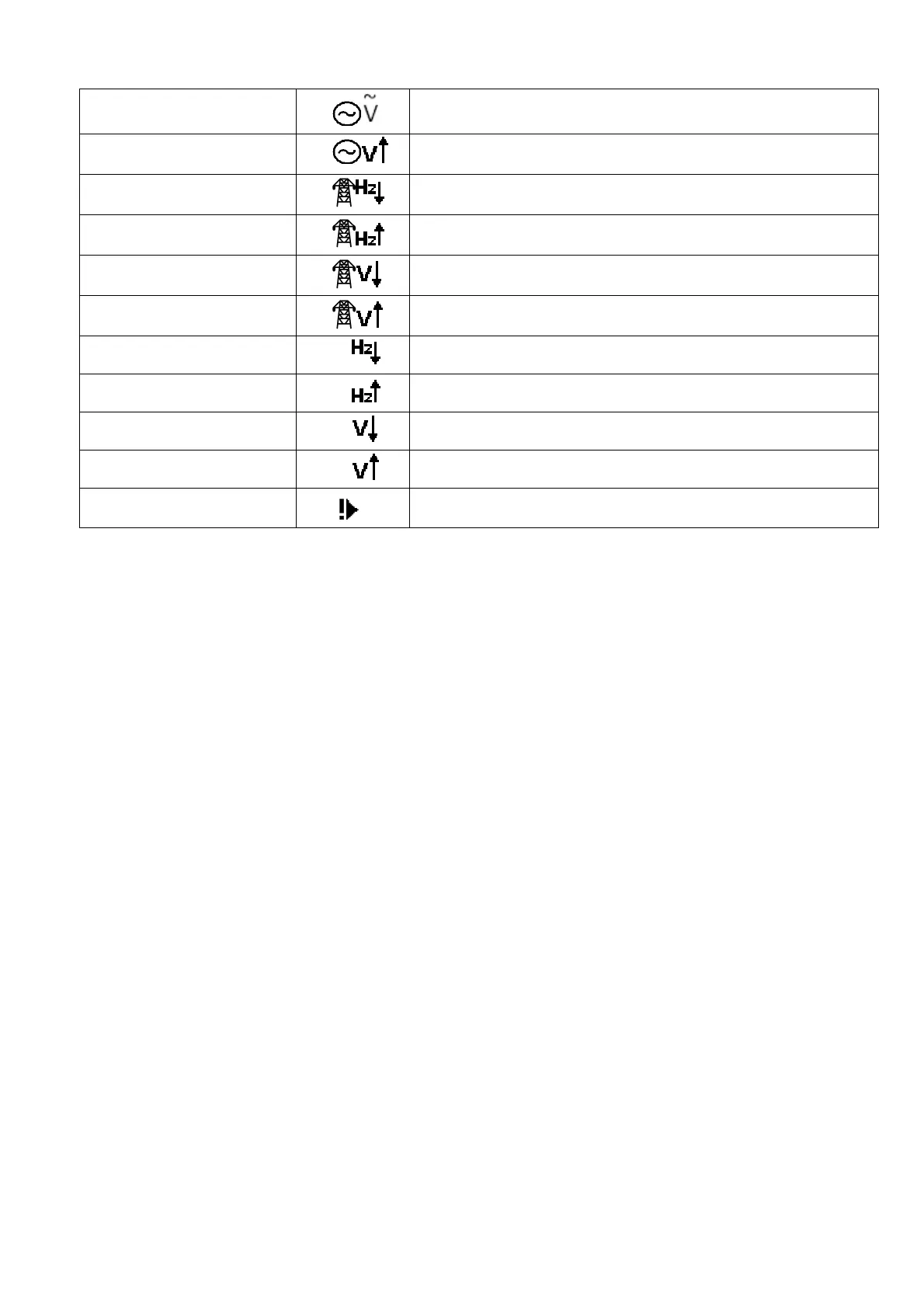

Description of Controls
23
S2 as Generator Loading
Voltage
S2
S2 loading voltage has not achieved the level to load
S2 as Generator Over
Voltage
S2
S2 output voltage has risen above the preset level
S2 as Mains Under
Frequency
S2
S1 output frequency has fallen below the preset level
S2 as Mains Over Frequency
S2
S2 output frequency has risen above the preset level
S2 as Mains Under Voltage
S2
S1 output voltage has fallen below the preset level
S2 as Mains Over Voltage
S2
S1 output voltage has risen above the preset level
S1 Under Frequency
S1
S1 output frequency has fallen below the preset level
S1 Over Frequency
S1
S1 output frequency has risen above the preset level
S1 Under Voltage
S1
S1 output voltage has fallen below the preset level
S1 Over Voltage
S1
S1 output voltage has risen above the preset level
Digital Input A-K
1
Auxiliary Digital inputs can be user configured as Digital inputs and will
display the relevant icon.
