Adjusting the position of the gearchange
pedal and rear brake pedal
Gear change pedal
The position of the gearchange and rear brake levers
in relation to the footpegs can be adjusted to suit the
requirements of the rider.
To adjust the position of the gear shift lever, proceed
as follows: hold the linkage (1) and slacken the lock
nuts (2) (3/8” flat) and (3) (3/8” flat).
Note
Nut (2) has a left-hand thread.
Fit an open-end wrench to flat (A) and rotate linkage
(1) until setting pedal in the desired position.
Tighten both lock nuts onto linkage (5 Nm).

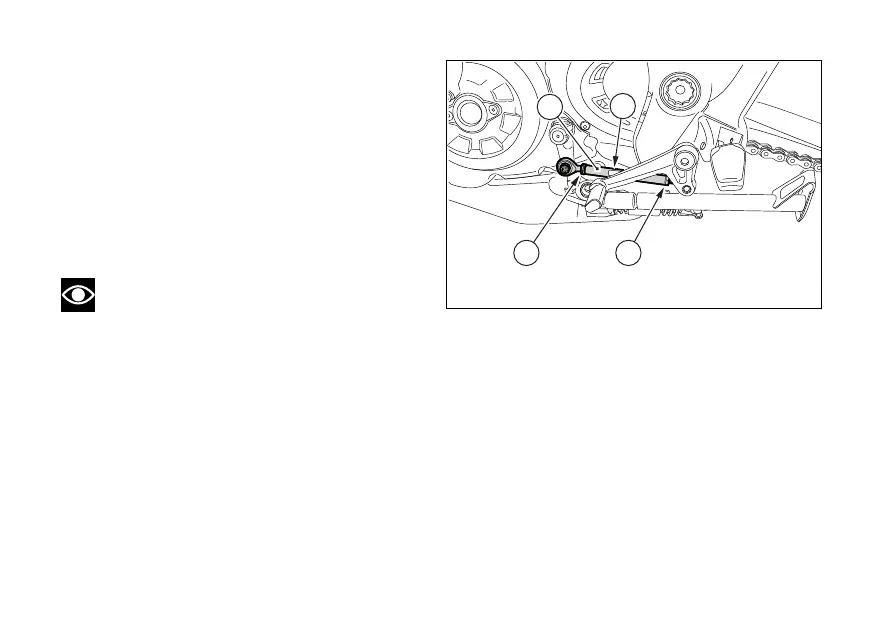

Fig. 143
204
