Checking drive chain tension
Important
Have chain tension adjusted by a Ducati Dealer
or authorised Service Centre.
Make the rear wheel turn until you find the position
where chain is tightest. Set the motorcycle on the
side stand. With just a finger, push down the chain at
the point of measurement and release. Measure the
distance (A) between the centre of the chain pins and
the aluminium section of the swinging arm. It must
be: A = 31 ÷ 33 mm (1.22÷1.30 in).
Important
If drive chain is too tight or slack, adjust tension
so as to bring values back to the specified range.

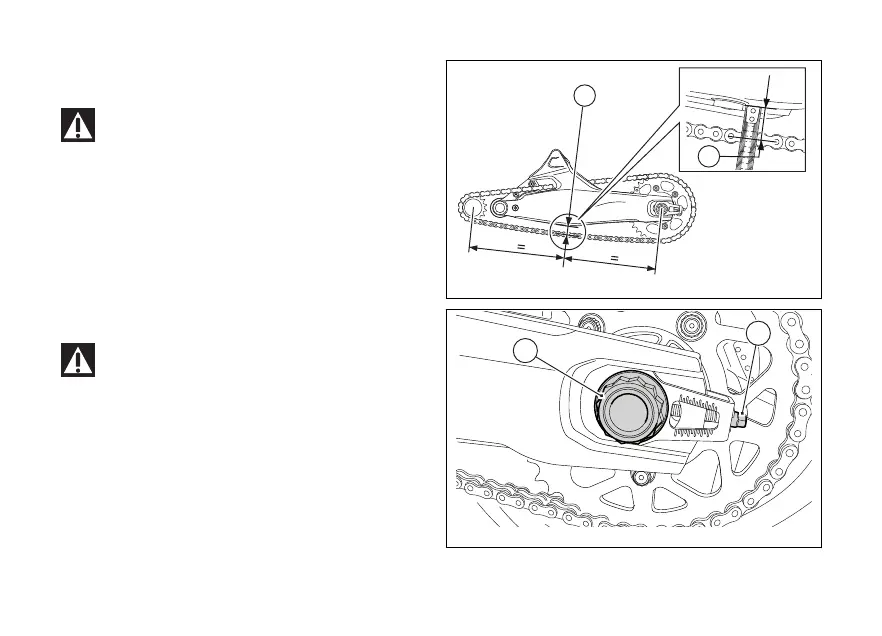

Fig. 203
Fig. 204
253
