Seat lock
OPENING

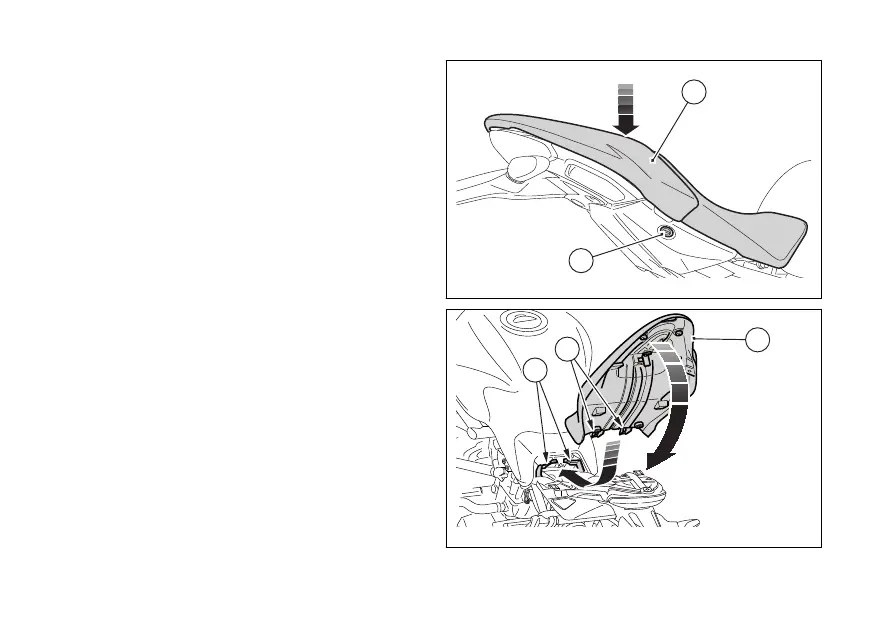

Insert the key in lock (1), turn clockwise while
pressing down at the latch to help release the pin.
Remove the seat (2) pulling it backwards until sliding
it out of the front retainers.
CLOSING
Make sure that all elements are correctly positioned
and fastened to the compartment under the seat (2).
Engage seat bottom front tabs (A) on tank bracket (B)
fastened to rear subframe. Hold seat rear end lifted,
push on the central fastener to engage it: push on
seat rear end until latch clicks in place. Make sure the
seat is safely secured to the frame and remove the
key from the lock.
Fig. 149
Fig. 150
208
