Parameter setting and displaying

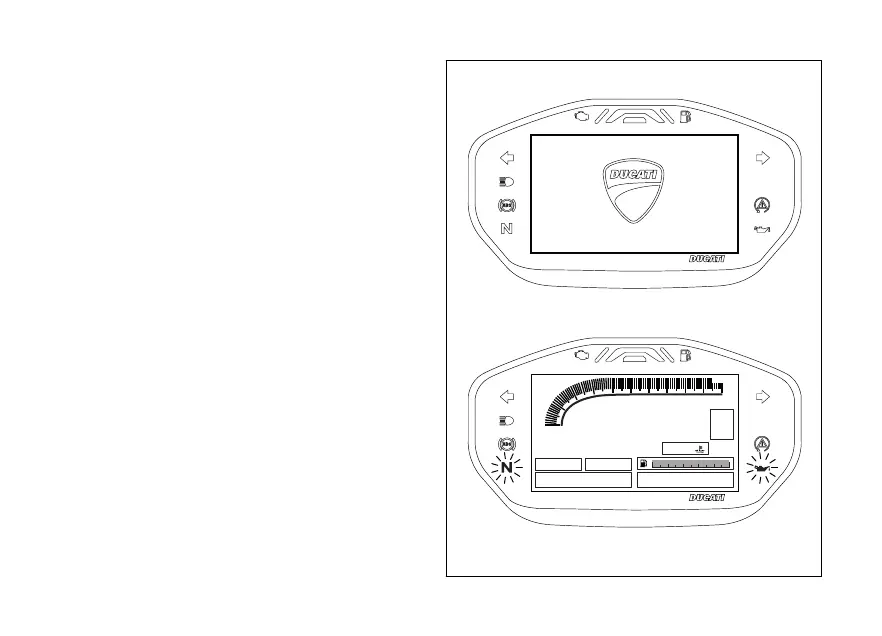

Upon key-on, the instrument panel displays the
DUCATI logo and switches on the LED warning lights
in two steps ("initial check routine").
After this routine, the instrument panel displays the
main page in one of the available layouts (CORE,
FULL or TRACK), depending on the one in use before
last KEY-OFF.
During this first check stage, if the motorcycle speed
exceeds 10 km/h (6 mph) (actual speed), the
instrument panel will stop:
- the display check routine and display the standard
screen containing updated information;
- the warning light check routine and leave ON only
the warning lights that are actually active at the
moment.
299
10:34
PM
LAP
URBAN
98
65
3
4
2
1
7
10
11
km /h
HIGH
RPM x 1000
TOT Km
199999
T AIR °C
°C
-39
N
ABS 1 DTC 3
Fig. 6
31
