Warning
Correct tightening of the swingarm screws (2) is
essential to rider and passenger safety.
Important
Improper chain tension will lead to early wear of
transmission parts.
Check the correspondence of the positioning marks
on both sides of the swinging arm to ensure a perfect
wheel alignment. Grease the wheel shaft nut thread
(1) with SHELL Retinax HDX2 and tighten it, together
with nut (3) on the RH side, to a torque of 180 Nm
(132.76 lbf ft).
Grease the adjuster screws (2) thread with SHELL
Alvania R3 and tighten them to a torque of 10 Nm
(7.37 lbf ft).

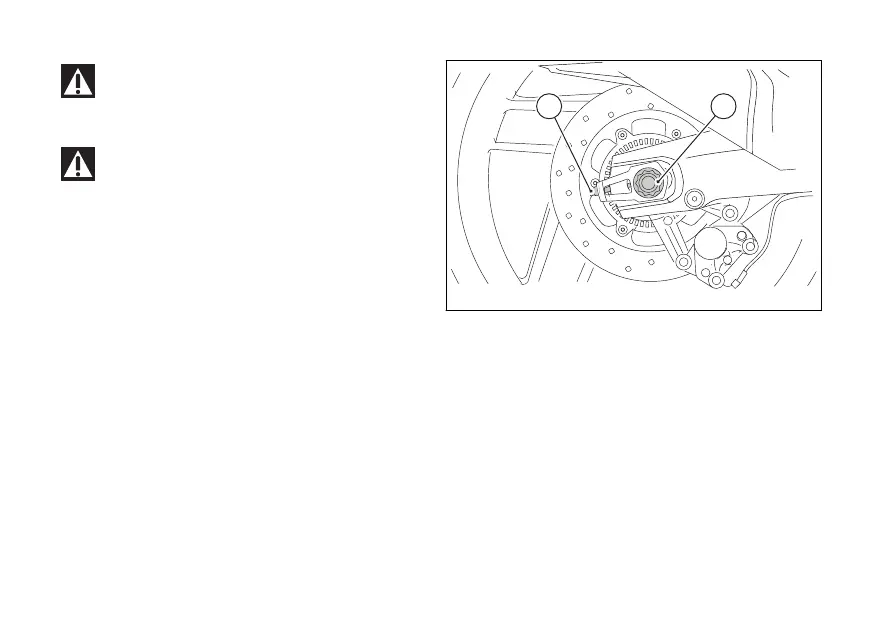

Fig. 205
