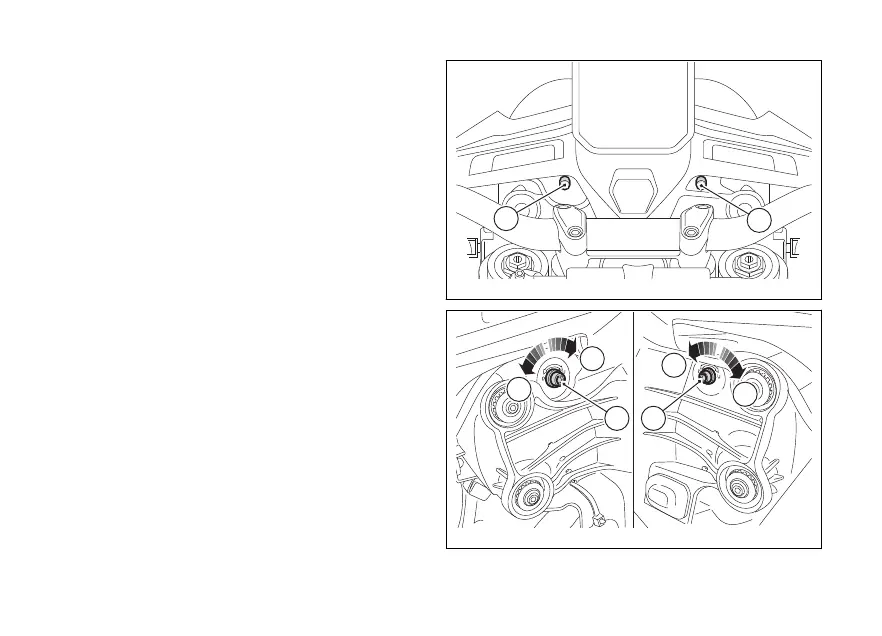

Working on LH screw (1), adjust LH low beam and
high beam 
Working on RH screw (2), adjust RH low beam and
high beam 
Switch low beam on and cover the right low beam.
Adjust the uncovered low beam   by
working the adjusting screw (1). To gain easy access
to screw (1), we recommend turning the steering all
the way right, and use the supplied wrench to work
on screw (1).
Turn on and check also the LH low beam, working on
screw (1), if necessary.
Turn screw (1) clockwise to move beam up (UP), or
counter clockwise to move beam down (DOWN).
Once the LH low and high beams have been
adjusted, cover the LH side of the headlight unit and
carry out the same procedure using screw (2) to
adjust the RH low and high beams.
Turn screw (1) clockwise to move beam up (UP), or
counter clockwise to move beam down (DOWN).
The headlight lens might fog up if the vehicle is used
under the rain or  washing. Switch headlight on
for a  time to dry up any condensate.
ROAD
OFF
2
1
Fig 190
1
D
U
D
U
2
Fig 191
280

Ducati SCRAMBLER 2023 Specifications

General

Displacement	803 cc
Max Power	73 hp (54 kW) @ 8, 250 rpm
Fuel Injection	Electronic fuel injection, 50 mm throttle body
Transmission	6-speed
Front Suspension	Kayaba 41 mm upside-down fork
Rear Suspension	Kayaba rear shock, pre-load adjustable
Frame	Tubular steel Trellis frame
Front Tire	110/80 R18
Rear Tire	180/55 R17
Engine Type	L-Twin, Desmodromic distribution, air-cooled
Front Brake	330 mm disc, radial 4-piston caliper
Rear Brake	245 mm disc, 1-piston floating caliper
Dry Weight	170 kg (375 lbs)
Fuel Tank Capacity	13.5 l (3.6 US gal)
