Ducati SCRAMBLER 2023 User Manual

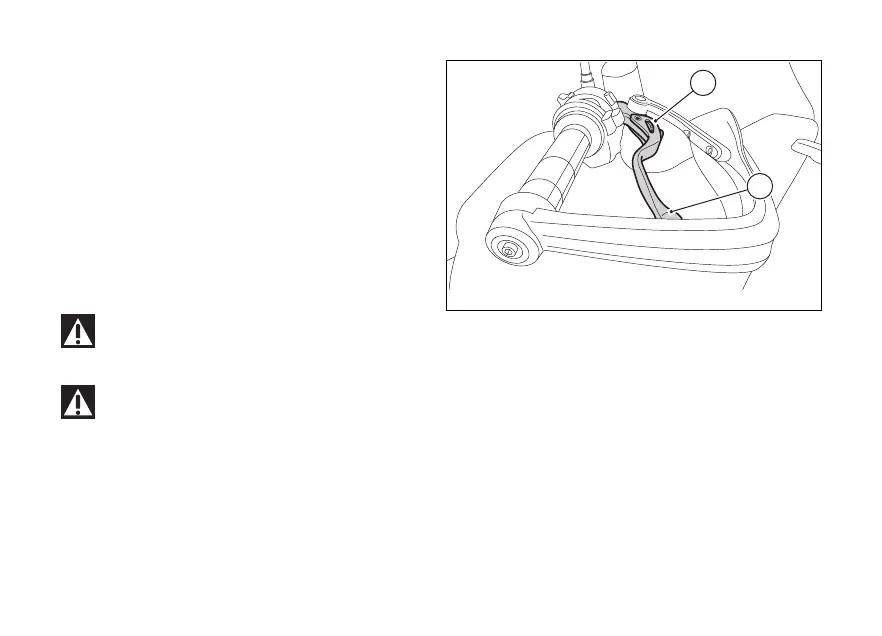

Front brake lever

Pull in the lever (1) towards the handgrip to operate
the front brake. The system is hydraulically operated
and you just need to pull the lever gently.
The control lever (1) has a dial (2) for adjusting the
distance between lever and handgrip.
The lever distance can be adjusted through 33 clicks
of the dial (2).
Turn clockwise to increase lever distance from the
twistgrip. Turn the adjuster anticlockwise to
decrease lever distance.

Before using these controls, thoroughly read
instructions under paragraph "Moving 

Set front brake lever when motorcycle is
stopped.
1
2
Fig 45
81

Ducati SCRAMBLER 2023 Specifications

General

Displacement	803 cc
Max Power	73 hp (54 kW) @ 8, 250 rpm
Fuel Injection	Electronic fuel injection, 50 mm throttle body
Transmission	6-speed
Front Suspension	Kayaba 41 mm upside-down fork
Rear Suspension	Kayaba rear shock, pre-load adjustable
Frame	Tubular steel Trellis frame
Front Tire	110/80 R18
Rear Tire	180/55 R17
Engine Type	L-Twin, Desmodromic distribution, air-cooled
Front Brake	330 mm disc, radial 4-piston caliper
Rear Brake	245 mm disc, 1-piston floating caliper
Dry Weight	170 kg (375 lbs)
Fuel Tank Capacity	13.5 l (3.6 US gal)
