Ducati SCRAMBLER 2023 User Manual

Maintaining the  charge

The electric system of this motorcycle is
designed so as to ensure there is a very low power
drain when the motorcycle is OFF.  the
 features a  self-discharge rate that is
normal and depends on ambient conditions as well
as on "non-use" time.

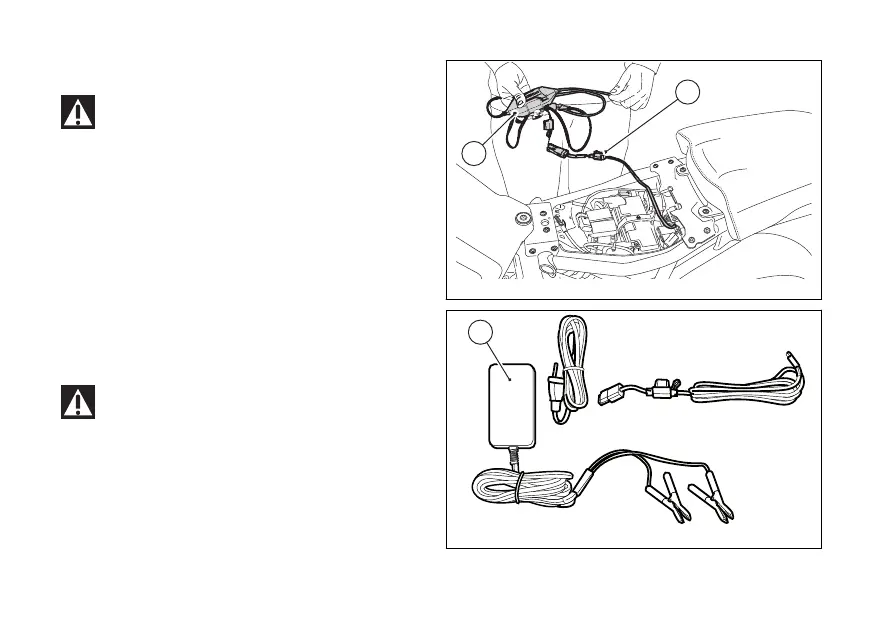

If  is not kept at a minimum charge level by
the  charger / charge maintainer (A), 
could get damaged if voltage drops under 8 V.
Connector (1) is located under the rider seat, on the
LH back side of the underseat 
To gain access, remove the rider seat as described in
chapter “Seat lock”.

Use only the Ducati-approved  charger
(A) for lithium  also as a maintainer.
Do not use the  charge maintainer kit  no.
69924601A (various countries) or  charge
maintainer kit no. 69924601AX (for Japan, China and
Australia only), as it is specific for lead 
1
A
Fig 23
A
Fig 24
53

Ducati SCRAMBLER 2023 Specifications

General

Displacement	803 cc
Max Power	73 hp (54 kW) @ 8, 250 rpm
Fuel Injection	Electronic fuel injection, 50 mm throttle body
Transmission	6-speed
Front Suspension	Kayaba 41 mm upside-down fork
Rear Suspension	Kayaba rear shock, pre-load adjustable
Frame	Tubular steel Trellis frame
Front Tire	110/80 R18
Rear Tire	180/55 R17
Engine Type	L-Twin, Desmodromic distribution, air-cooled
Front Brake	330 mm disc, radial 4-piston caliper
Rear Brake	245 mm disc, 1-piston floating caliper
Dry Weight	170 kg (375 lbs)
Fuel Tank Capacity	13.5 l (3.6 US gal)
