DUNE HD Base 3.0 - Exterior View and Ports

Dune HD Base 3.0 user manual
8
HD BASE 3.0
Exterior

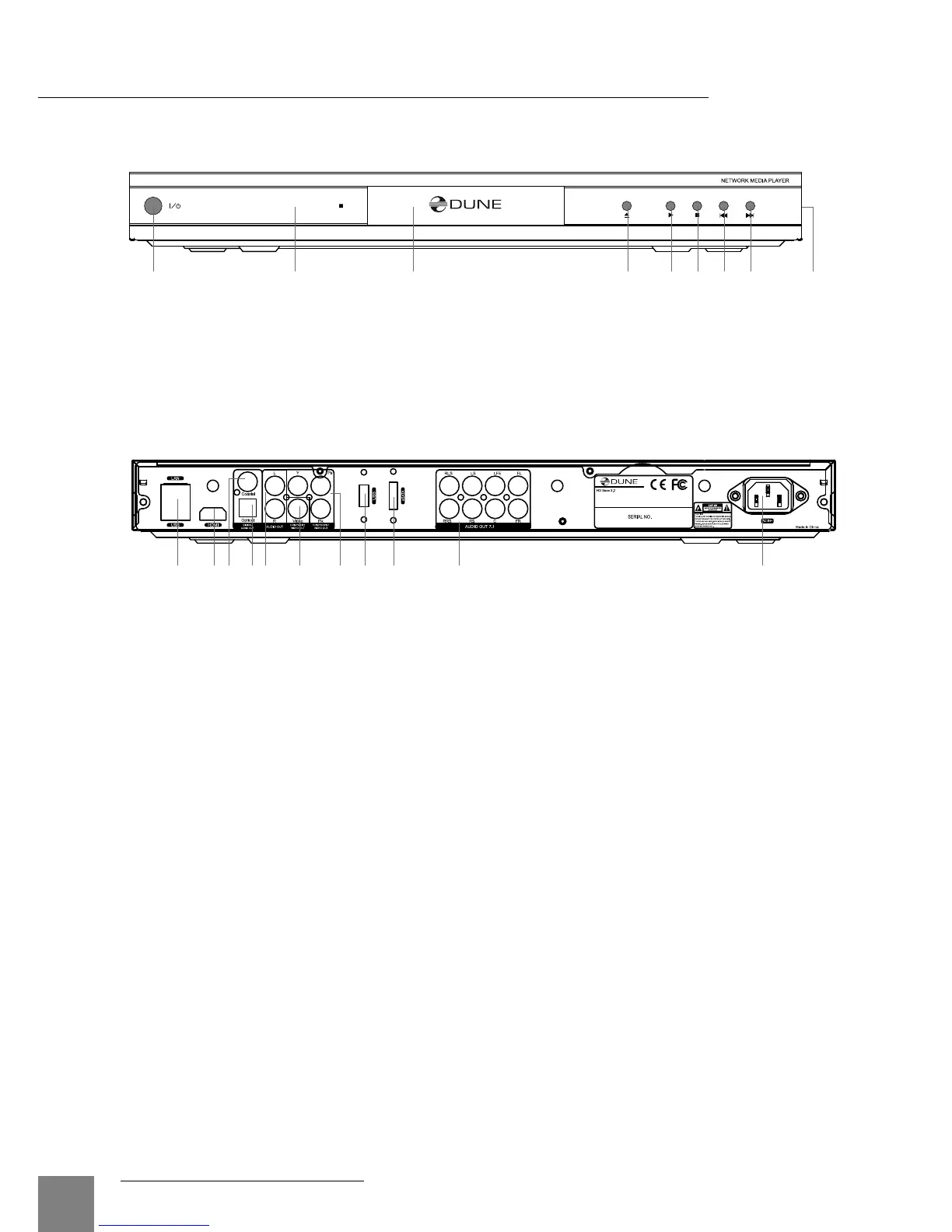

Front view
Rear view
123
1. Power switch
2. Display
3. HDD rack
4. EJECT
5. PLAY/PAUSE
6. STOP
7. PREV
8. NEXT
9. USB 2.0 host
1. LAN and USB 2.0 host
2. HDMI 1.3
3. Coaxial digital audio output
4. Optical digital audio output
5. Analog stereo (left/right) audio
output
6. Composite video output
7. Component (Y/Pb/Pr) video output
8. USB 2.0 host
9. eSATA host
10. Multichannel (7.1) analog audio output
11. AC power
45678 9
NETWORK MEDIA PLAYER
12356 7 9810 114
