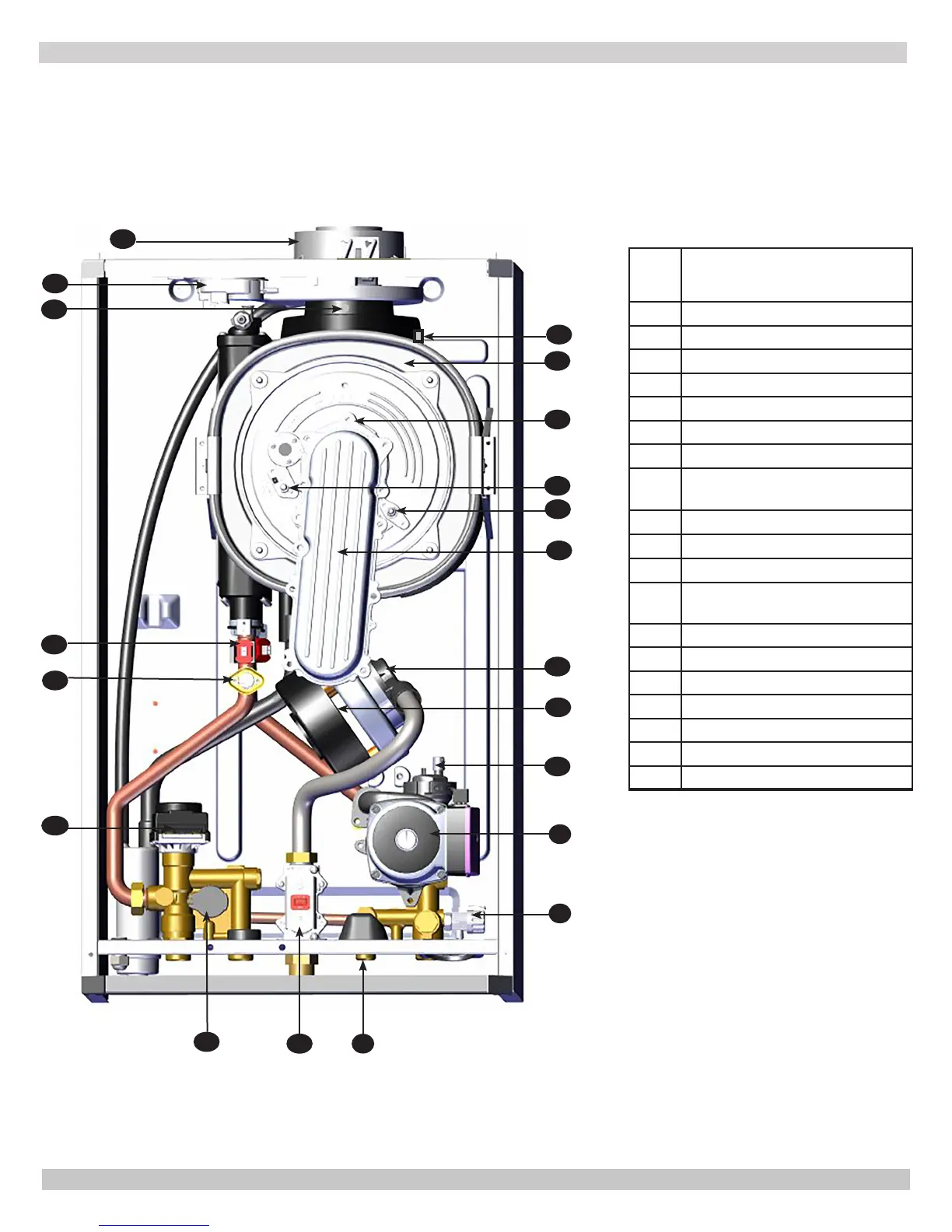

3 - COMPONENT LISTING
Illustrations are a depiction of the boiler for general location of parts and may vary depending on model.
ITEM
NO.
Dunkirk
DCB 125
1 Pump with Air Separator
2 Boiler Drain Tap
3 Boiler Filling Tap
4 Gas Valve
5 Low Water Pressure Cutoff
6 3-Way Valve with Motor
7
Water Safety Thermostat
8
NTC Heating sensor (Flow/Return)
QTY 2, (1 Shown for clarity)
9 Flue Sensor
10
Pressure Switch
11 Coaxial Flue Connector
12
Heat Exchanger Temperature
Sensor
13 Heat Exchanger
14 Burner (not shown)
15 Ignition electrode
16 Flame Detection Electrode
17 Air/Gas Manifold
18 Venturi
19 Fan
2
1
11
6
9
7
8
15
16
4
14
19
17
18
13
5
25
3
12
10
240011947 REV B, [03/31/2018]
DUNKIRK - DCB 125
