Dunkirk DCC-150 - Boiler Controls

49

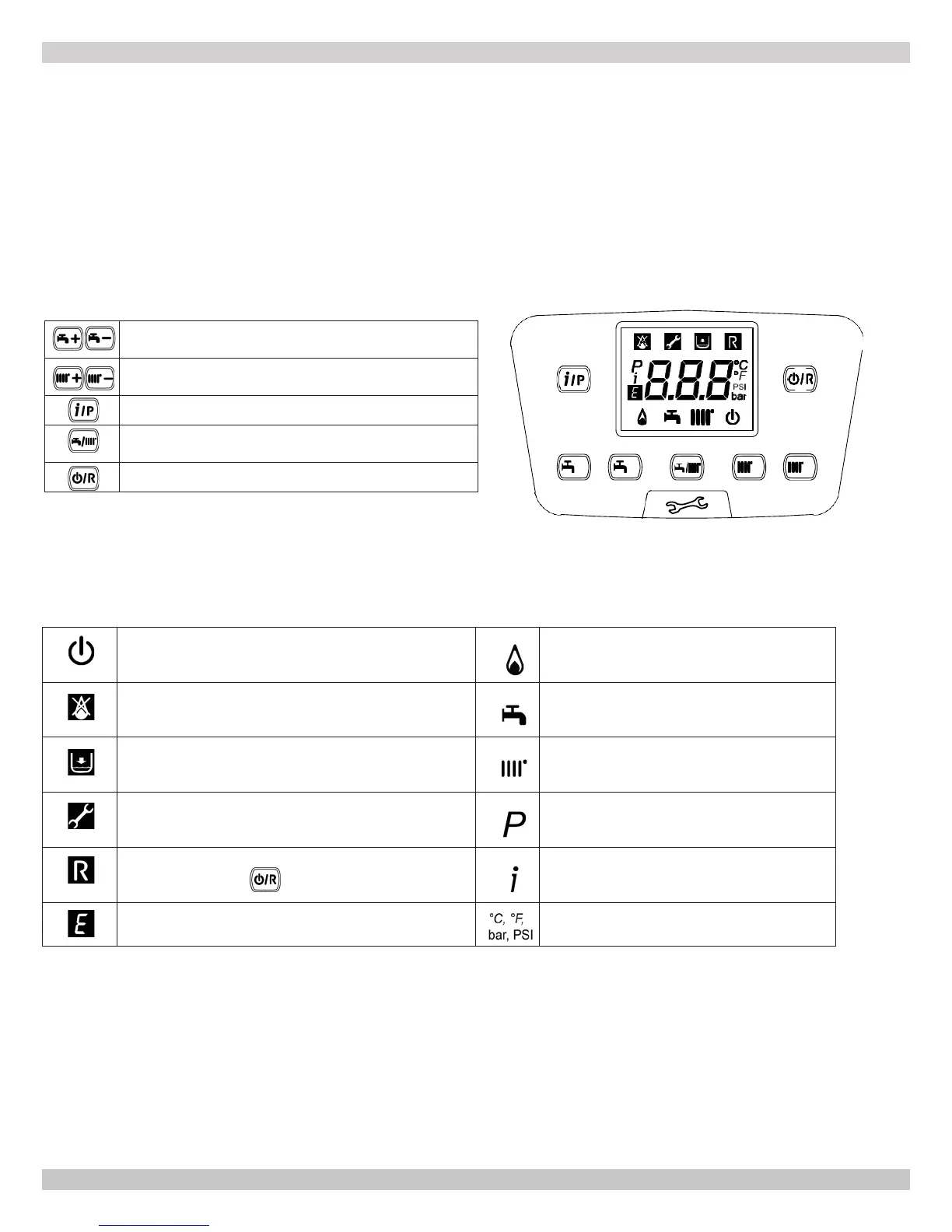

DHW temperature adjustment
(+ to increase the temperature and – to decrease it)
Heating water temperature adjustment
(+ to increase the temperature and – to decrease it)
Boiler operating information
Operating mode:
DHW – DHW & Heating – Heating Only
Off – Reset – Exit menu/functions
BUTTON Key

+
+
oc
oF
PSI
bar
Off: Heating and DHW disabled
(only boiler frost protection is active)
Burner lit
Ignition fault DHW operating mode enabled
Boiler/system water pressure low Heating mode enabled
Call a qualied service technician Programming menu
Manual reset fault
Boiler information menu
Fault in progress Set unit of measurement
SYMBOL Key
10 - OPERATING INSTRUCTIONS
10.3 Boiler Controls
To light boiler correctly, proceed as follows:
• Check system pressure is correct;
• Power boiler;
• Open gas tap (positioned under boiler);
• Select required heating mode. See section 10.4
Operating Modes.
240011947 REV B, [03/31/2018]
