LOW MASS - WIRING DIAGRAM

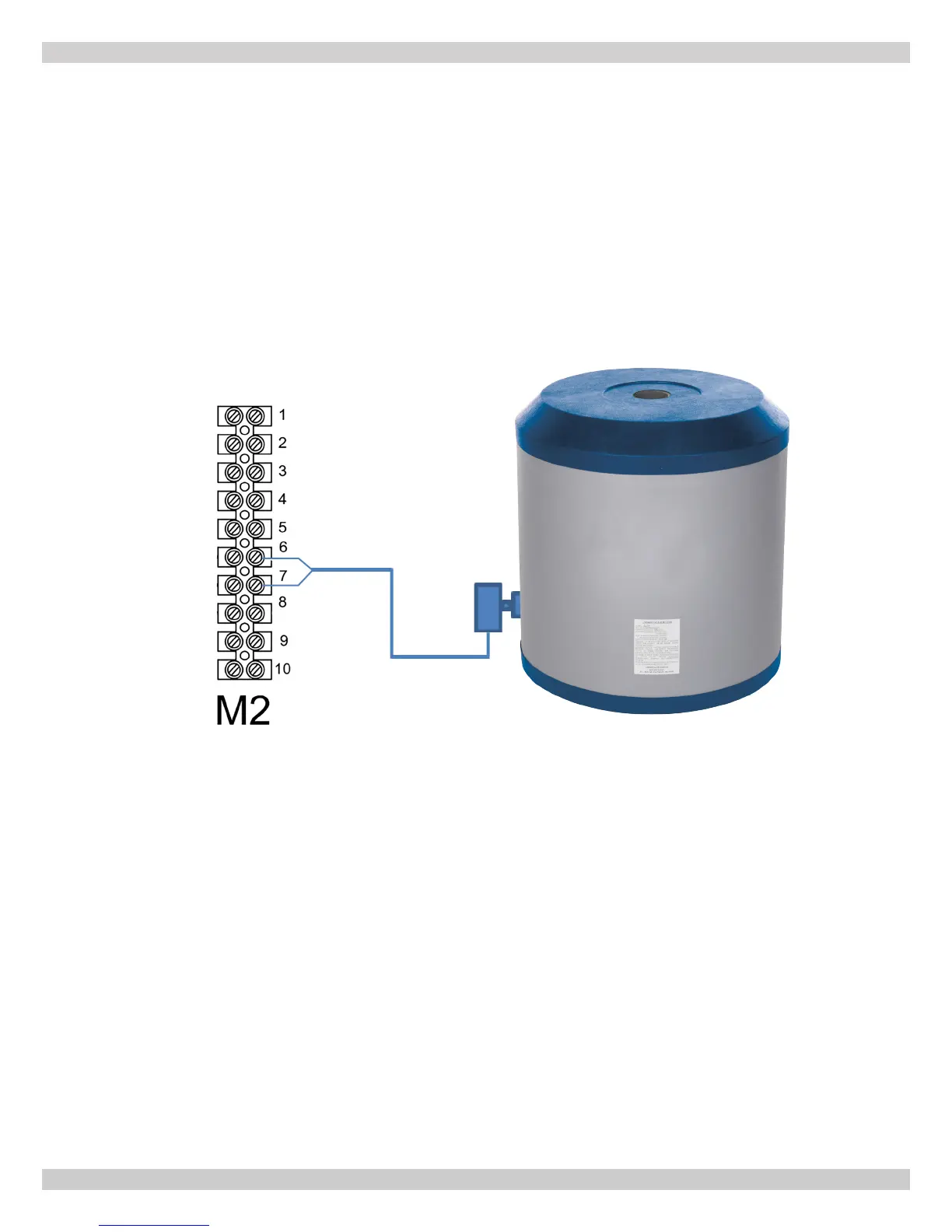

Low Mass Boiler Wiring with Buffer Tank
Connect the buffer tank aquastat to terminals 6 and 7 on
terminal block M2.
System wiring remains as shown in the previous wiring
diagrams.
H20 BUFFER
TANK
H2O Stainless
Steel Buffer
Tank
