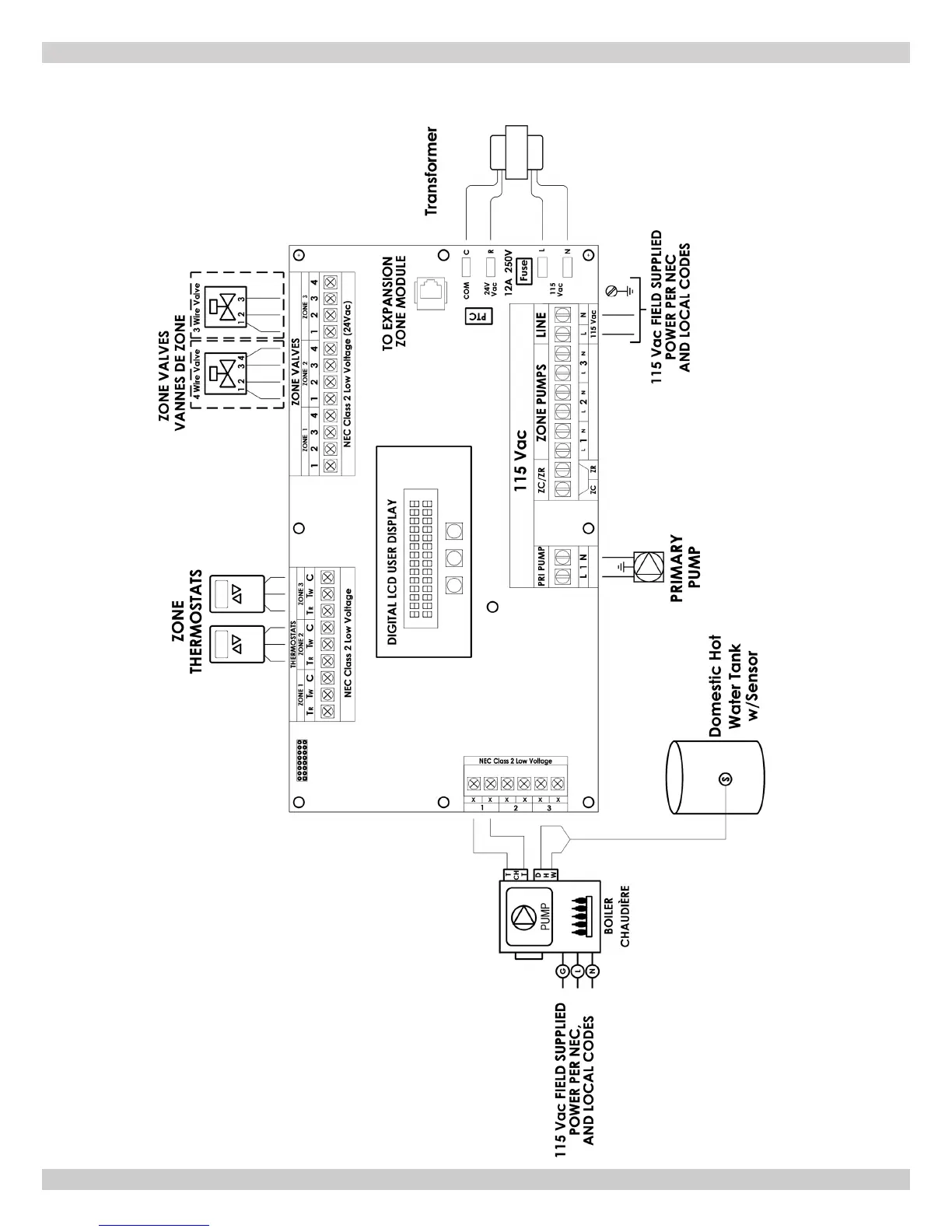

125 WITH ZONE VALVES, DHW TANK & TANK SENSOR - - WIRING DIAGRAM
125 with Zone Valves
125 With Zone Valves, DHW Tank & Tank Sensor
If adding an indirect tank with sensor to a Heating
Only Boiler, change P03 from 08 to 05.
See Section 9, Parameter Settings in Boiler
Installation, Operation & Maintenance Manual for
details.
Reference zone control
manufacturer instructions for
details on setting priority if
necessary.
PN 240011430 REV G, [03/31/18]
