Duplo DBM-150 - Belt Stacker

1-9
Chapter 1 Before Operation
2-4. Belt stacker
[1]
[3]
[2]
[4]

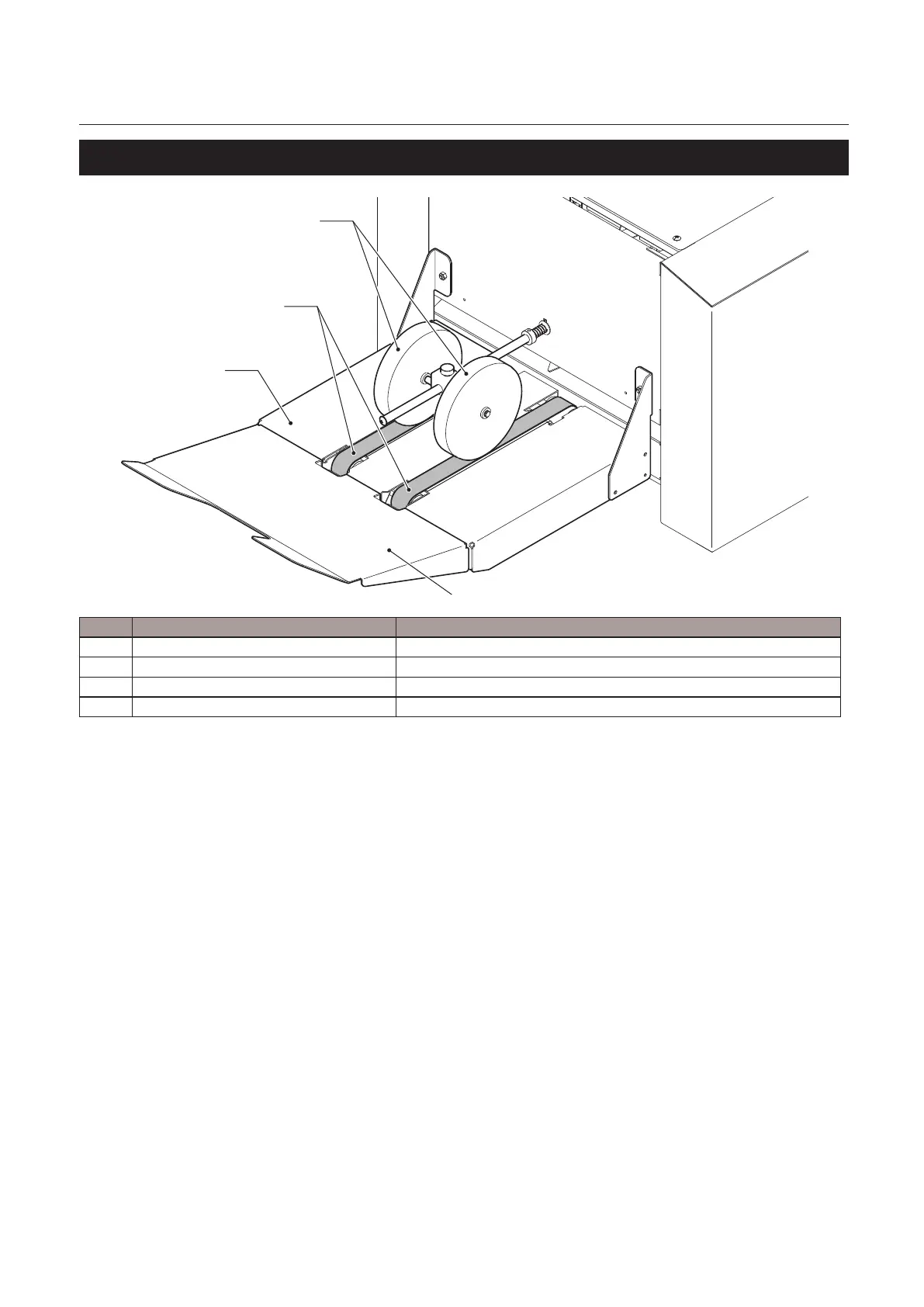

No. Name Function
[1] Belt stacker Booklets are ejected here from the DBM-150 or the DBM-150T.
[2] Conveyance belt Conveys paper.
(p.4-1)
[3] Paper guide roller Holds a booklet as an aid for the belt stacker.
(p.2-11)(p.2-20)
[4] Ejection tray Ejected booklets are stacked on this tray.
