Chapter 3 Advanced Operation
2-2. Attaching the lower conveyance unit (L) and the side guide unit
1
Follow steps 1 through 8 in “3-1.
Adjusting the position of the stapler” in
Chapter 2.
(p.2-5)
2

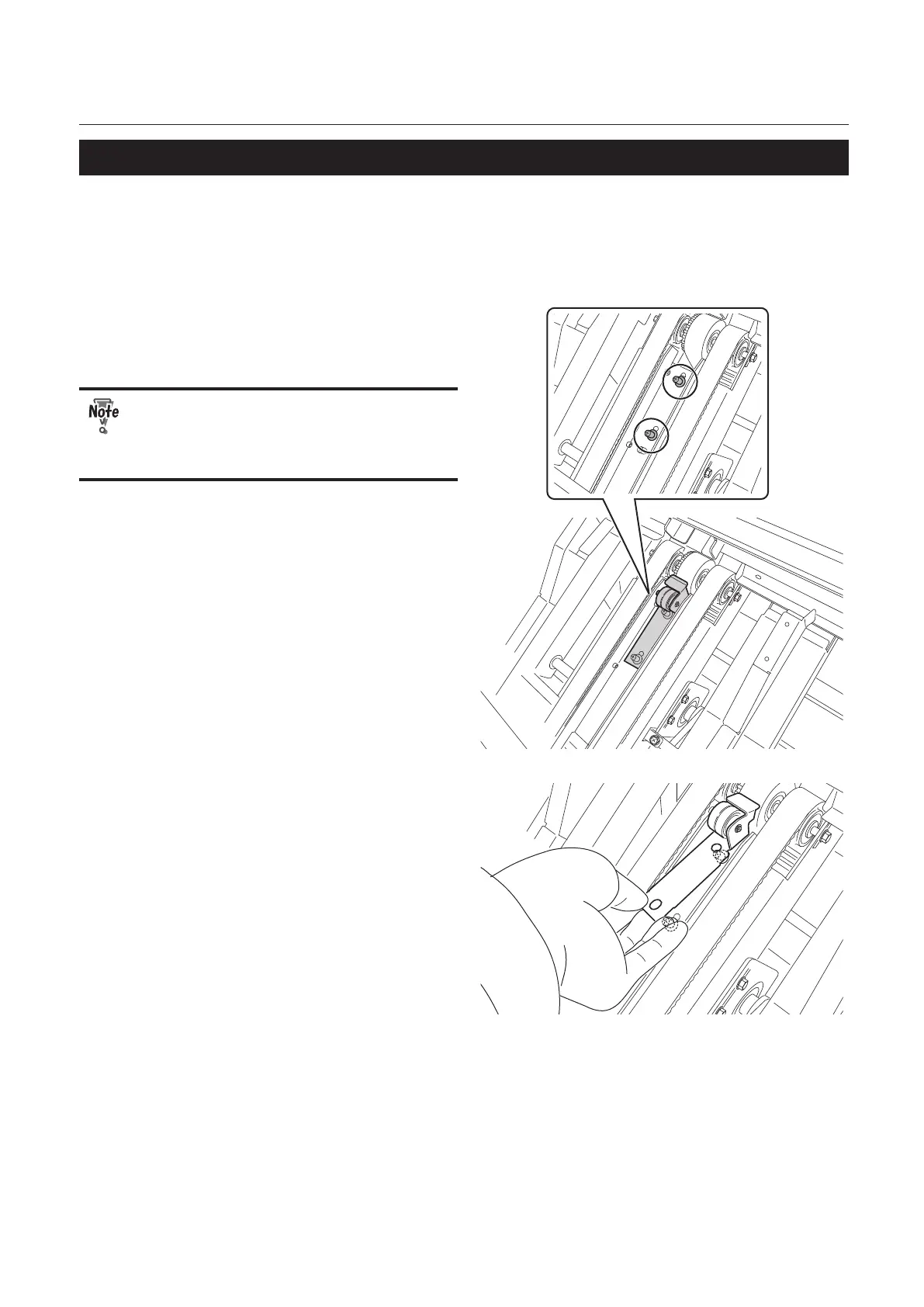

Align the upper studs (2) in the infeed
section with the holes (2) of the lower
conveyance unit (L) to secure them with
the magnet.
When feeding all the sheets manually at a
time, do not attach the lower conveyance
unit (L). Doing so may cause a paper jam.
Attach only the upper conveyance unit.
(p.3-15)
As shown in the gure, align the upper stud
with the upper hole of the lower conveyance
unit (L) rst.
