Duplo DBM-150 User Manual

2-18
Chapter 2 Basic Operation
Paper feed direction
A
B
2
Depending on the folding
misalignment, move the folding
misalignment adjustment either to the
operator’s side or to the non-operator’s
side.
For A: Move the adjustment to the non-
operator’s side.
For B: Move the adjustment to the operator’s
side.
3
Tighten the folding misalignment
adjustment.
4
If the folding position varies depending
on a booklet even after adjusting the
position using the folding misalignment
adjustment, increase the value for [Fold
Start T] in the function menu.
The folding start timing will be slower.

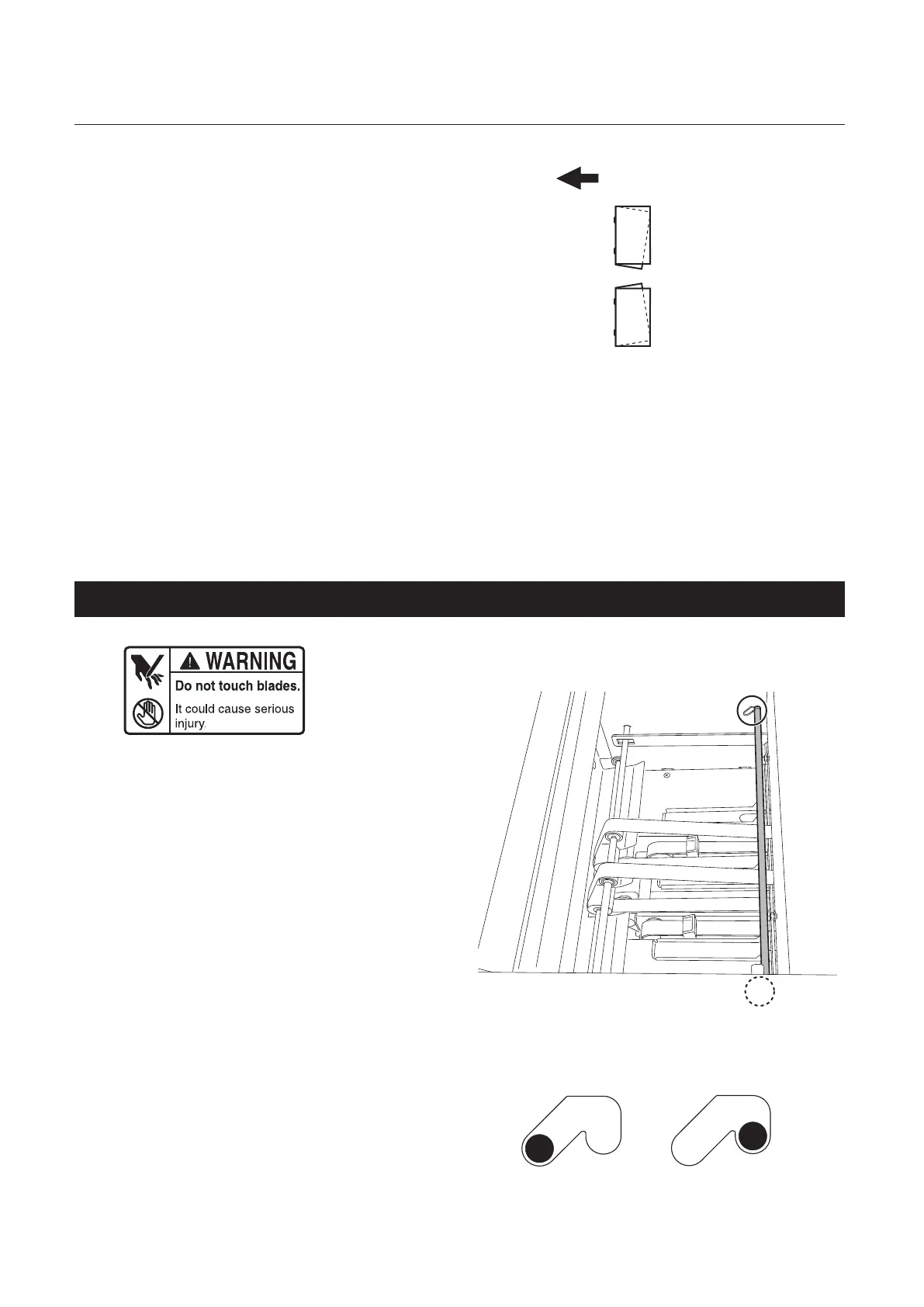

7-2. Adjusting the roller gap
The roller gap adjustment lever of the DBM-
150T is normally set to the upper position. If
booklets are not smoothly conveyed, change
the position.
- Booklet is thin
When the roller gap adjustment lever is
in the upper position, set it to the lower
position to narrow the gap.
- Booklet is thick
When the roller gap adjustment lever is
in the lower position, set it to the upper
position to widen the gap.
Narrow gap Wide gap
(standard position)
