Chapter 1 Before Operation

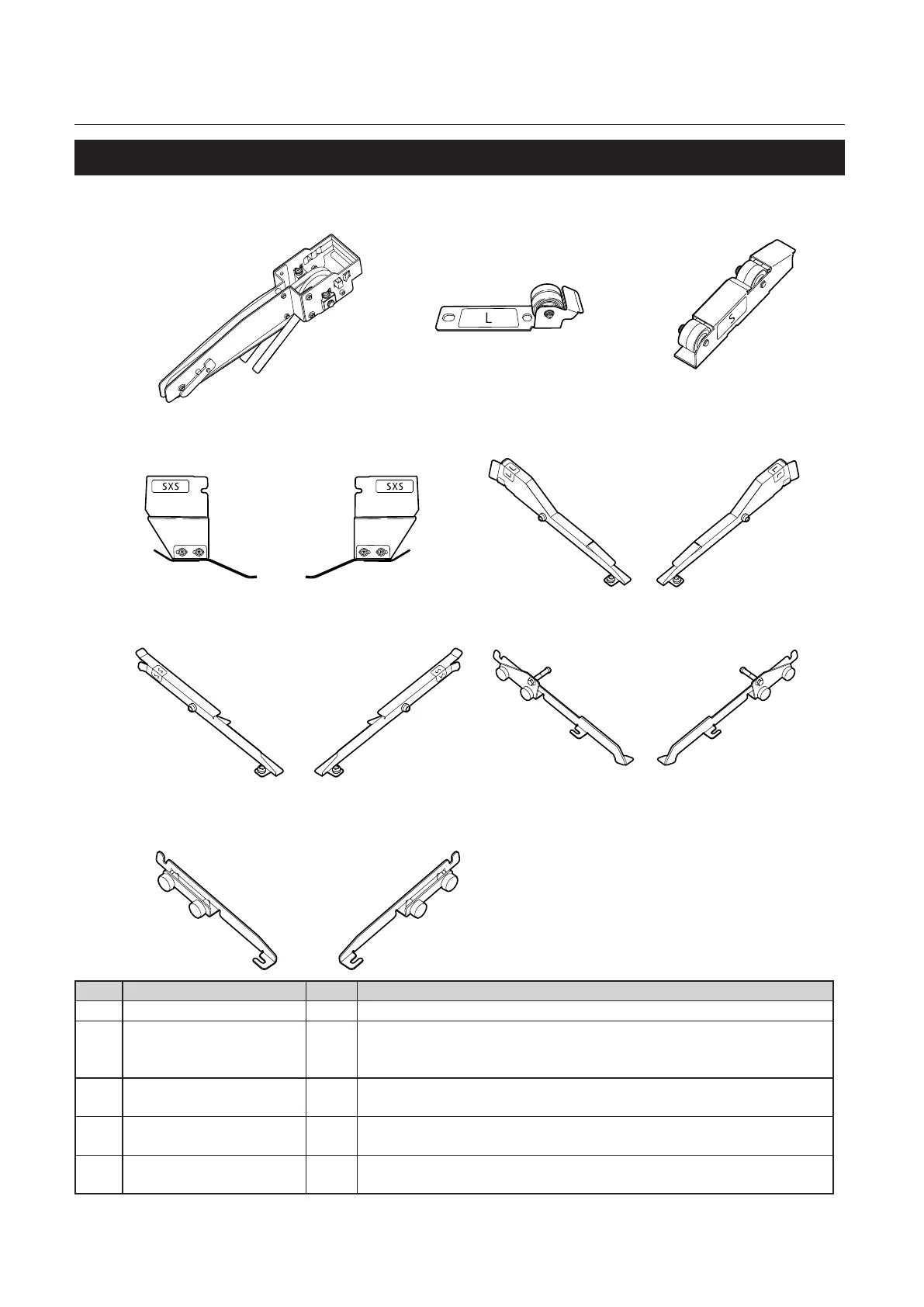

5-2. SXS MODIFICATION KIT
[1] [2] [3]
[4] [5] [6] [7]
[8] [9] [10] [11]
[12]
[13]
No. Name QTY Function
[1] Upper conveyance unit 1 Attach this to the DBM-150.
(p.3-7)(p.3-11)
[2] Lower conveyance unit (L) 1 Attach this to the DBM-150 when stapling paper whose length is 279
mm/10.98 inches or more or the CORNER AND SIDE STAPLE KIT is
attached.
(p.3-7)
[3] Lower conveyance unit (S) 1 Attach this to the DBM-150 when stapling paper whose length is less
than 279 mm/10.98 inches.
(p.3-11)
[4] SXS stapler guide F 1 When the stapler unit F has been attached to the label position "3,"
attach this to the stapler unit F.
(p.3-14)
[5] SXS stapler guide B 1 When the stapler unit B has been attached to the label position “3,”
attach this to the stapler unit B.
(p.3-14)
