1-11
Chapter 1 Before Operation

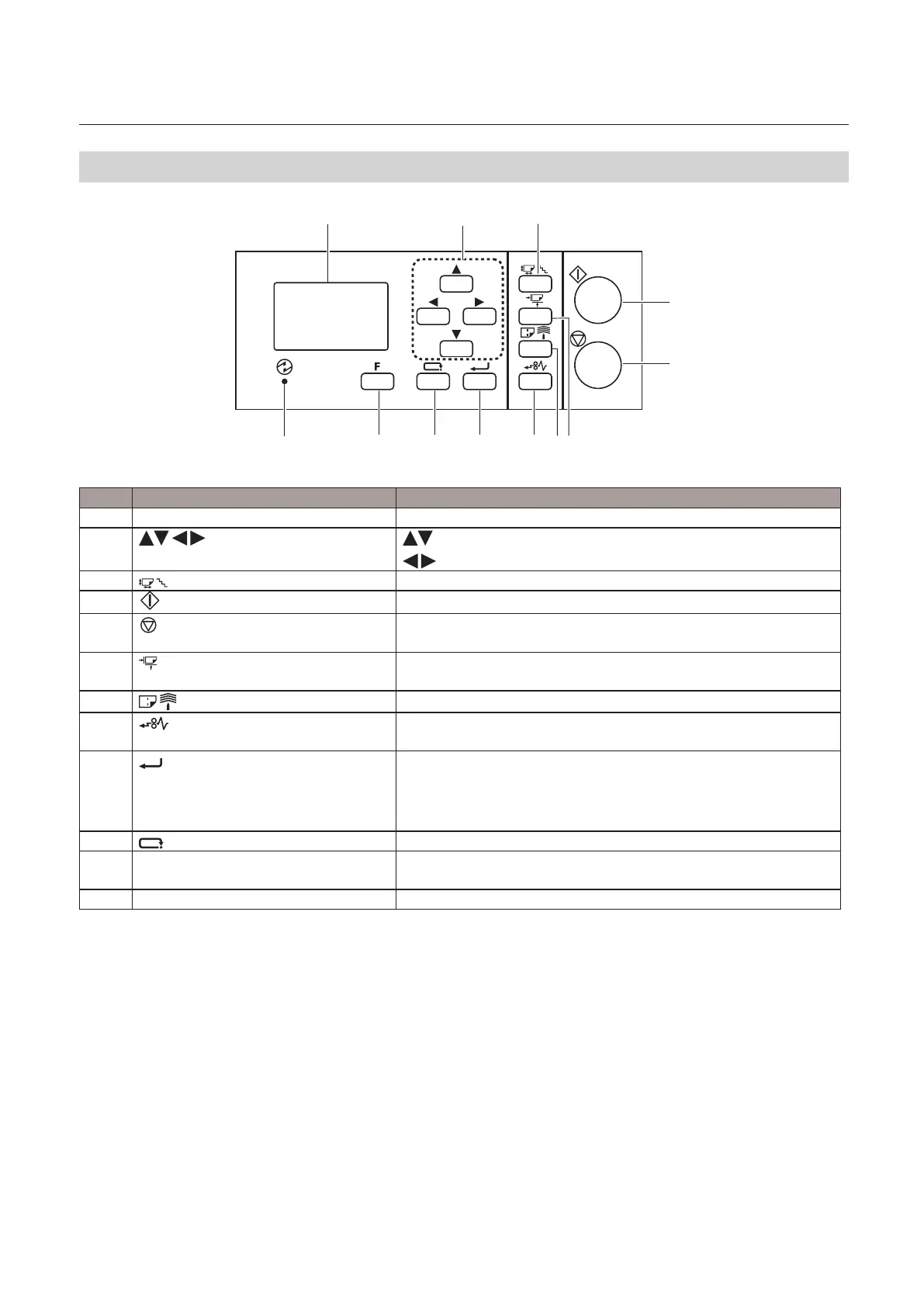

3. Names of Control Panel
[1] [2] [3]
[4]
[5]
[6][7][8][9][10][12] [11]
No. Name Function
[1] LCD display Displays menus and error messages.
[2] key key: press to change setting values or to select setting items.
key: press to change the settings and values.
[3] (ne adjustment) key Displays the ne adjustment menu.
[4]
(start) key
Starts manual feed operations. The upstream unit will not start.
[5]
(stop) key
Stops manual feed operations. After ejecting all the paper inside
the machine, the machine stops. The upstream unit will not stop.
[6] (jog) key When used in the step mode, starts jogging movements of the side
guides and back guide in the stapling section.
[7]
(process) key
Performs binding operations in the step mode.
[8] (paper ejection) key Ejects paper inside the machine forcibly. While being held down,
the machine continues ejecting motion.
[9] (return) key Pressing the key with the top screen displayed displays the setting
menu. Also used to conrm selections and settings.
*When the sheet feeder or the DFC-100 is connected to the DBM-
150 as a upstream unit, the setting menu is not displayed.
[10] (cancel) key Cancels selections and settings.
[11] F (function) key Displays the function menu when pressed with the top screen
displayed.
[12] Lamp When the machine is in the power saving mode, the lamp blinks.
To Next Page
