Chapter 1 Before Operation

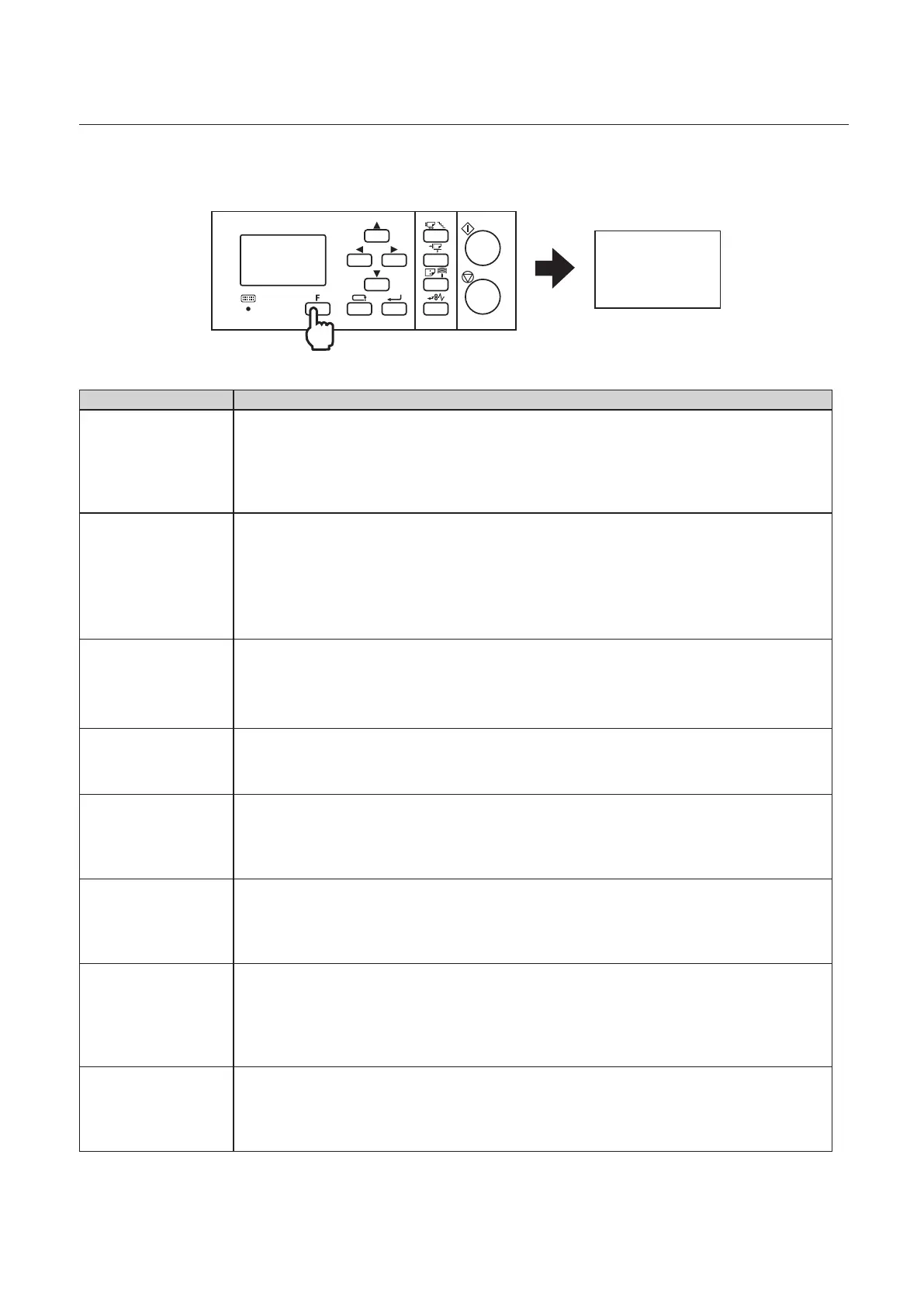

4-2-2. Function Menu
The function menu is displayed if you press the
F
key with the top screen displayed.
No. of Jogs
Function
Fold Start T
1
0
The setting items displayed vary depending on a upstream unit connected.
(p.1-16)
Setting item Setting details
No. of Jogs Specify the number of jogging to align paper in the stapling section. When paper
alignment is poor, increase the number. The larger the number, the slower the processing
speed.
Adjustable range: 1 to 5
Default: 1
Fold Start T Specify the start timing of a folding operation. The larger the number, the slower the
timing and the processing speed.
Even after adjusting the folding position using the folding misalignment adjustment
(p.2-17)
, if
a folding position varies depending on a booklet, adjust the start timing.
Adjustable range: 0 to 5
Default: 0
Qty. Detect Specify whether to detect the remaining amount of staple.
[ON]/[OFF]
Default: [ON]
*Once turning o the power, the setting returns to [ON].
Buzzer Set Specify whether to activate the buzzer.
[ON]/[OFF]
Default: [ON]
Stack Start T Specify the timing to start turning the belt of the belt stacker. The larger the number, the
faster the timing. Adjust the timing when booklets do not align on the stacker.
(p.2-21)
Adjustable range: 0 to +9
Default: +4
Stack Oper T Specify how long the belt of the belt stacker keeps turning. Adjust the timing when
booklets do not align on the stacker.
(p.2-20)
Adjustable range: -2 to +6
Default: +2
T Conv.Stop* Specify the timing to stop conveyance when sending a booklet to the trimming position
stopper. When booklets do not reach the trimming position stopper or they knock against
the trimming position stopper and bounce back, adjust the timing.
(p.5-10)
Adjustable range: -30 to +30
Default: +0
Step Trim* When [Trimming On] has been selected in the setting menu, specify whether to trim paper
in the step mode.
[ON]/[OFF]
Default: [OFF]
* Displayed only when the DBM-150T is connected to the DBM-150 as a downstream unit.
