26

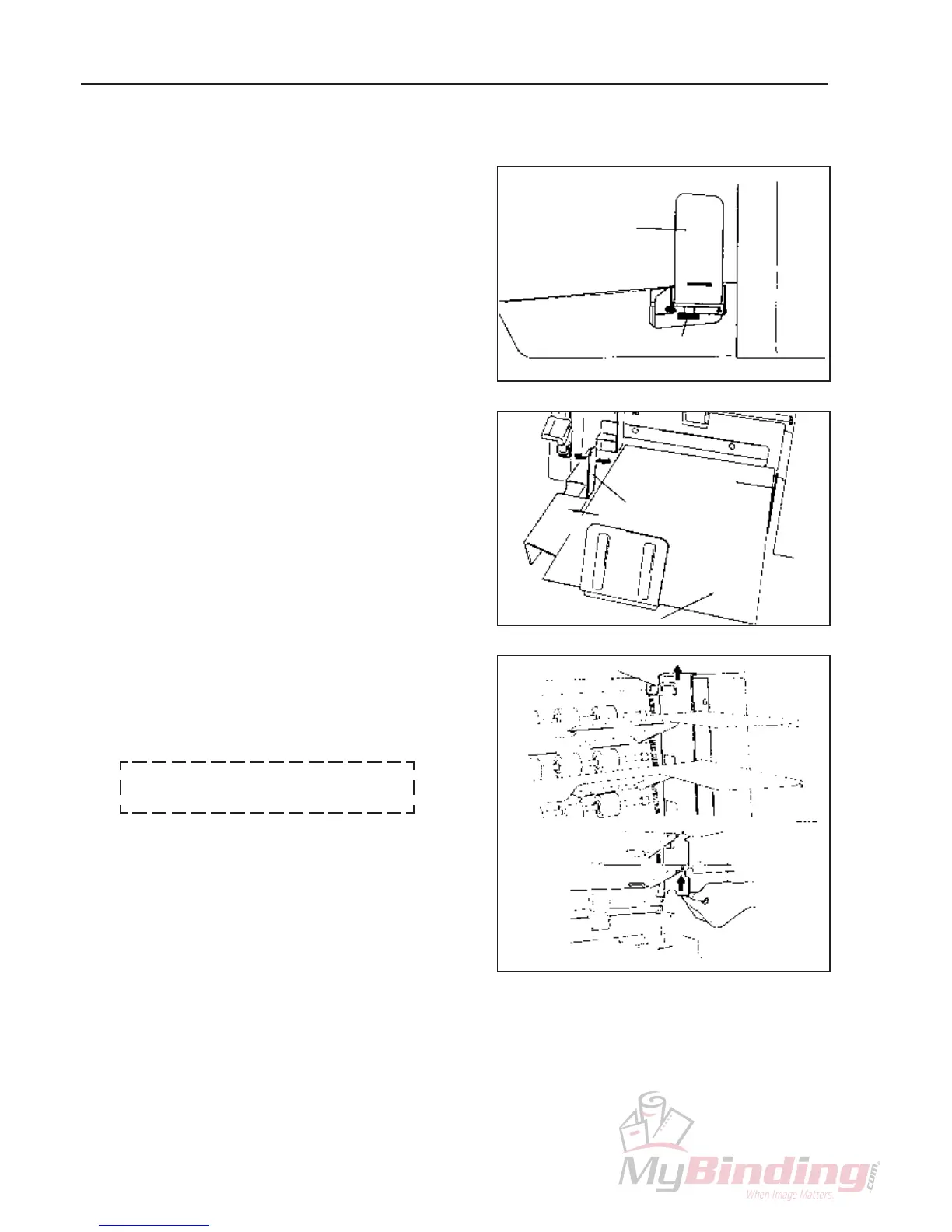

6. Using the DC-6 mini, DC-8 mini
• Tighten the fixing screw and secure the jogger (right).
3 Take out one sheet of the paper on the
paper feed tray and place it on the
paper receiving plate along the jogger
(right).
• Set the jogger (left) about 5 mm from the paper.
4 Move the reference guide to the set
position “A3, LD”.
• Lift the upper and lower positions of the reference
guide manually and place it in the slot (A3, LD).
For the procedures hereafter, refer to
“Procedures” on page 15.
Jogger(right)
FixingScrew
Jogger(right)
Jogger(left)
5mm
Paper
StationaryPlate
Reference
Guide
