Chapter 2 Basic Operation
2. Stacking the Paper
2-1. Before stacking paper
Checking the front/back,top/end of paper
Check the “front/back” and “top/end” of paper when stacking paper on the paper feed tray.
Check for folding misalignment, and check “front/back” and “top/end” of paper when checking the nished
fold after test folding.
When paper is stacked with the gray surface on the obverse side and white surface on the reverse side on
the paper feed tray, and processing is completed in the standard folding mode, the folded paper is as shown
in the gure.

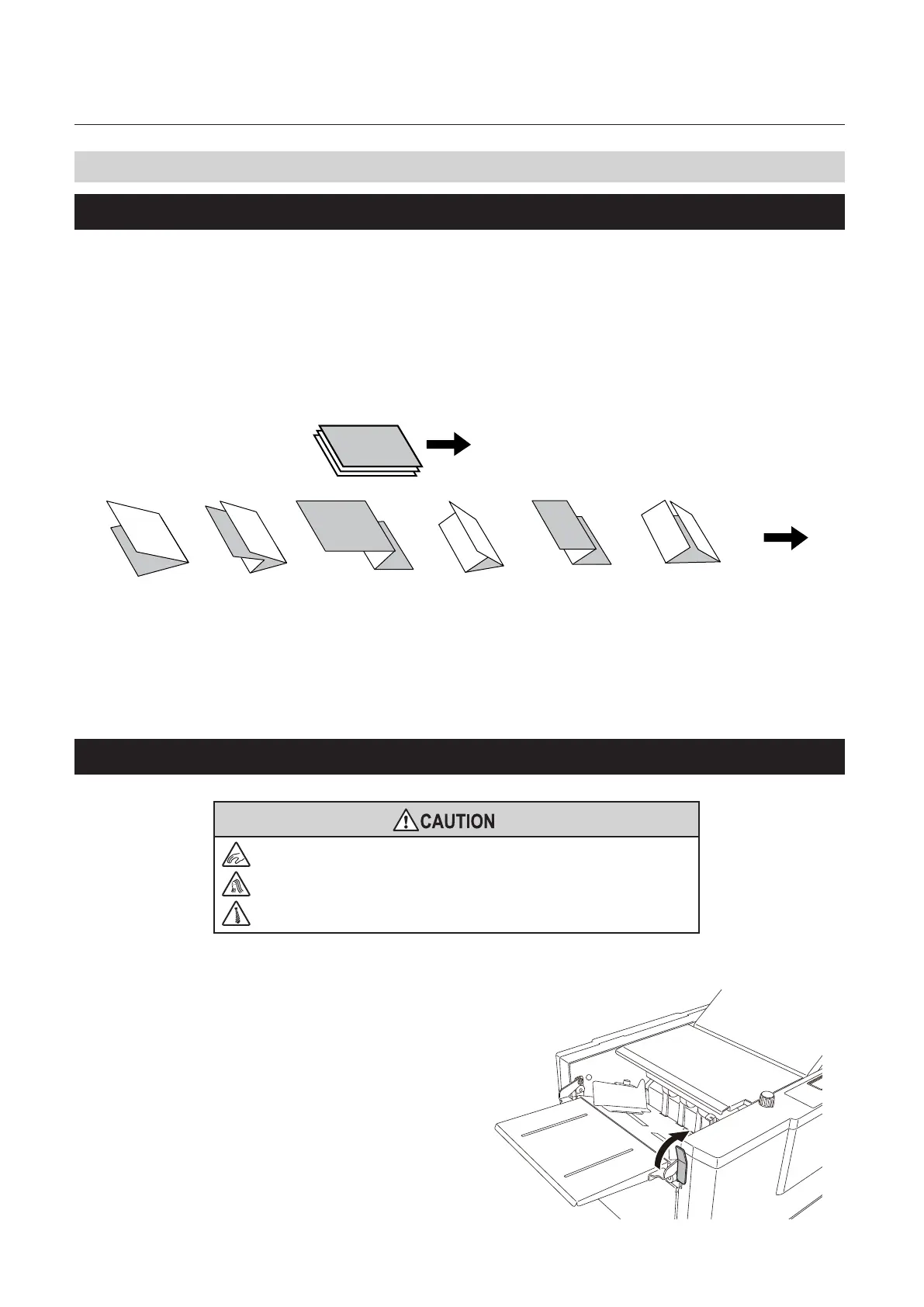

Paper feed direction
Ejection
direction
Single
fold
Double
fold
Irregular
accordion fold-out
Letter
fold
Accordion-
fold
Gate fold
2-2. Stacking paper
Do not put ngers inside during operation.
Keep away long hair, ties, jewelry and loose clothing.
It could cause injury.
Steps 1 and 6 are not necessary with DF-980. Move on to steps 2 to 5.
1
Raise the paper set lever.
The paper feed stand will come down to the
paper stacking position when the paper set
lever is raised.
