DURKOPP ADLER 171 Service Instructions

Maintenance
74 Service Instructions 171/173 - 00.0 - 01/2020

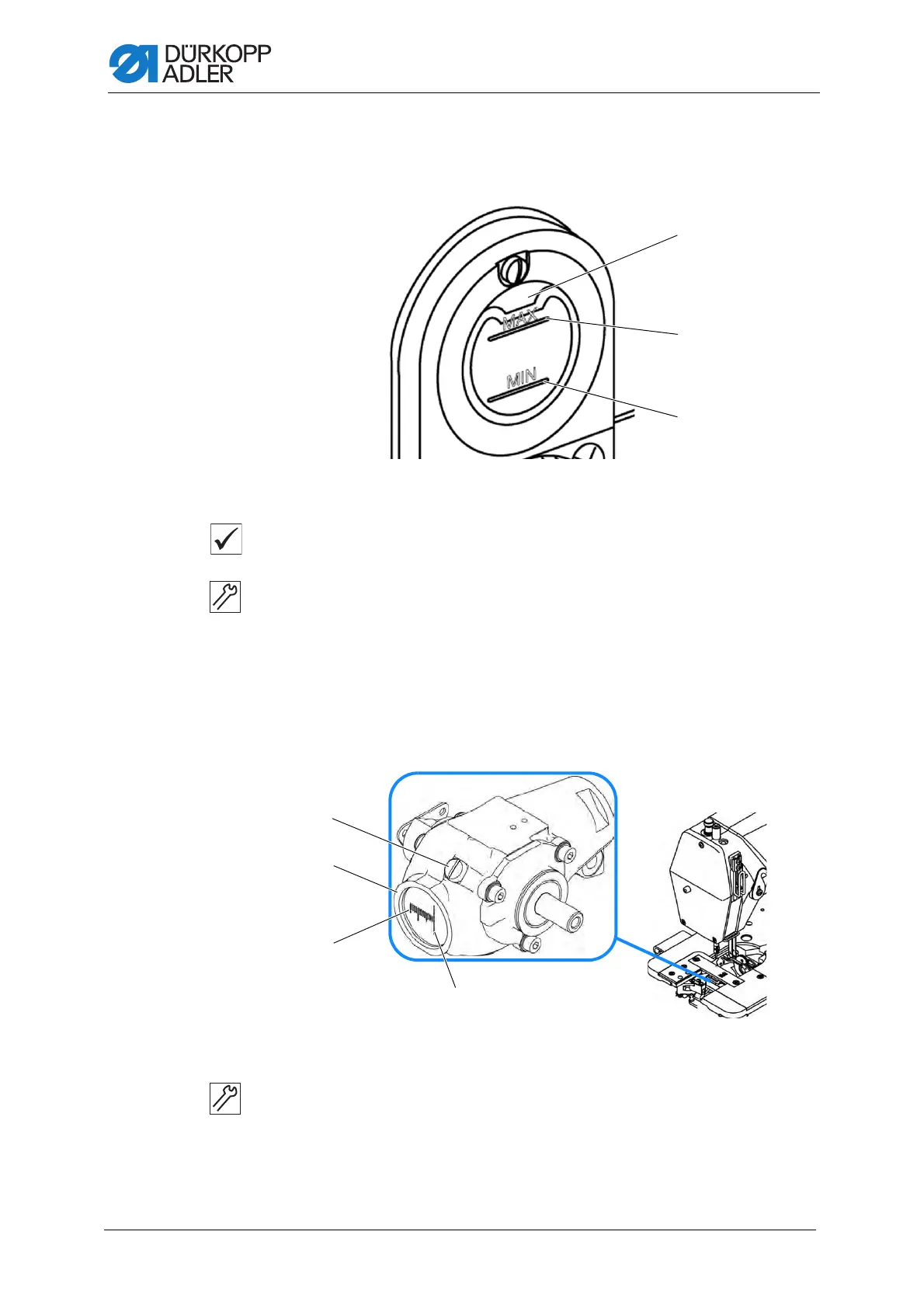

14.2.1 Checking the lubrication of the machine head
Fig. 54: Checking the lubrication of the machine head
Proper setting
The oil level is be between the MIN (3) and the MAX (2) marking.
To top off the oil:
1. Switch off the machine.
2. Fill oil through the refill opening (1) until the oil level reaches the MAX
marking (2).
14.2.2 Checking the hook lubrication
Fig. 55: Checking the hook lubrication
To top off the oil:
1. Switch off the machine.
2. Tilt the machine head.
3. Loosen the screw (1).
(1) - Refill opening
(2) - MAX marking
(3) - MIN marking
①
②
③
(1) - Screw
(2) - Oil reservoir
(3) - MAX marking
(4) - MIN marking
④
①
②
③
