Maintenance
Service Instructions 171/173 - 00.0 - 01/2020 75
4. Add oil up to the MAX marking (3).
5. Tighten the screw (1).
6. Erect the machine head.
14.3 Servicing the pneumatic system
14.3.1 Adjusting the operating pressure
Proper setting
Refer to the Technical data ( p. 85) chapter for the permissible
operating pressure. The operating pressure cannot deviate by more
than ± 0.5 bar.
Check the operating pressure on a daily basis.

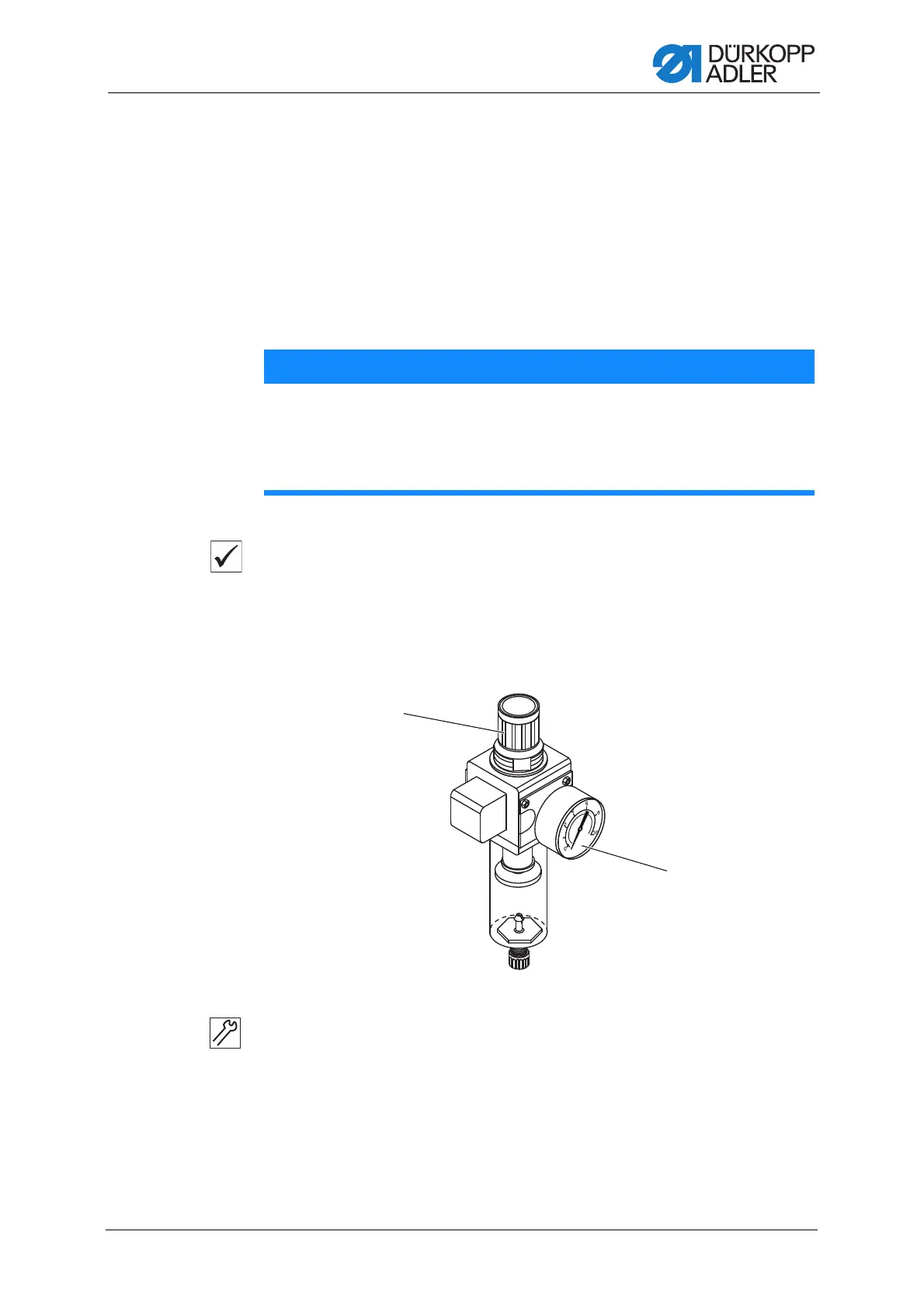

Fig. 56: Adjusting the operating pressure
To adjust the operating pressure:
1. Pull the pressure regulator (1) up.
2. Turn the pressure regulator until the pressure gage (2) indicates
the proper setting:
• Increase pressure = turn clockwise
• Reduce pressure = turn counterclockwise
3. Push the pressure regulator (1) down.
NOTICE
Property damage from incorrect adjustment!
Incorrect operating pressure can result in damage to the machine.
Ensure that the machine is only used when the operating pressure
is set correctly.
(1) - Pressure regulator (2) - Pressure gage
