2.12 Oil lubrication
Caution: Danger of injury !
Oil can cause skin rashes.
Avoid longer skin contact.
After contact wash yourself thoroughly.
ATTENTION !
The handling and disposal of mineral oils is subject to legal
regulations.
Deliver used oil to an authorized collecting s tation.
Protect your environment.
Be careful not to spill any oil.
Oil the sewing unit exclusively with lubricating oil
ESSO SP-NK 10 or an equivalent oil w ith the following specification:
–
Viscosity at 40° C: 10 mm²/s
–
Ignition point: 150° C
SP-NK 10 is available from the DÜRKOPP ADLER AG sales offices
under the following parts numbers:
2-Litre-Container: 9047 000013
5-Litre-Container: 9047 000014

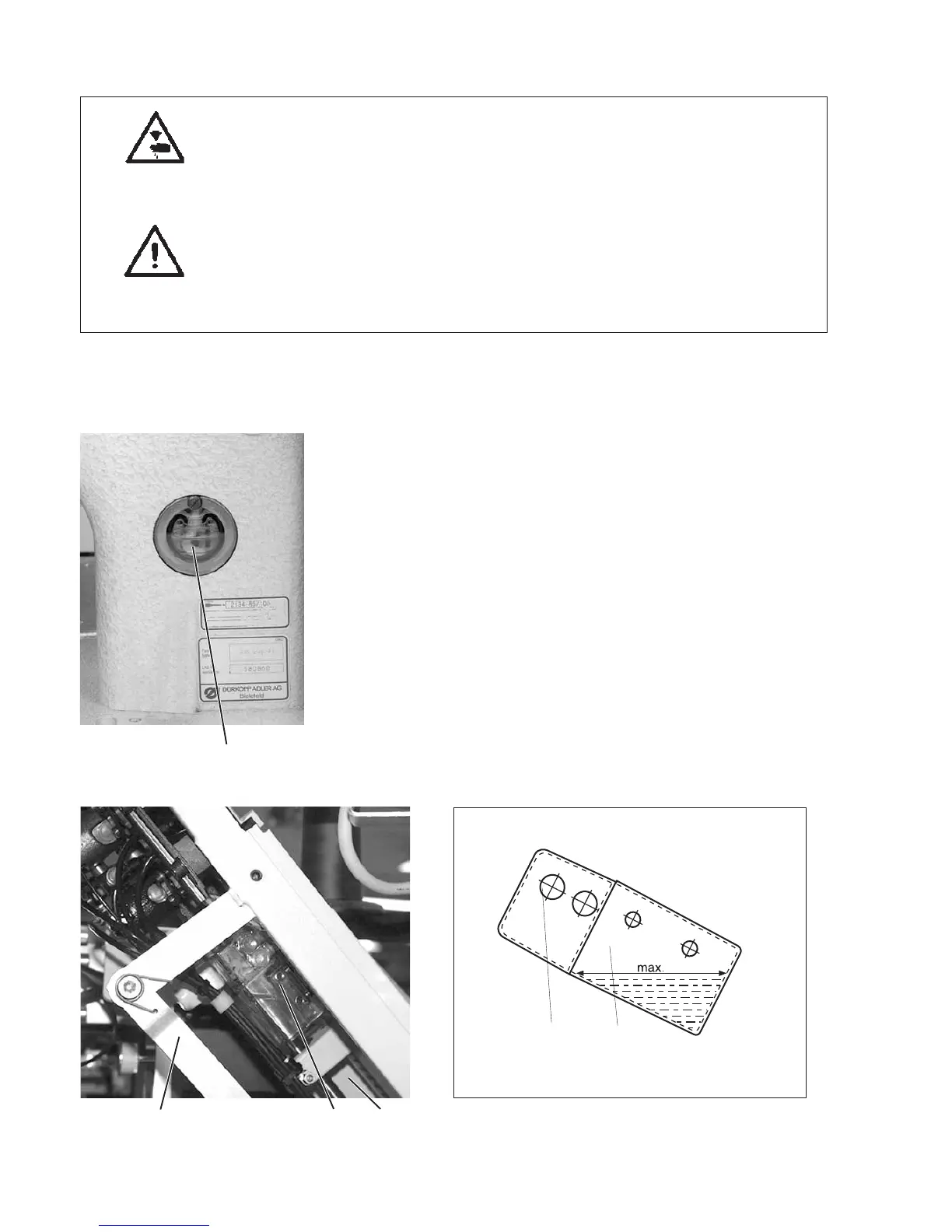

Checking the oil supply in the oil reservoir 3 for lubrication of the
machine head
–
Raise the machine head (see chapter 2.1).
–
The oil level in the oil reservoir 3 must not drop below the marking
“Min”.
–
If necessary, fill up oil up to the marking “Max” through the
drill-hole in the inspection glass.
Checking the oil supply in the oil reservoir 6 for the hook
lubrication
–
Raise the machine head (see chapter 2.1).
Fill the oil reservoir 6 with oil through nipple 5 up to the marking “Max”.
(see sketch).
48
3
5
6
