11.3 Position and closing of the pincers
Standard checking

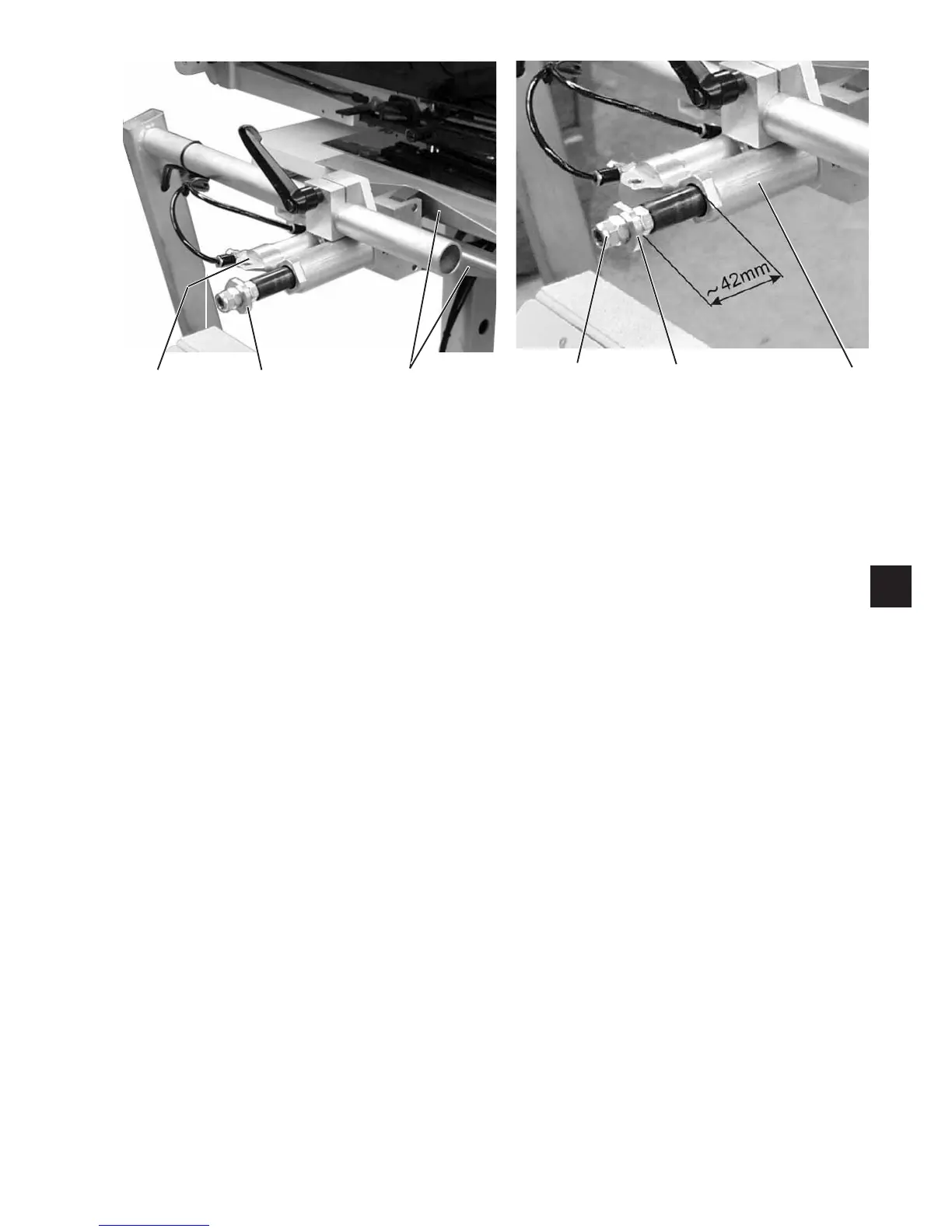

When the cylinder 3 extends, the disc 2 reaches the bushing 4 after
~42mm. This is the front position of the pincers 1
(from this position the pincers closes, when the c yclinder 3 is moving
on, and clamps the material).
Correction
The front position and the closing of the pincers 1 is influenced by the
position of the disc 2.
–
Loosen the nut 5.
–
Adjust the disc 2.
(Reduce the distance between disc and bushing =
clamping pressure increase)
(Increase the distance between disc and bushing =
clamping pressure reduction)
–
Tighten the nut 5.
Hint:
When establishing the pocket program the “Position of the feeding
clamp after sewing” can be determined and adapted to the position of
the stacker pincers.
