10.4 Position of the folder to the needles
Caution: Danger of injury !
Switchthemainswitchoff.
Align the folder as to the needles and to the center knife only with the
sewing unit switched off.
Standard checking

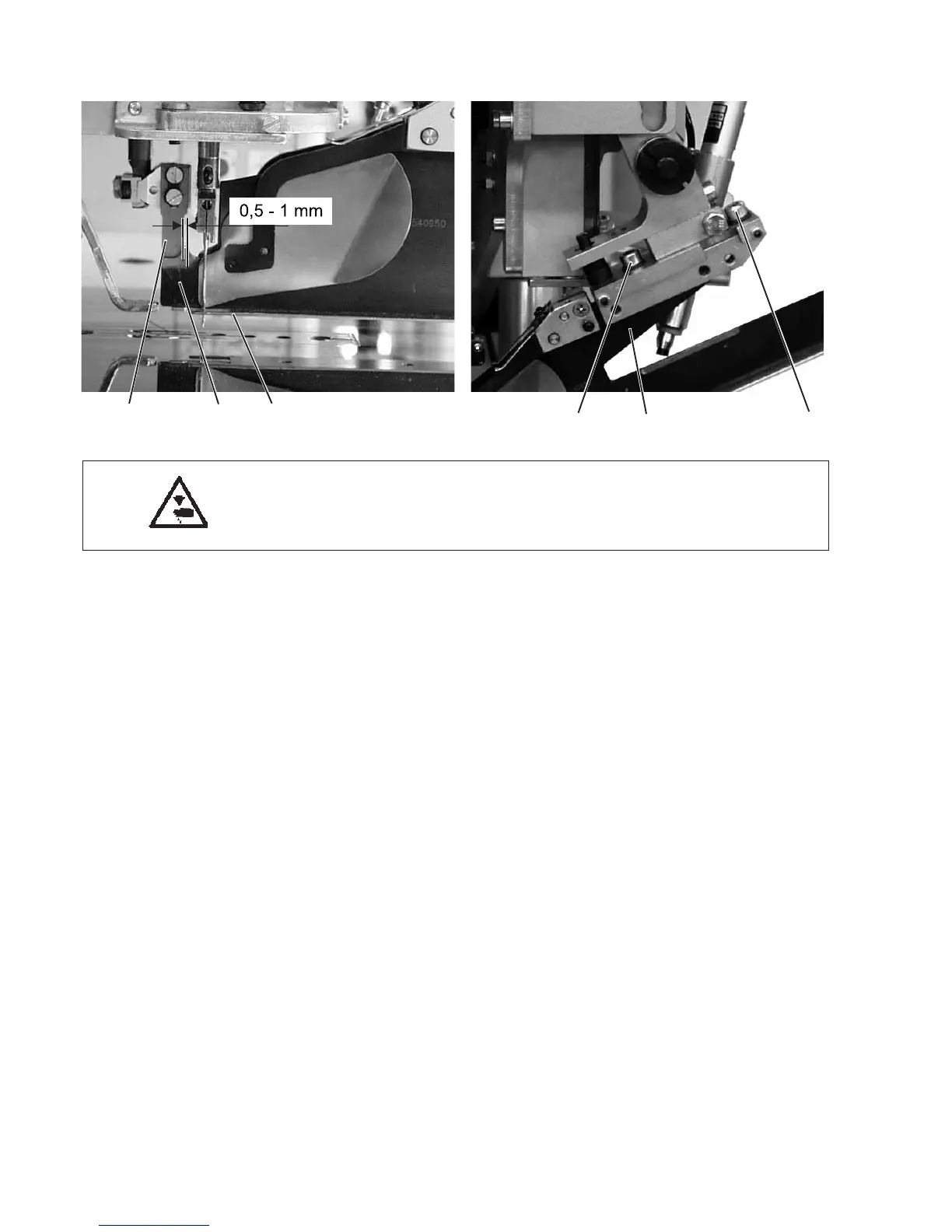

When the folder is properly fastened, the following conditions must be
fulfilled:
When the folder is lowered, the needles must stick in the needle holes
of the folder sole 1 without hindrance (without being pushed out of the
way).
When the center knife 3 enters into the center knife protection 2, the
rear knife edge must be flush with the knife protection.
–
Press the folder down by hand completely.
–
Check the position of the folder sole to the needles and to the
center knife.
Correction
–
Loosen the screws 4 and 6 at the rear.
–
Push the folder holder 5 in sewing direction.
–
Tighten the screws 4 and 6.
76
321
65 4
