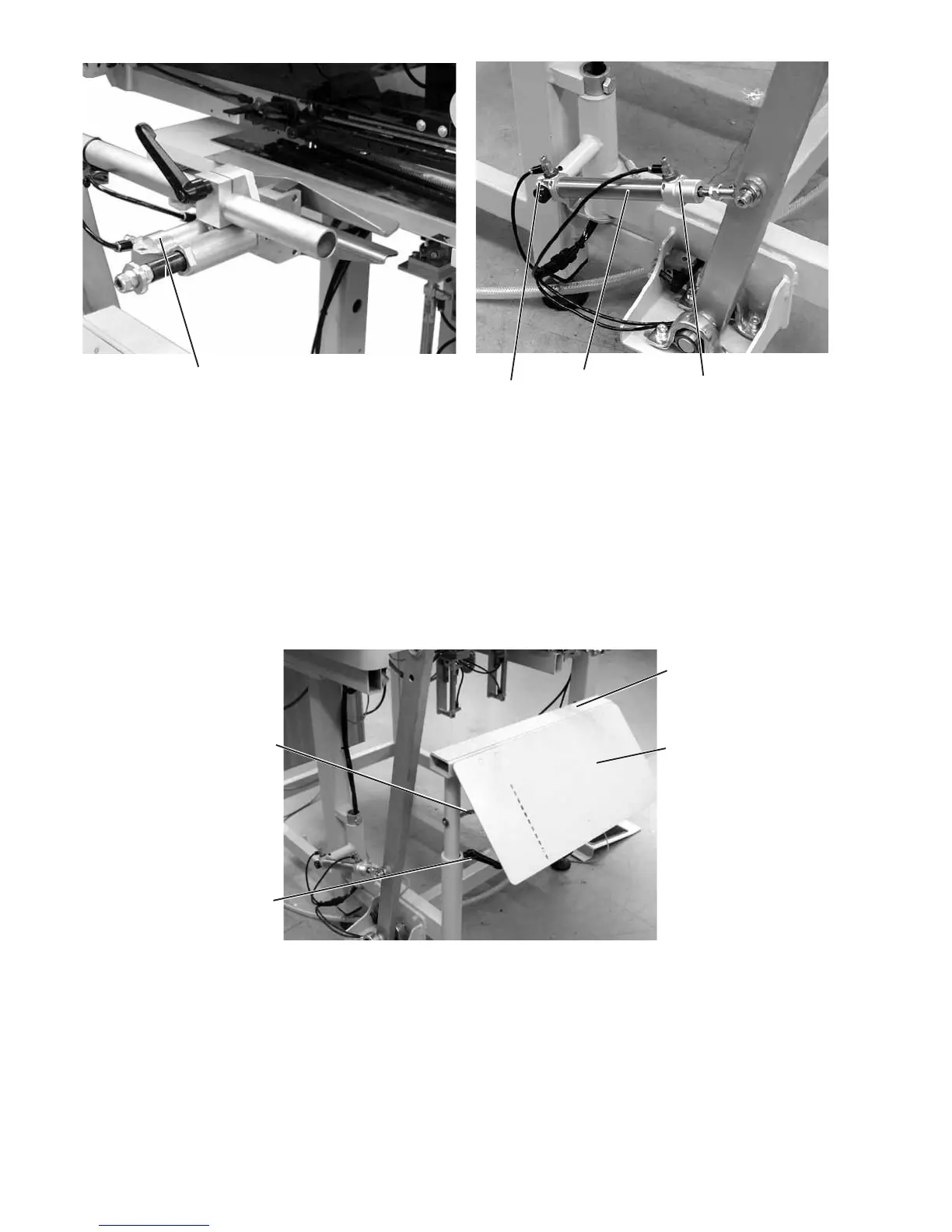

11.4 Cylinder speed
The speed can be set with the throttling valves at the cylinders 1 and 2.
Adjust the end cushioning 7 at the cylinder 2 in such a way that the
lever reaches the end position r apidly, but not abruptly.
11.5 Position of the rest plate
The height of the bow 3 with rest table 4 can be adjusted so that
workpieces of different length and bundles of different thickness can
be stacked.
–
Loosen the clamping lever 5 and adjust the position.
–
Tighten the clamping lever 5.
By swivelling the rest table 4 the deposit surface can be adjusted
(short and long workpieces).
When the position has been found, the locking lever 6 can be inserted
in the corresponding hole in the rest table.
80
1
72 7
6
5
3
4
