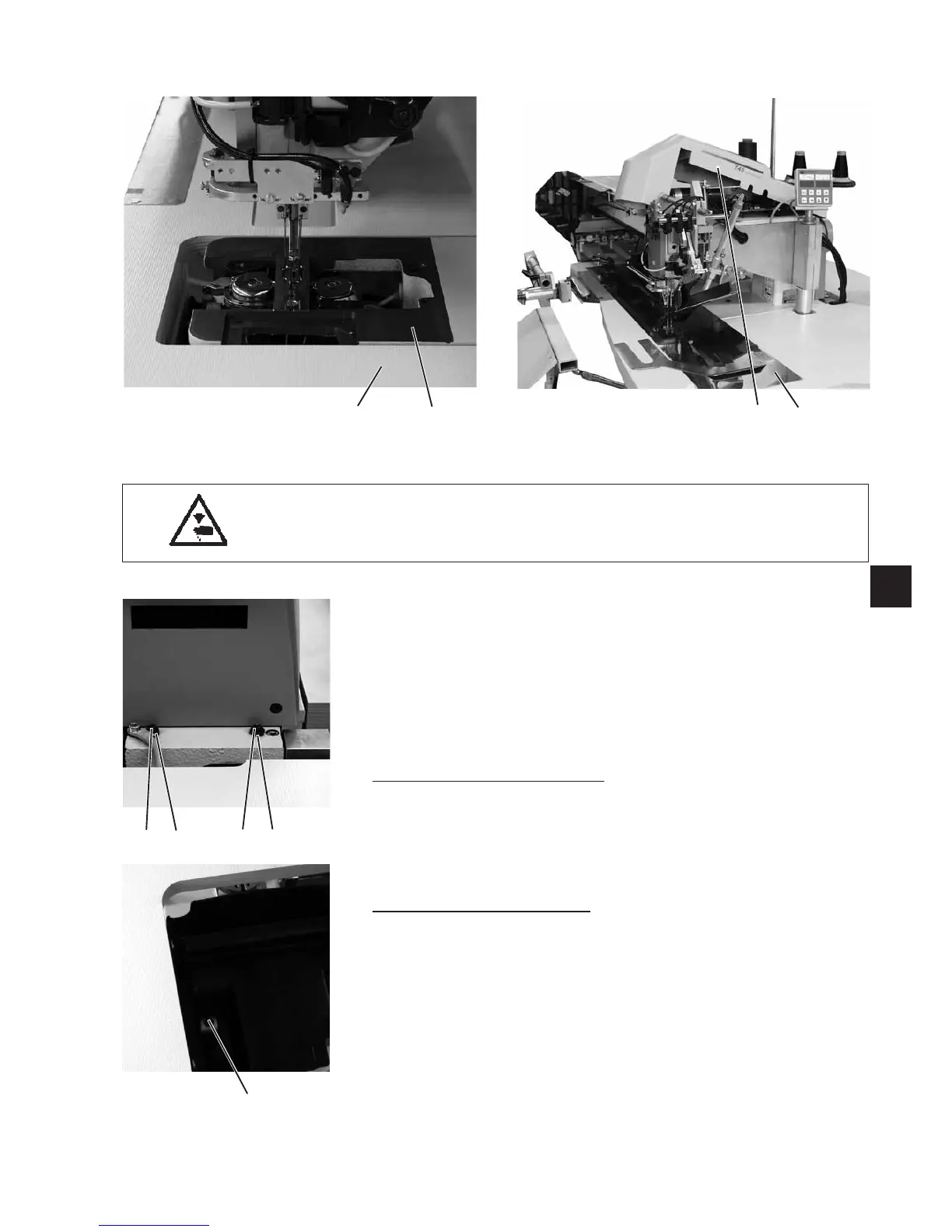

9. Positioning the sewing machine head as to the table top
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the sewing machine head only with the sewing unit switched off.
Standard checking
The non-varnished surface of the base plate 1 of the sewing machine
head must be at the same level as the table top 2 over its whole length.
–
Push the feeding clamps to the back.
–
Lift the sliding sheet 3 at the front and swivel it to the left.
–
Check the height of the base plate.
Correction
Sewing machine head, right side
–
Remove the cover 4.
–
Loosen the counternuts 6 and 8.
–
Turn the screws 5 and 7 equally with an Allen wrench.
–
Tighten the counternuts 6 and 8.
Sewing machine head, left side
–
Swing the sewing machine head upwards (see chapter 2.1).
–
Turnthescrew9withanAllenkey.
–
Swing the sewing machine head back.
71
3
21
43
87 65
9
